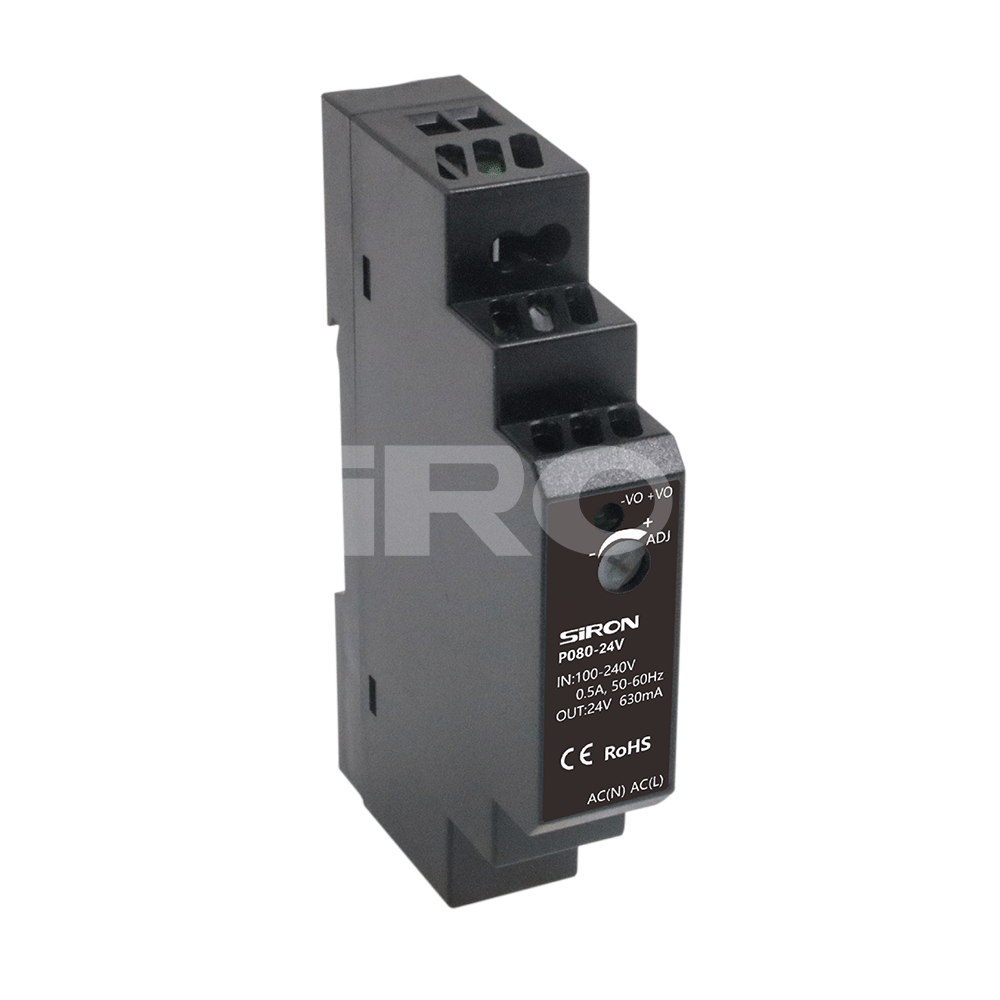

P080
SiRON
8504401400
Order
| Model | Voltage |
| P080 | 24V |
Product Attributes
| Model | lnput voltage range | Power | Output voltage/current | Efficiency |
| P080-5V | 85-264VAC (277VAC usable) 120-370VDC (390VDC usable) | 12W | 5V/2.4A | 80% |
| P080-12V | 15W | 12V/1.25A | 85% | |
| P080-15V | 15W | 15V/1A | 85.5% | |
| P080-24V | 15.2W | 24V/0.63A | 86% | |
| P080-48V | 15.4W | 48V/0.32A | 87% |
| Model | P080 | |
| @230VAC) Electric shock | 25A | |
| Overcurrent Protection | range | ≥110%lo |
| range | self-recovery | |
| Short circuit protection | Hiccup type, sustainable short circuit, self-healing | |
| Isolation withstand voltage | Input-output: 4kVAC(Test for 1 minute, leakage current <10mA) | |
| Operating temperature | -40℃to+70℃ | |
| performance | EMI | CISPR32/EN55032 Class B,IEC/EN61000-3-2 ClassA |
| EMS | EC/EN 61000-4-2,Contac±4kv IEC/EN61000-4-310V/m, IEC/EN61000-4-610 Vr.m.s,IEC/EN61000-4-4,5,11 | |
| Safety standard | UL62368-1,IEC62368-1,EN62368-1,IEC/EN61010-1,IEC/EN61558-1,IEC60335-1 | |
| Shell material | Input-output: 4kVAC(Test for 1 minute, leakage current <10mA) | |
| Wiring diameter | 24-12AWG | |
| Connector torque | Max 0.4N.m | |
| Rail type | TS35 | |
| 17.5×90×58 | ||
