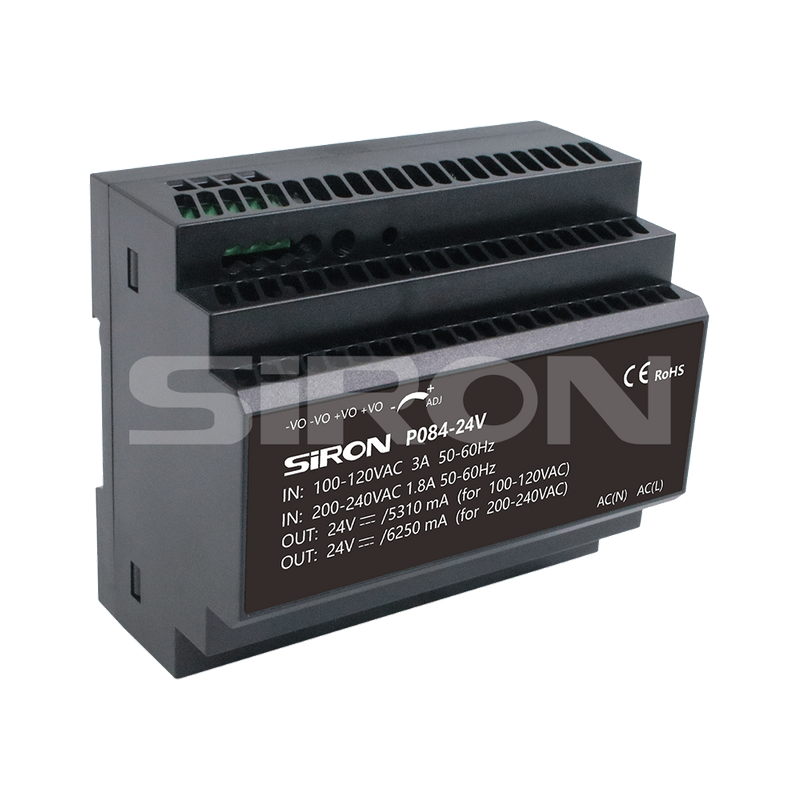

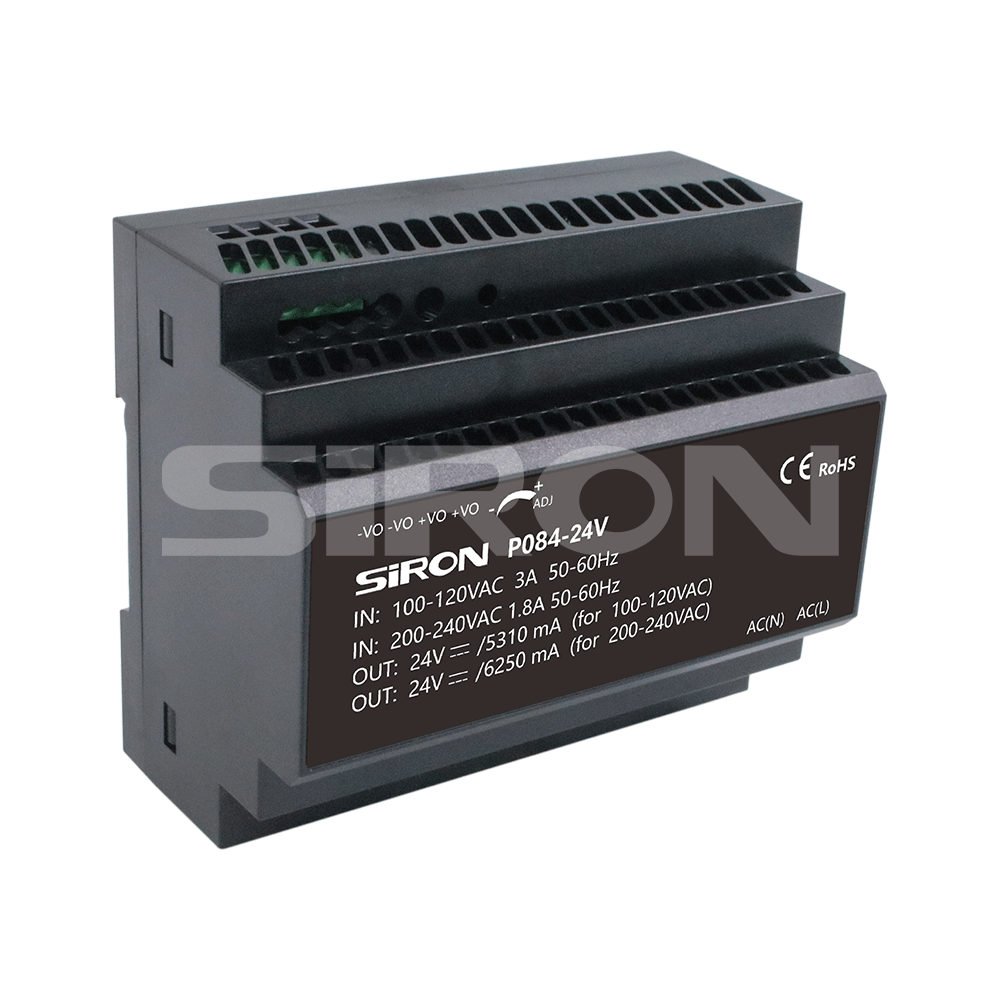

SiRON P084 Series 150W Rail Type Switching Power Supply

Name: SiRON P084 Series 150W Rail Type Switching Power Supply
Brand: SiRON
Rating: 5.0 (80 reviews)

Features

AC and DC dual-purpose (input voltage of the same terminal), 4000VAC high isolation with stand voltage (input-output) industrial-grade product technology design;
Overvoltage level lll (complies with EN61558-1), low standby power consumption, high efficiency;
Low ripple noise, output short circuit, overcurrent, overvoltage protection, can be installed on TS35x7.5/TS35x15;

Product Description

Order

Model	Voltage
P084	24V

Product Attributes

Model	Input voltage range	Power	Output voltage/current	Efficiency
P084-12V	85-264VAC (277VAC Available) 120-370VDC (390VDC Available)	135.6W	12V/11.3A	88%
P084-15V		142.5W	15V/9.5A	89%
P084-24V		150W	24V/6.25A	90%
P084-48V		153.6W	48V/3.2A	90%

Model		P084
@230VAC) Electric shock		70A
Overcurrent Protection	range	≥ 105 %lo
	range	self-recovery
Short circuit protection		Hiccup type, sustainable short circuit, self-healing
Isolation withstand voltage		Input-output: 4kVAC(Test for 1 minute, leakage current <10mA)
Operating temperature		-30℃to+70℃
performance	EMI	CIS P R 3 2 / E N 5 5 0 32 Cla ss B ,IE C / E N 6 1 0 0 0 - 3 -2 Cla ss A
	EMS	EC/EN 61000-4-2,Contac±4kv IEC/EN61000-4-310V/m, IEC/EN61000-4-610 Vr.m.s,IEC/EN61000-4-4,5,11
Safety standard		UL/EN/IEC62368,IEC/EN60335,IEC61558,UL61010
Shell material		Stepped flame-retardant and heat-resistant plastic shell
Wiring diameter		24-12AWG
Connector torque		Max 0.4N.m
Rail type		TS35
1 0 5 × 9 0 × 5 5 . 4
