| Quantity: | |
|---|---|

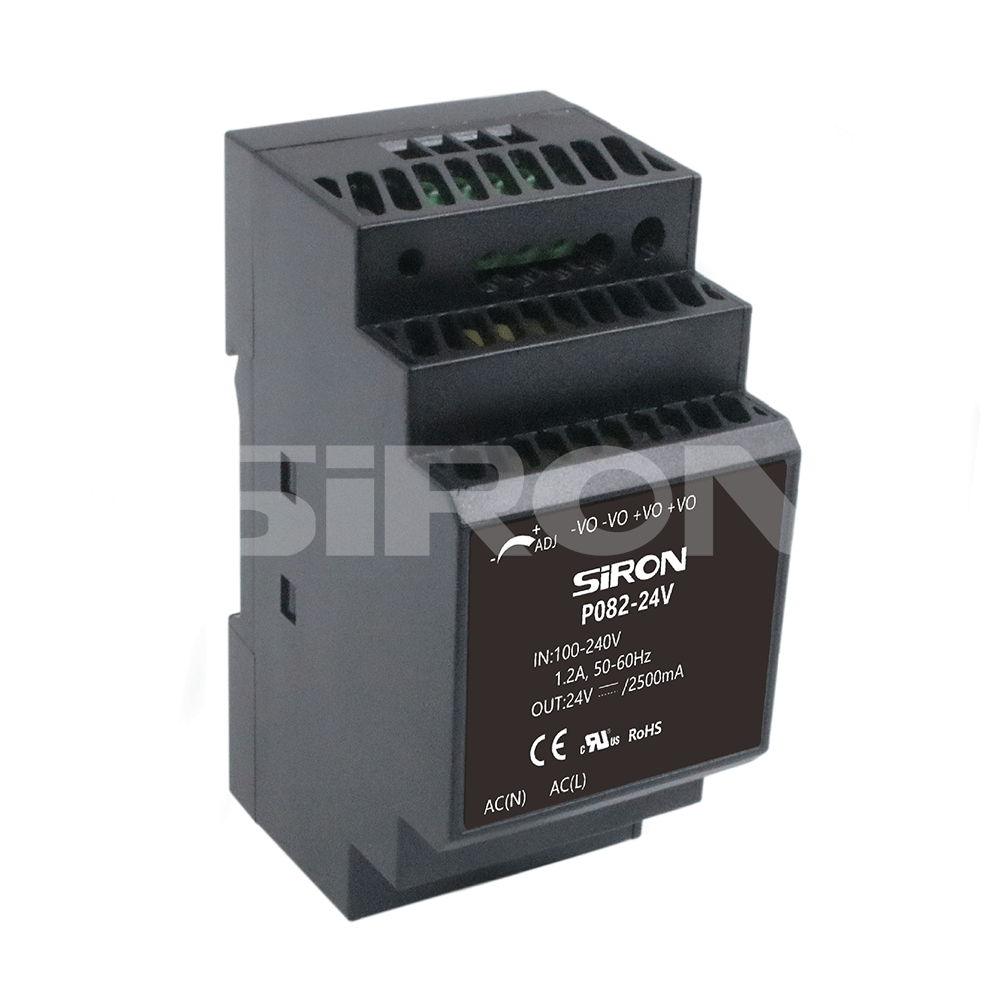

P082
SiRON
8504401400
Order
| Model | Voltage |
| P081 | 24V |
Product Attributes
| Model | Input voltage range | Power | Output voltage/current | Efficiency |
| P082-5V | 85-264VAC/ 120-370VDC | 32.5W | 5V/6.5A | 84% |
| P082-12V | 54W | 12V/4.5A | 88% | |
| P082-15V | 60W | 15V/4.0A | 89% | |
| P082-24V | 60W | 24V/2.5A | 90% | |
| P082-48V | 60W | 48V/1.25A | 91% |
| Model | P082 | |
| @230VAC) Electric shock | 60A | |
| Overcurrent Protection | range | ≥120%lo |
| range | self-recovery | |
| Short circuit protection | Hiccup type, sustainable short circuit, self-healing | |
| Isolation withstand voltage | Input-output: 4kVAC(Test for 1 minute, leakage current <10mA) | |
| Operating temperature | -40℃to+70℃ | |
| performance | EMI | CISPR32/EN55032 Class B |
| EMS | EC/EN 61000-4-2,Contac±4kv IEC/EN61000-4-310V/m, IEC/EN61000-4-610 Vr.m.s,IEC/EN61000-4-4,5,11 | |
| Safety standard | UL62368-1,IEC62368-1，EN62368-1 | |
| Shell material | Input-output: 4kVAC(Test for 1 minute, leakage current <10mA) | |
| Wiring diameter | 24-12AWG | |
| Connector torque | Max 0.4N.m | |
| Rail type | TS35 | |
| 52×92.66×58 | ||
