P173-3
SiRON
8504401400
Order

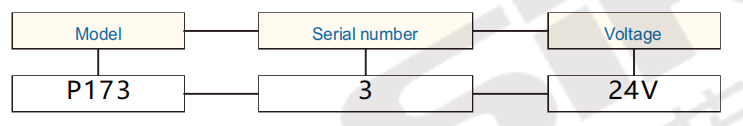

Selection reference
| Model | Rated output | Type | (uF) Maximum capacitiveload | ||
| Power | Voltage/current | Voltage adjustable range | |||
| P173-3-24 | 480W | 24V/20A | 24-28V | 95% | 20000 |
| P173-3-36 | 36V/13.3A | 36-42V | 95.3% | 13000 | |
| P173-3-48 | 48V/10A | 48-56V | 95.6% | 10000 | |
Product Attributes
| Model | P173-3series | |
| (@480VAC) Electric shock | Cold Start，3A | |
| Overcurrent Protection | Constant current protection, self-recovery | |
| Short circuit protection | Long-term short-circuit protection, self-recovery | |
| Isolation withstand voltage | Input - Output: 4 kVA C, input P E: 2.5 kVA C, output P E: 0.5 kVA C, output DC O K: 0.5 kVA C (Test for 1 minute, leakage current < 10 m A) | |
| Operating temperature | -30℃to+70℃ | |
| E M C performance | EMI | CISPR32/EN55032 Class A and Class B; IEC/EN61000-3-2 Class A and Class D;EN61000-3-3 |
| EMS | IEC/EN61000-4-2 Contact ±8KV；IE C / E N 6 1 0 0 0 - 4 -3 2 0 V / m IEC/EN61000-4-4 +2KV/±4KV；IEC/EN61000-4-6 20 Vr.m.s IEC/EN61000-4-5/11；MS-SOP-DQC-007 | |
| Safety standard | IEC/EN/UL/BS EN62368-1,UL61010-1,UL508,IEC60079-0, IEC60079-7,IEC60079-15,EN60335-1,EN62477-1,ANSI/ISA71.04-2013 | |
| Dimensions | 1 2 4 × 8 0 × 1 2 7 | |
Outline
Note:
A D J: Adjustable output resistance connection range: Input: 22 - 10 A WG; Output: 24V 14 - 10 A WG; 3 6V 1 6 - 1 0 A W G ; 4 8V 1 8 - 1 0 A W G Signal: 2 2 - 1 6 A W G Input Terminal Tightening Force: Max 0.5 N-m Output Terminal Tightening Force: Max 0.5 Nm Rail Type: TS 3 5, Rails need to be grounded. Unspecified tolerance: ± 1.001 0, 1.1 at any one position must be connected to the ground.
