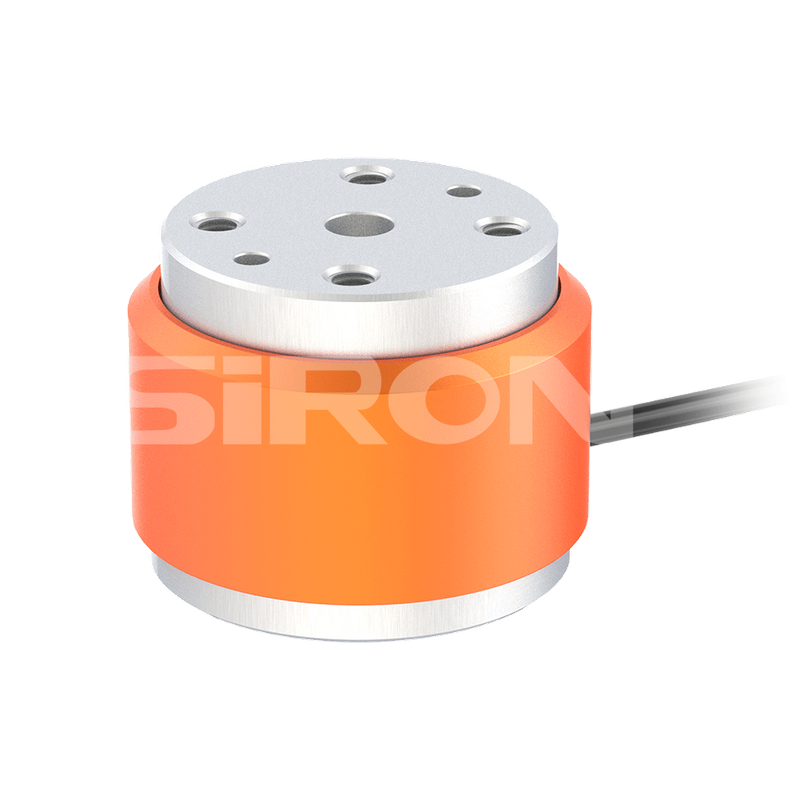

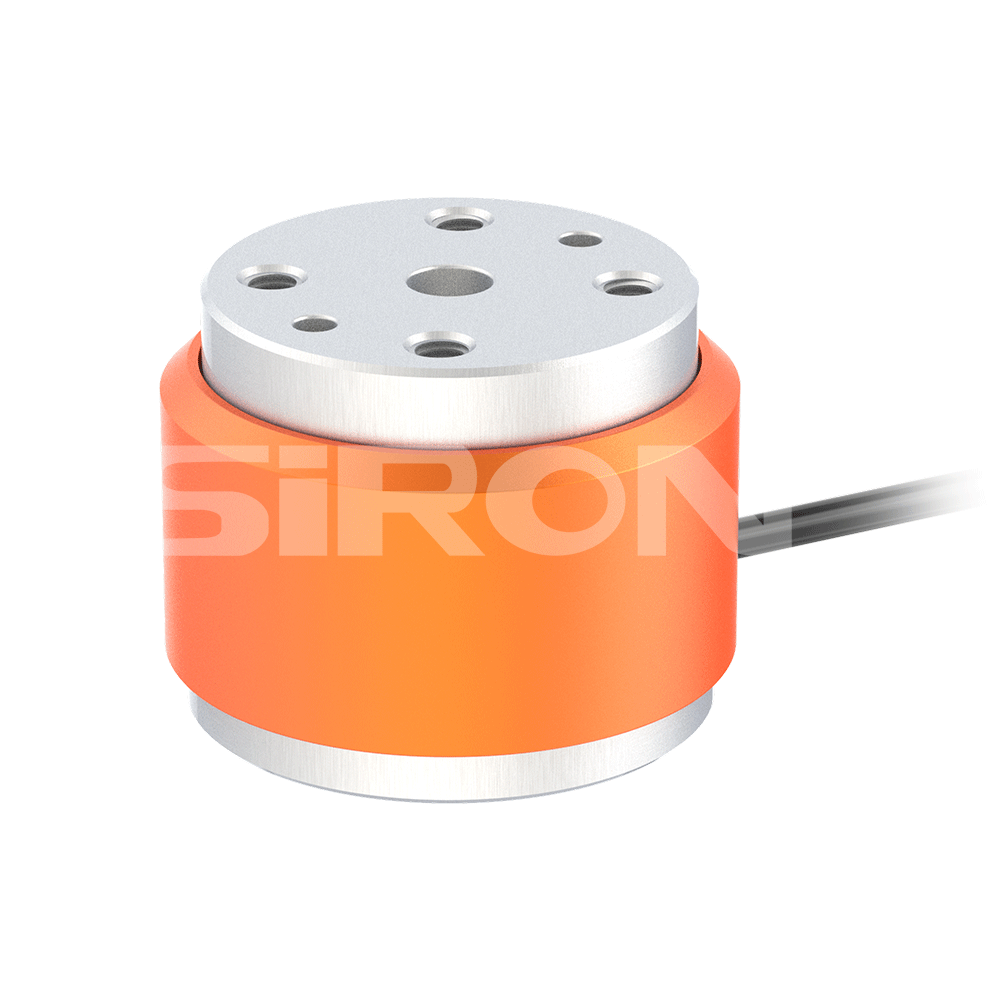

SiRON K103-3 Series Static Torque Sensor High Precision

Name: SiRON K103-3 Series Static Torque Sensor High Precision
Brand: SiRON
Rating: 5.0 (57 reviews)

Features:

* Small size, flange structure is easy to install;
* Stainless steel/aluminum alloy structure, high precision, good stability;
* It is mainly used for torque measurement of static and non-continuous rotation;
* Widely used in static torque testing instruments, torque wrenches and other torque testing equipment.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K103-3 Series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Static torque sensor high precision easy installation testing static torque Small size

Product Description

About selection

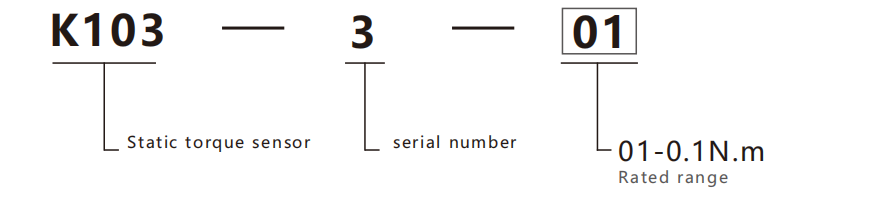

Selection example: K13-3-01 indicates the K103 series, serial number 3, Rated range 0.1N.m

Rated range

Code	01	02	05	1	2	3	5	10
Rated range	0.1N.m	0.2N.m	0.5N.m	1N.m	2N.m	3N.m	5N.m	10N.m

Specifications

Name	Static torque sensor
Model	K103-3-01	K103-3-02	K103-3-05	K103-3-1	K103-3-2	K103-3-3	K103-3-5	K103-3-10
Capacity	0.1N.m	0.2N.m	0.5N.m	1N.m	2N.m	3N.m	5N.m	10N.m
Sensitivity	1.5±10%mV/V
Zero balance	±0.02mV/V
Creep (30min)	≤0.05%F.S.
Non-linearity	≤0.1%F.S.
Hysteresis	≤0.05%F.S.
Repeatability	≤0.05%F.S.
Input/Output impedance	Input resistance：350±5Ω;Output resistance：350±5Ω
Temp.effect on output	0.05%F.S./10℃
Temp.effect on zero	0.05%F.S./10℃
Insulation resistance	≥5000MΩ/100V(DC)
Recommended excitation	5～15V
Maximum excitation	20V
Compensated Temp Range	-10~60℃
Operating Temp Range	-20~80℃
Safe/Ultimate overload	Safe overload: 120% F.S.;" Ultimate overload: 150% F.S.
Cable size	Φ3x3000mm
Weight	0.2kg
Material	Aluminium alloy
