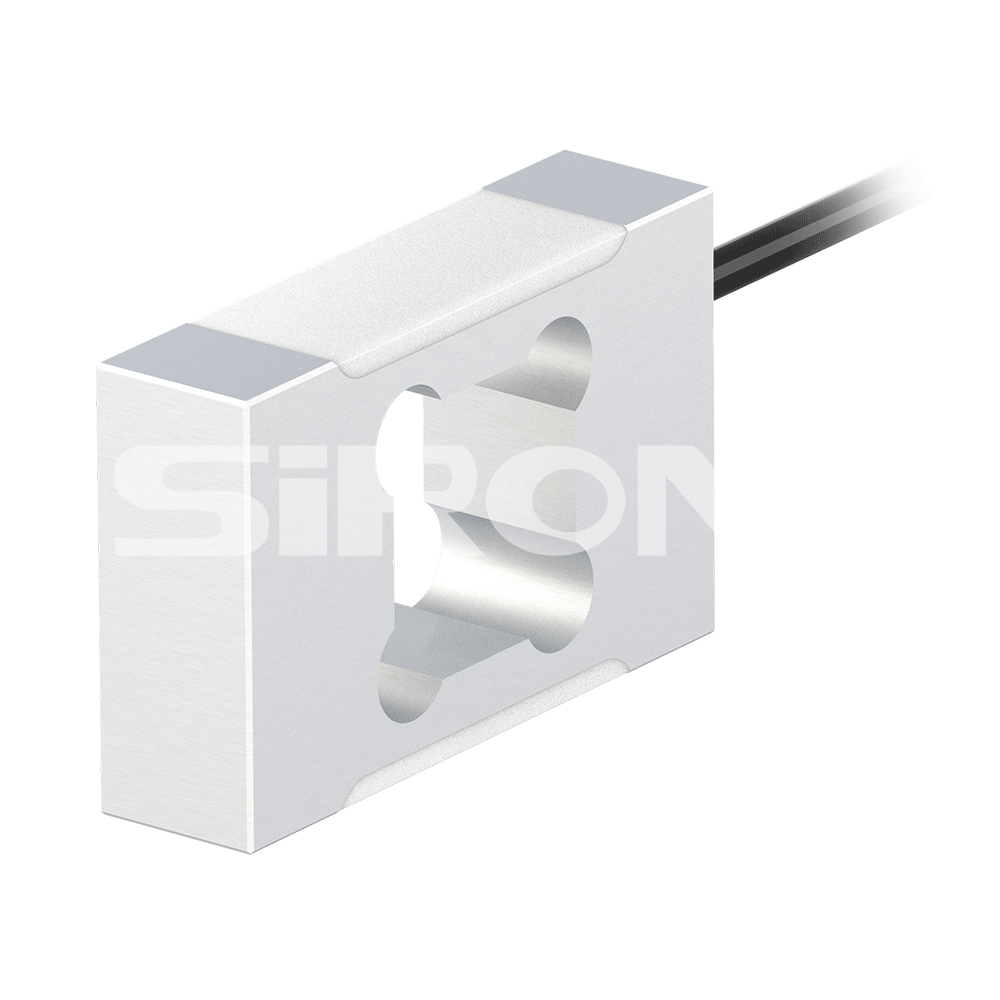

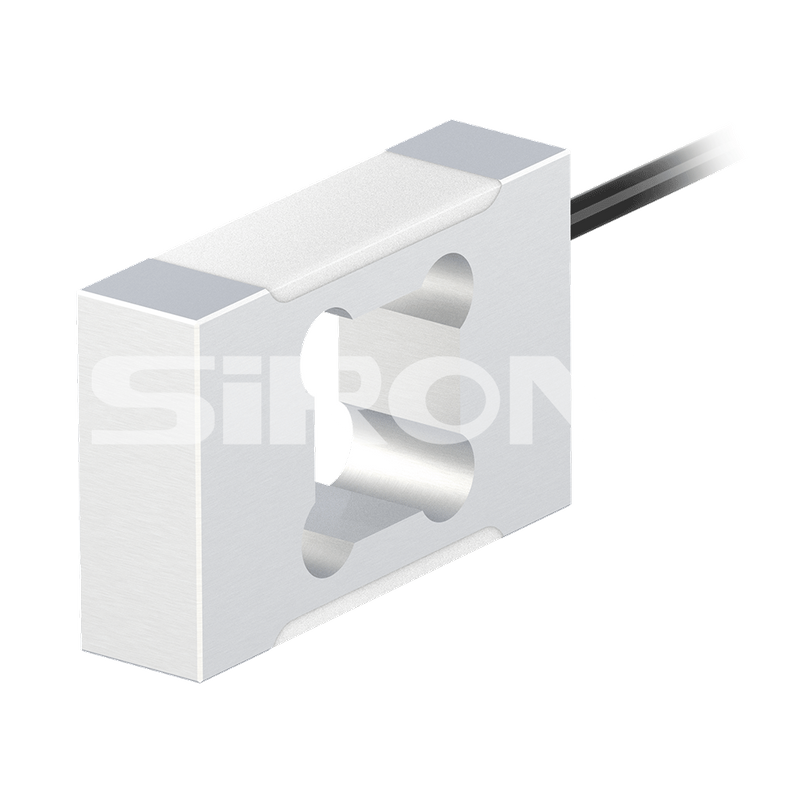

SiRON K102-4 Series Load Cell/ Weighing Sensor

Name: SiRON K102-4 Series Load Cell/ Weighing Sensor
Brand: SiRON
Rating: 5.0 (94 reviews)

Features:

* High precision, strong anti-biased load ability;
* Used in table scales, ingredients weighing, packaging weighing, electronic balance, industrial measurement, etc.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K102-4 series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Load Cell/Weighing Sensor high precision Small size Strong anti-bias-load capacity customizable

Product Description

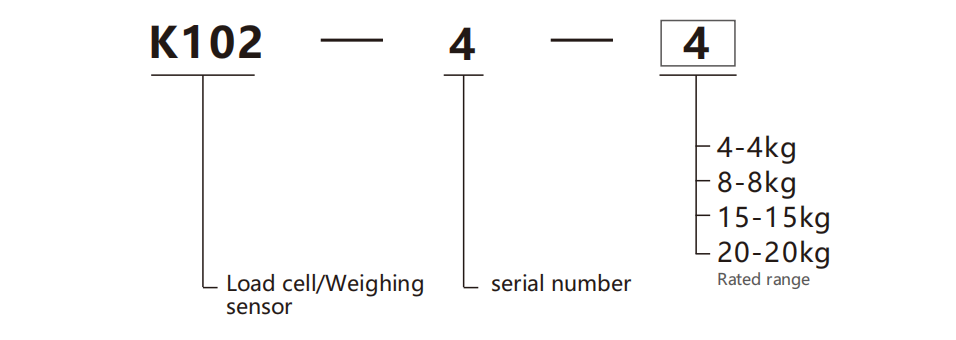

About selection

Selection example: K102-4-4 indicates the K102 series, serial number 4, rated range 4kg.

Code	4	8	15	20
Rated range	4kg	8kg	15kg	20kg

Specifications

Name	Load cell/weighing sensor
Model	K102-4-4	K102-4-8	K102-4-15	K102-4-20
Capacity	4kg	8kg	15kg	20kg
Sensitivity	2.0±10%mV/V
Zero balance	±0.02mV/V
Creep (30min)	≤0.017%F.S.
Non-linearity	≤0.0166%F.S.
Hysteresis	≤0.0166%F.S.
Repeatability	≤0.015%F.S.
input/Output impedance	Input resistance: 410 ± 20 Ω; Output resistance: 350 ± 10 Ω
Temp.effect on output	0.017%F.S./10℃
Temp.effect on zero	0.02%F.S./10℃
Insulation resistance	≥5000MΩ2/100V(DC)
Recommended excitation	5~12V
Maximum excitation	15V
Safe/Ultimate overload	Safe overload: 150% F.S.; Maximum overload: 200% F.S.
Compensated Temp Range	-10～40℃
Operating Temp Range	-10～50℃
Cable size	Φ4×1600mm
Weight	0.2kg
Material	Aluminium alloy
Maximum pan size	600×500mm
