SiRON K102-1series Load Cell/Weighing Sensor

Name: SiRON K102-1series Load Cell/Weighing Sensor
Brand: SiRON
Rating: 5.0 (39 reviews)

Features:

* High precision, strong anti-biased load ability;

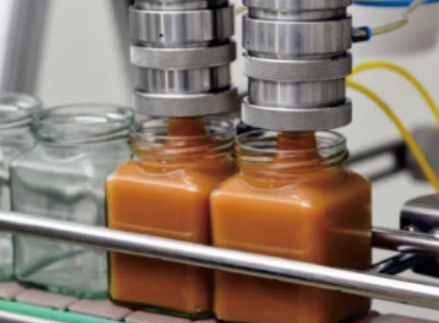

* Used in table scales, ingredients weighing, packaging weighing, electronic balance, industrial measurement, etc.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K102-1series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Load Cell/Weighing Sensor high precision Small size Strong anti-bias-load capacity customizable

Product Description

About selection

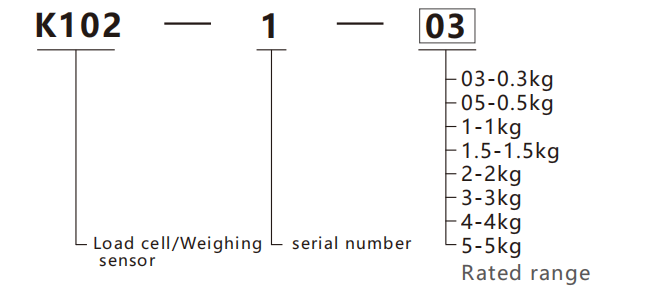

Selection example: K102-1-03 indicates the K102 series, serial number 1, rated range 0.3kg.

Specifications

Name	Load cell/weighing sensor
Model	K102-1-03	K102-1-05	K102-1-1	K102-1-1.5	K102-1-2	K102-1-3	K102-1-4	K102-1-5
Capacity	0.3kg	0.5kg	1kg	1.5kg	2kg	3kg	4kg	5kg
Sensitivity	0.3/0.5kg:1.0±10%mV/V;1～5kg:2.0±10%mV/V
Zero balance	±0.02mV/V
Creep (30min)	≤0.0166%F.S.
Non-linearity	≤0.015%F.S.
Hysteresis	≤0.015%F.S.
Repeatability	≤0.015%F.S.
nput/Output impedance	input resistance :300±4Ω;output resistance: 300±4Ω
Temp.ef fect on output	0.017%F.S./10℃
Temp.effect on zero	0.02%F.S./10℃
Insulation resistance	≥5000MΩ/100V(DC)
Recommended excitation	5~15V
Maximum excitation	20V
Safe/Ultimate overload	Safe Overload: 150%F . S . ;Ultimate Overload: 200%F . S .
Compensated Temp Range	-10～40℃
Operating Temp Range	-25～70℃
Cable size	Φ4×3000mm
Weight	0.1kg
Material	aluminium alloy
