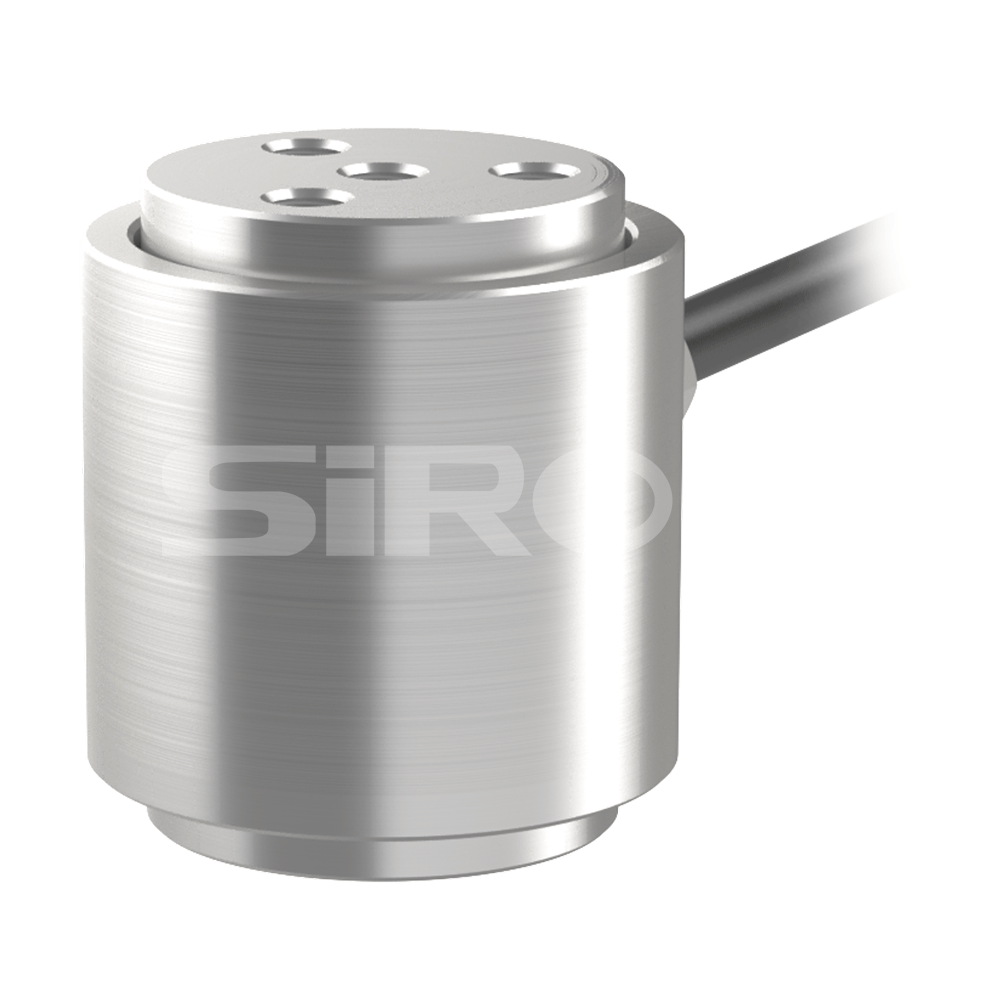

SiRON K101-6 Series Tensile-compressive Force Sensors

Name: SiRON K101-6 Series Tensile-compressive Force Sensors
Brand: SiRON
Rating: 5.0 (38 reviews)

Features:

* High accuracy, suitable for pressure and tension testing;

* Can produce small range sensors; It can realize anti-overload in structure;
* Used for inserting and pulling force test, hook scale, hopper scale, belt scale, proportioning scale, push tension meter, testing machine,

textile machinery, automation control, industrial measurement, etc.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K101-6 Series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Tensile-compressive force sensors High accuracy Dual-purpose for tension and compression High stability

Product Description

About selection

Example of Model Selection: K101-6-20 indicates the K101 series, with a serial number of 6 and a rated range of 20N.

Specifications

Name	Tensile-compressive force sensors
Model	K101-6-20	K101-6-50	K101-6-100	K101-6-200	K101-6-300	K101-6-500	K101-6-1000	K101-6-2000
Capacity	20N	50N	100N	200N	300N	500N	1000N	2000N
Sensitivity	2.0±10%mV/V
Zero balance	±0.02mV/V
Creep(30min)	≤0.05%F.S.
Non-linearity	≤0.05%F.S.
Hysteresis	≤0.05%F.S.
Repeatability	≤0.05%F.S.
nput/Output impedance	Input resistance: 650/350±10Ω; Output resistance: 650/350±100
Temp.effect on output	0.05%F.S./10℃
Temp.effect on zero	0.05%F.S./10℃
Insulation resistance	≥5000MΩ/100V(DC)
Recommended excitation	5～12V
Maximum excitation	15V
Safe/Ultimate overload	Safe overload: 150% F.S.; Ultimate overload: 200% F.S.
Compensated Temp Range	-10～60℃
Operating Temp Range	-20～80℃
Cable size	Φ3×3000mm
Weight	0.2kg
Material	stainless steel
