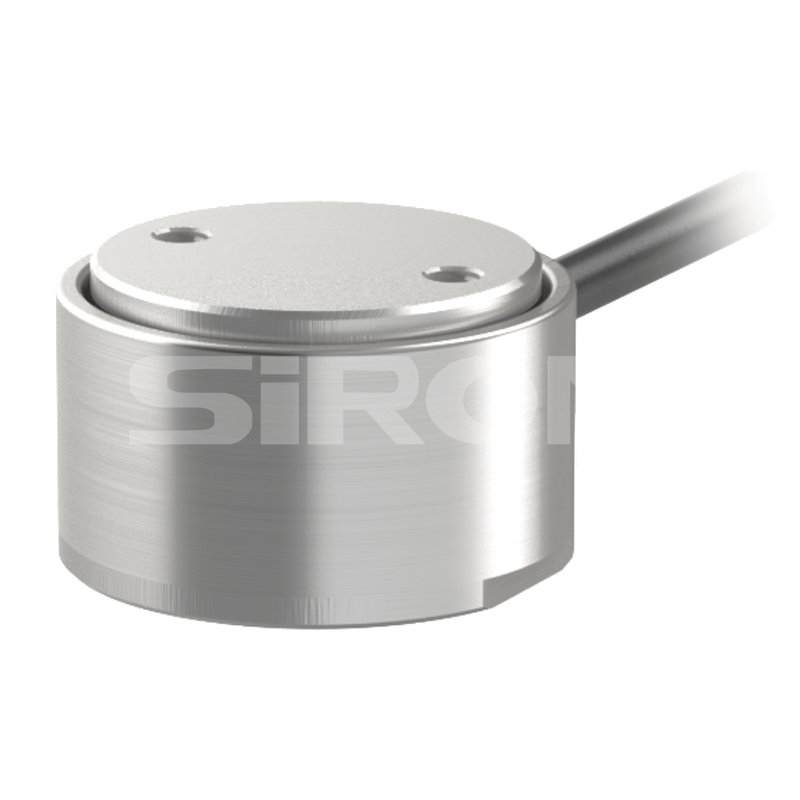

SiRON K101-5 Series Tensile-compressive Force Sensors

Name: SiRON K101-5 Series Tensile-compressive Force Sensors
Brand: SiRON
Rating: 5.0 (96 reviews)

Features:

* High accuracy, suitable for pressure and tension testing;

* Can produce small range sensors; It can realize anti-overload in structure;

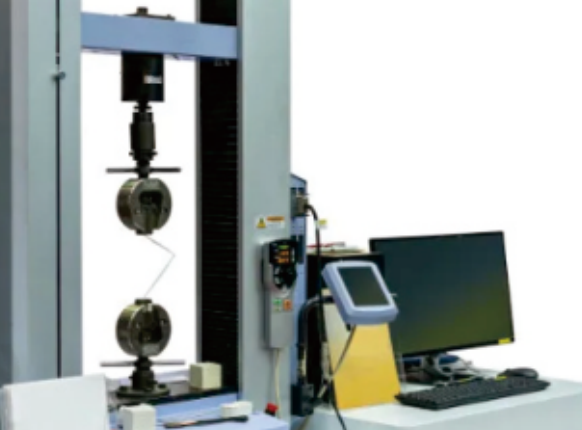

* Used for inserting and pulling force test, hook scale, hopper scale, belt scale, proportioning scale, push tension meter, testing machine,

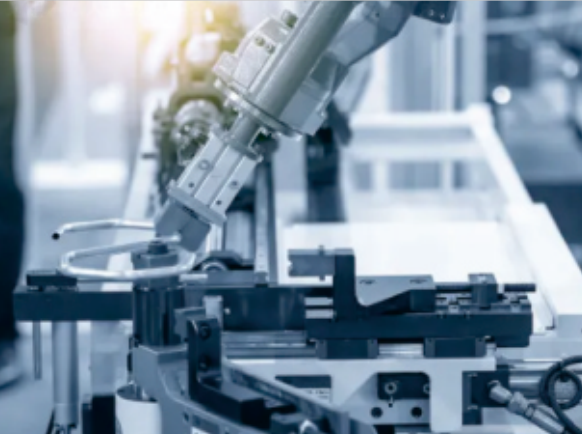

textile machinery, automation control, industrial measurement, etc.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K101-5 Series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Tensile-compressive force sensors High accuracy Dual-purpose for tension and compression High stability

Product Description

About selection

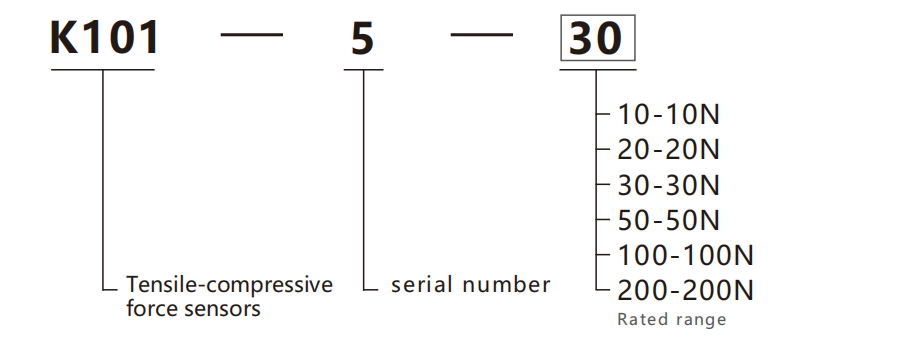

Example of Model Selection: K101-5-30 indicates the K101 series, with a serial number of 5 and a rated range of 30N.

Specifications

Name	Tensile-compressive force sensors
Model	K101-5-10	K101-5-20	K101-5-30	K101-5-50	K101-5-100	K101-5-200
Capacity	10N	20N	30N	50N	100N	200N
Sensitivity	2.0±10%mV/V
Zero balance	±0.02mV/V
Creep(30min)	≤0.1%F.S.
Non-linearity	≤0.1%F.S.
Hysteresis	≤0.1%F.S.
Repeatability	≤0.1%F.S.
Input/Output impedance	Input resistance: 350/650±5Ω Output resistance: 350/650±5Ω
Temp.ef fect on output	0.05%F.S./10℃
Temp.ef fect on zero	0.05%F.S./10℃
Insulation resistance	≥5000MΩ/100V(DC)
Recommended excitation	5~12V
Maximum excitation	15V
Safe/Ultimate overload	Safe overload: 150% F.S.; Ultimate overload: 200% F.S.
Compensated Temp Range	-10～60℃
Operating Temp Range	-20～80℃
Cable size	Φ2×3000mm
Weight	0.1kg
Material	stainless steel
