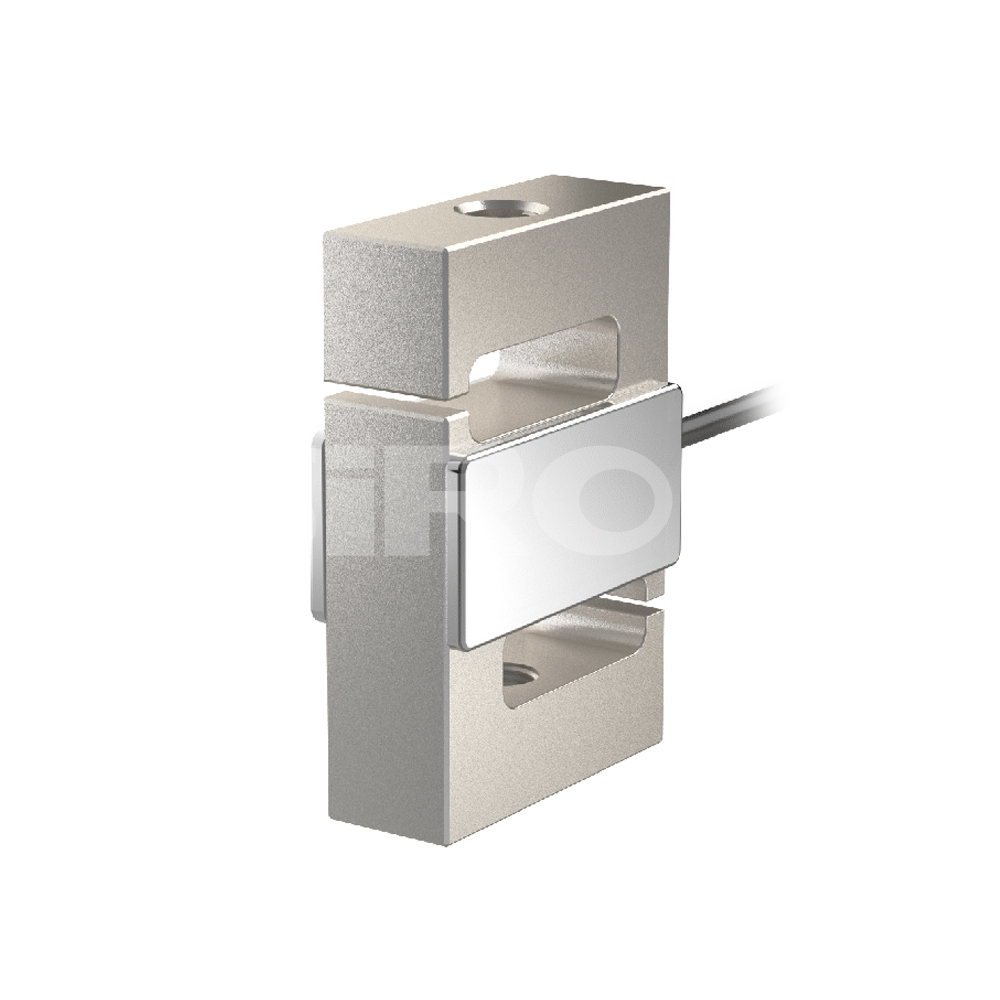

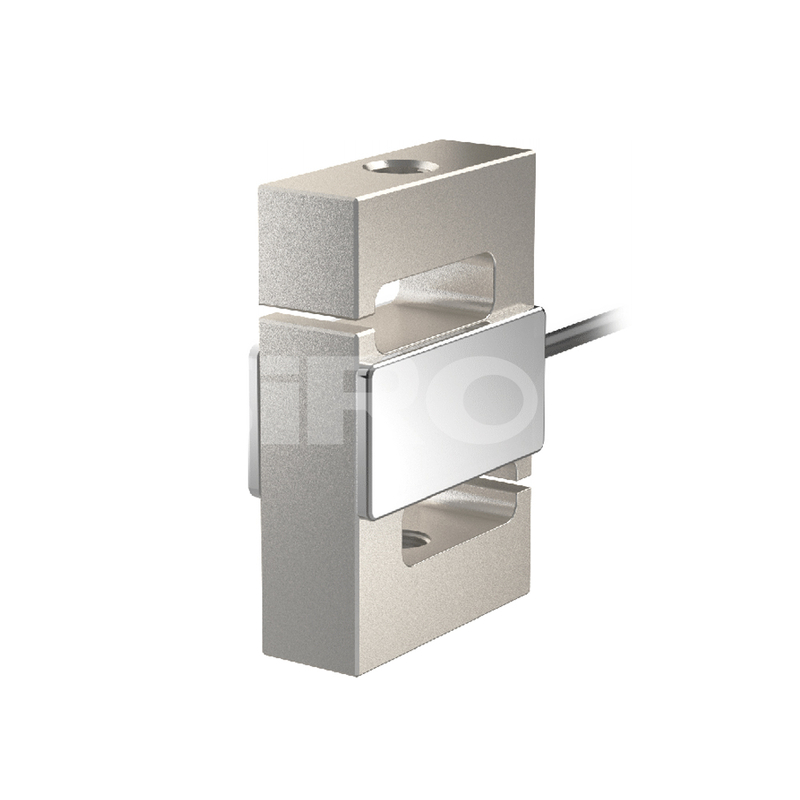

SiRON K101-4 Series Tensile-compressive Force Sensors

Name: SiRON K101-4 Series Tensile-compressive Force Sensors
Brand: SiRON
Rating: 5.0 (57 reviews)

Features:

* High accuracy, suitable for pressure and tension testing;

* Can produce small range sensors; It can realize anti-overload in structure;
* Used for inserting and pulling force test, hook scale, hopper scale, belt scale, proportioning scale, push tension meter, testing machine,

textile machinery, automation control, industrial measurement, etc.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K101-4 Series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Tensile-compressive force sensors High accuracy Dual-purpose for tension and compression High stability

Product Description

About selection

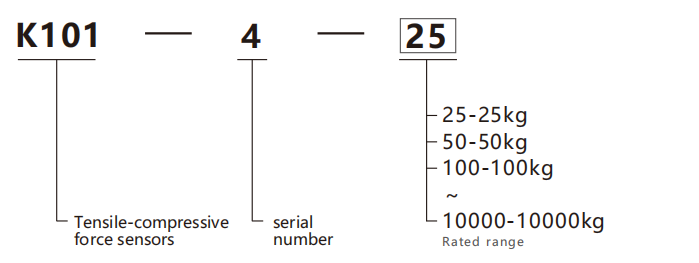

Example of Model Selection: K101-4-25 indicates the K101 series, with a serial number of 4 and a rated range of 25kg.

Code	25	50	100	200	250	500	750
Rated range	25kg	50kg	100kg	200kg	250kg	500kg	750kg
Code	1000	1500	2000	2500	5000	10000
Rated range	1000kg	1500kg	2000kg	2500kg	5000kg	10000kg

Specifications

Name	Tensile-compressive force sensors
Model	K101-4-25	K101-4-50	K101-4-100	K101-4-200	K101-4-250	K101-4-500	K101-4-750
Capacity	25kg	50kg	100kg	200kg	250kg	500kg	750kg
Model	K101-4-1000	K101-4-1500	K101-4-2000	K101-4-2500	K101-4-5000	K101-4-10000	/
Capacity	1000kg	1500kg	2000kg	2500kg	5000kg	10000kg	/
Sensitivity	2.0/3.0±1%mV/V
Zero balance	±0.06mV/V
Creep (30min)	≤0.024%F.S.
Non-linearity	≤0.03%F.S.
Hysteresis	≤0.03%F.S.
Repeatability	≤0.03%F.S.
Input/Output impedance	Input resistance: 385±10Ω; Output resistance: 350±5Ω
Temp.effect on output	0.02%F.S./10℃
Temp.effect on zero	0.02%F.S./10℃
Insulation resistance	≥5000MQ/100V(DC)
Recommended excitation	5～~15V
Maximum excitation	20V
Safe/Ultimate overload	Safe overload: 150% F.S.; Ultimate overload: 200% F.S.
Compensated Temp Range	-10～40℃
Operating Temp Range	-30～70℃
Cable size	Φ5×3000mm
Material	Alloy steel
