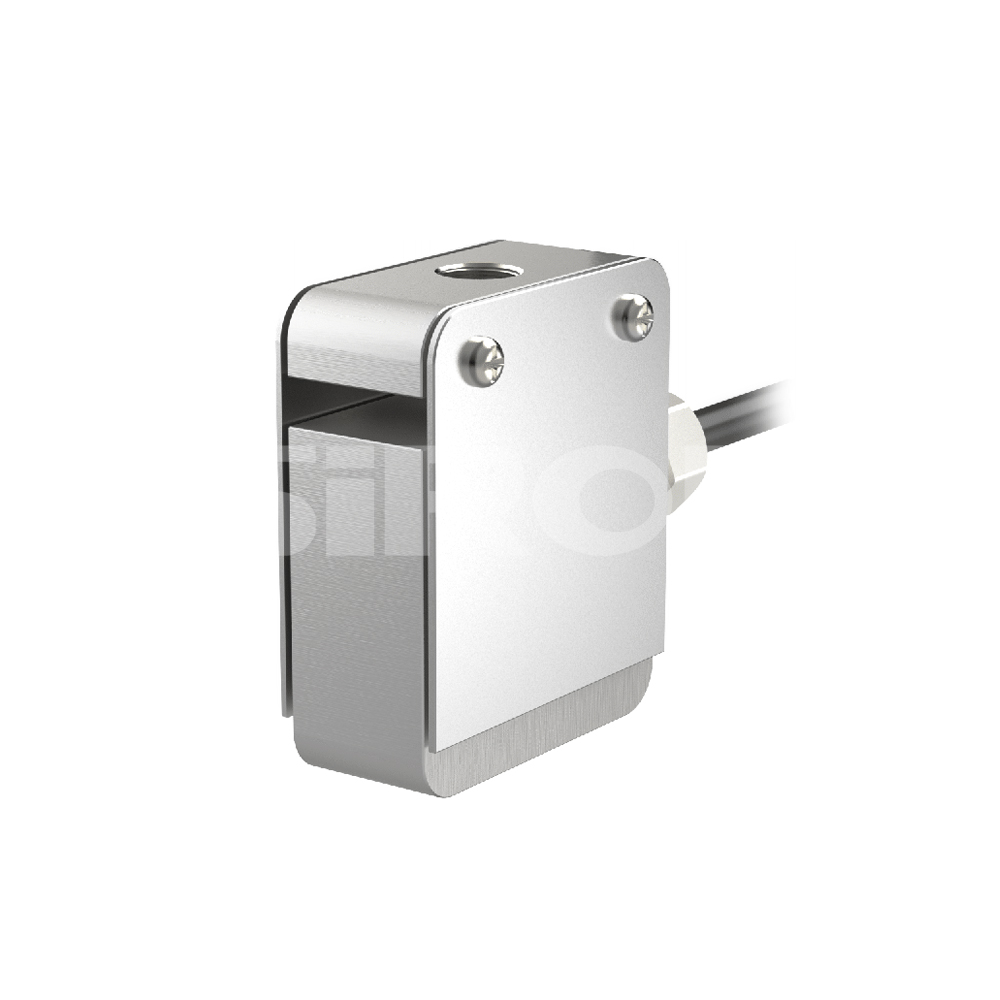

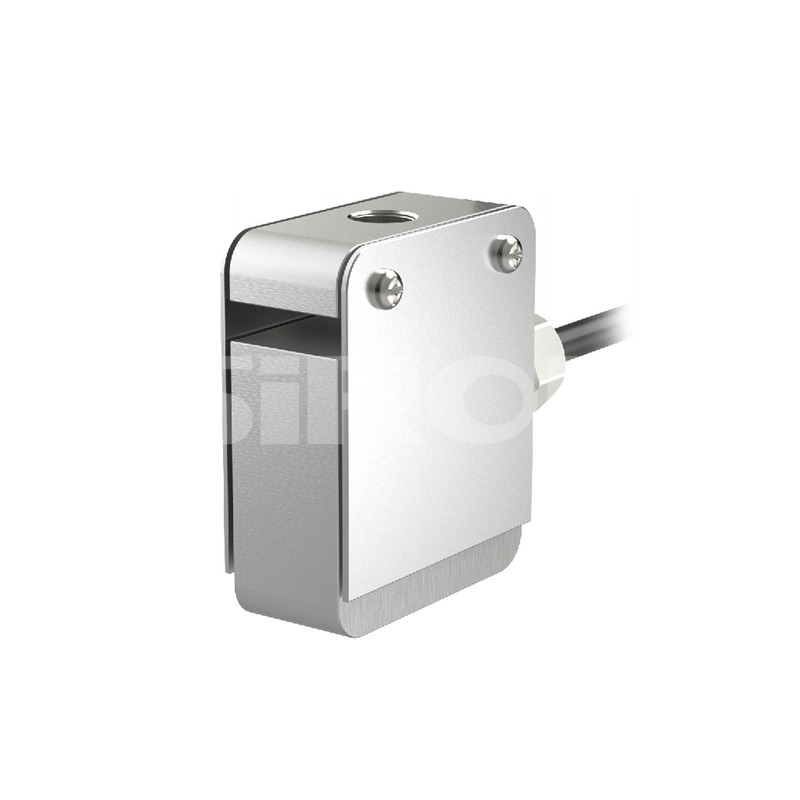

SiRON K101-3 Series Tensile-compressive Force Sensors

Name: SiRON K101-3 Series Tensile-compressive Force Sensors
Brand: SiRON
Rating: 5.0 (9 reviews)

Features:

* High accuracy, suitable for pressure and tension testing;
* Can produce small range sensors; It can realize anti-overload in structure;
* Used for inserting and pulling force test, hook scale, hopper scale, belt scale, proportioning scale, push tension meter, testing machine,textile machinery, automation control, industrial measurement, etc.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K101-3 Series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Tensile-compressive force sensors Dual-purpose for tension and compression Excellent stability high precision

Product Description

About selection

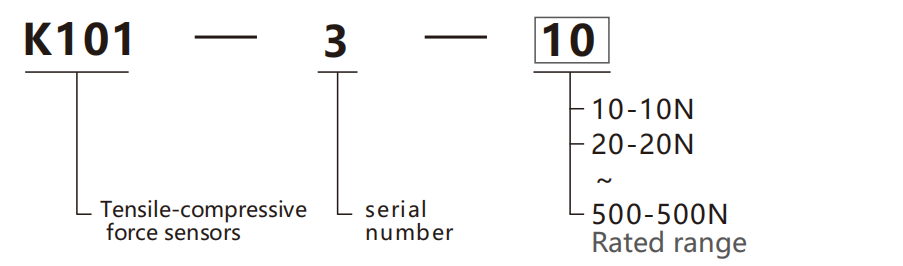

Selection example: K101-3-10 indicates the K101 series, serial number 3, rated range 10N.

Specifications

Name	Tensile-compressive force sensors
Model	K101-3-10	K101-3-20	K101-3-50	K101-3-100	K101-3-150	K101-3-200	K101-3-500
Capacity	10N	20N	50N	100N	150N	200N	500N
Sensitivity	2.0±10%mV/V
Zero balance	±0.02mV/V
Creep(30min)	≤0.05%F.S.
Non-linearity	≤0.05%F.S.
Hysteresis	≤0.05%F.S.
Repeatability	≤0.05%F.S.
Input/Output impedance	Input resistance: 385 ± 10 Ω; Output resistance: 350 ± 5 Ω
Temp.ef fect on output	0.025%F.S./10℃
Temp.ef fect on zero	0.025%F.S./10℃
Insulation resistance	≥5000MΩ/100V(DC)
Recommended excitation	5～10V
Maximum excitation	15V
Safe/U1timate overload	Safe Overload: 150% F.S. ;Ultimate Overload: 200% F.S.
Compensated Temp Range	-10～60℃
Operating Temp Range	-20～80℃
Cable size	Φ2×3000mm
Weight	0.1kg
Material	stainless steel
