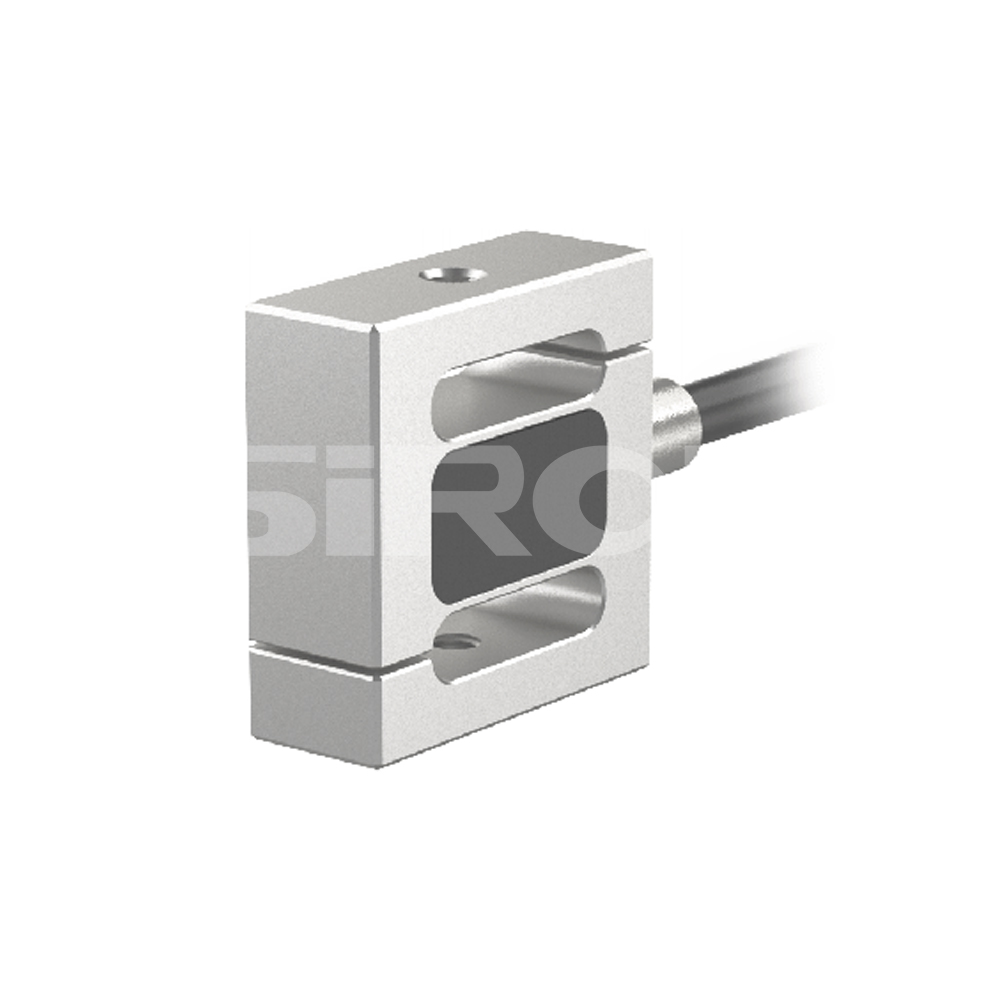

SiRON K101-1 Series Tensile-compressive Force Sensors

Name: SiRON K101-1 Series Tensile-compressive Force Sensors
Brand: SiRON
Rating: 5.0 (49 reviews)

Features:

* High accuracy, suitable for pressure and tension testing;
* Can produce small range sensors; It can realize anti-overload in structure;

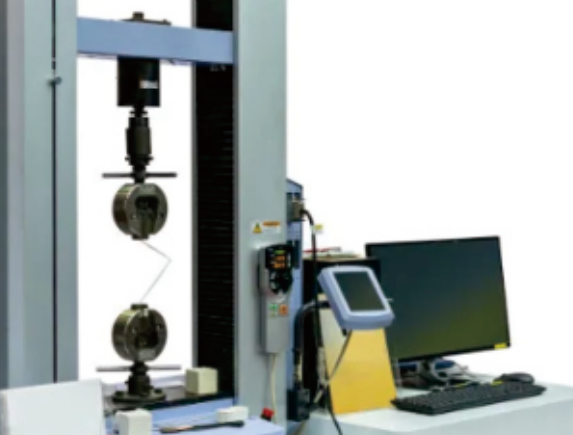

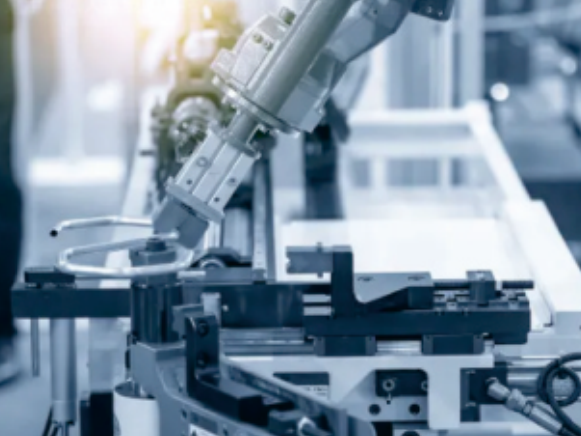

* Used for inserting and pulling force test, hook scale, hopper scale, belt scale, proportioning scale, push tension meter, testing machine,textile machinery, automation control, industrial measurement, etc.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K101-1 Series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Tensile-compressive force sensors Dual-purpose for tension and compression Excellent stability high precision

Product Description

About selection

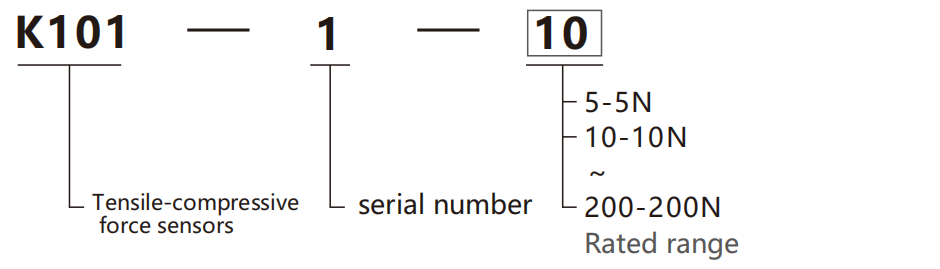

Selection example: K101-1-10 indicates the K101 series, serial number 1, rated range 10N.

Specifications

Name	Tensile-compressive force sensors
Model	K101-1-5	K101-1-10	K101-1-20	K101-1-50	K101-1-100	K101-1-200
Capacity	5N	10N	20N	50N	100N	200N
Sensitivity	2.0±10%mV/V
Zero balance	±0.02mV/V
Creep(30min)	≤0.05%F.S.
Non-linearity	≤0.05%F.S.
Hysteresis	≤0.05%F.S.
Repeatability	≤0.05%F.S.
Input/Output impedance	650/350±5Ω
Temp.effect on output	0.05%F.S./10℃
Temp.effect on zero	0.05%F.S./10℃
Insulation resistance	≥5000MΩ/100V(DC)
Voltage	Excitation Voltage: 5V; Maximum Excitation Voltage: 15V.
Ambient temperature	Temperature compensation range: -10 to 60℃; The operating temperature range is -20 to 80℃.
Safe/Ultimate overload	Safe Overload: 150% F.S. ; Ultimate Overload: 200% F.S.
Cable size	Φ 2 x 3 0 0 0 m m
Weight	0.1kg
Material	stainless steel
