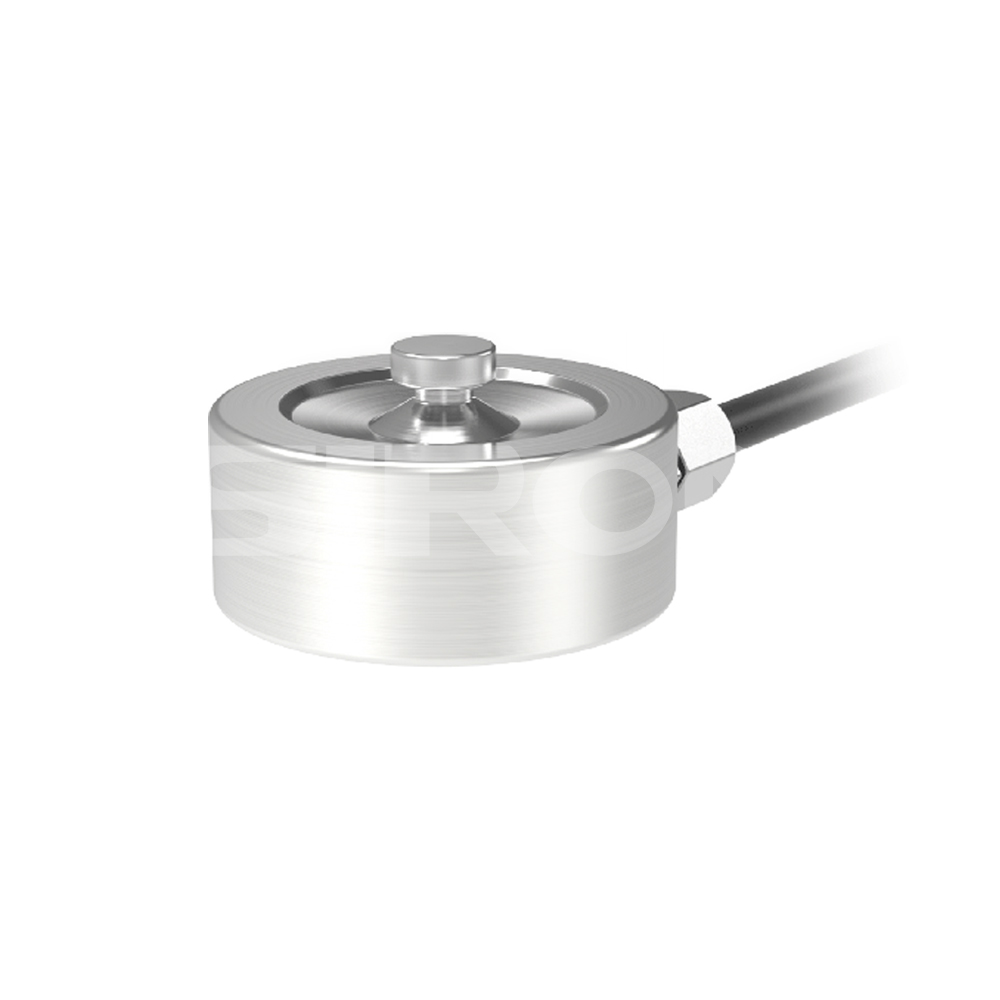

SiRON K100-3 Series Miniature Force Sensors

Name: SiRON K100-3 Series Miniature Force Sensors
Brand: SiRON
Rating: 5.0 (82 reviews)

Features:

* Stable, easy to install;
* High response frequency, can be used for dynamic measurement; Large range;
* Widely used in small space force measurement, industrial automation, pressure holding equipment, R & D testing, testing machine, axle identifier and other weighing and measuring equipment.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K100-3 Series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Miniature Force Sensors Stable easy to install High response frequency Large range use Widely

Product Description

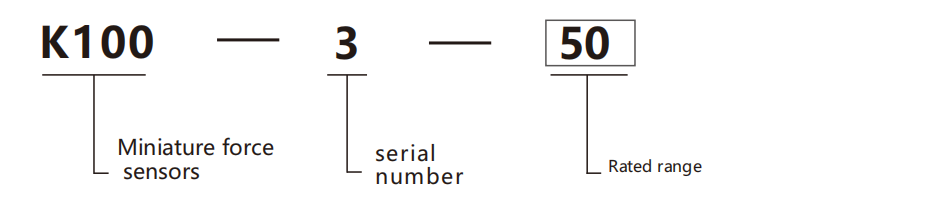

About selection

Selection example: K100-3-50 indicates the K100 series, serial number 3, rated range 50N.

Specifications

Name	Micro pressure sensor
Model	K100-3-50	K100-3-100	K100-3-200	K100-3-500	K100-3-1000
Capacity	50N	100N	200N	500N	1000N
Model	K100-3-2000	K100-3-5000	K100-3-10000	K100-3-20000	/
Capacity	2000N	5000N	10000N	20000N	/
Sensitivity	1.5±20%mV/V
Zero balance	±1%F.S.
Creep(30min)	≤0.1%F.S.
Non-linearity	≤0.5%F.S.
Hysteresis	≤02%F.S.
Repeatability	≤0.2%F.S.
Input/Output impedance	800~1100Ω
Temp.effect on output	0.05%F.S./10℃
Temp.effect on zero	0.05%F.S./10℃
Insulation resistance	≥5000MΩ/100V(DC)
Recommended excitatio	5~15V n
Maximum excitation	20V
Temperature compensation range	-10~60℃
Ambient temperature	-20~80℃
Safe/Ultmate overoad	150%F.S./200%F.S.
Cable size	50 - 10000N:中3x3000mm;20000N:Φ2x3000mm
Weight	0.03kg
Material	stainless steel
