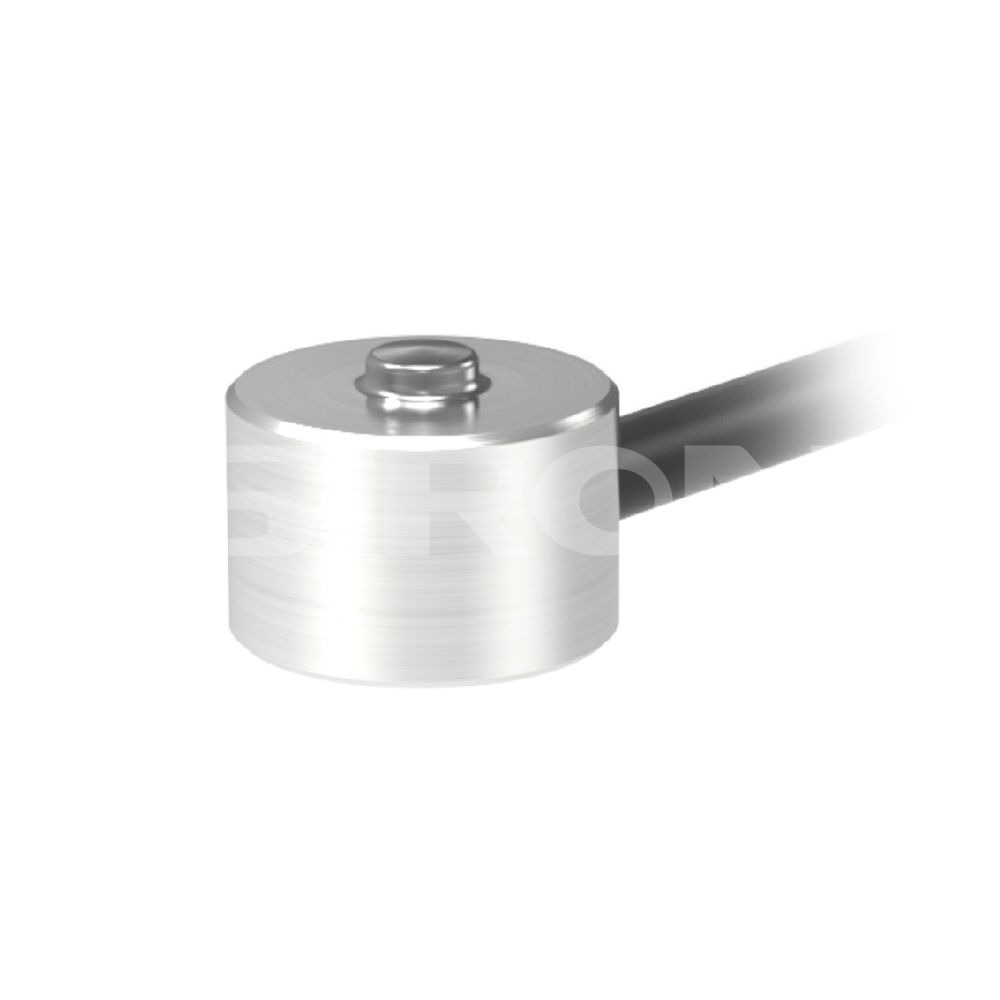

SiRON K100-1 Series Miniature Force Sensors

Name: SiRON K100-1 Series Miniature Force Sensors
Brand: SiRON
Rating: 5.0 (72 reviews)

Features:

* Stable, easy to install;
* High response frequency, can be used for dynamic measurement; Large range;

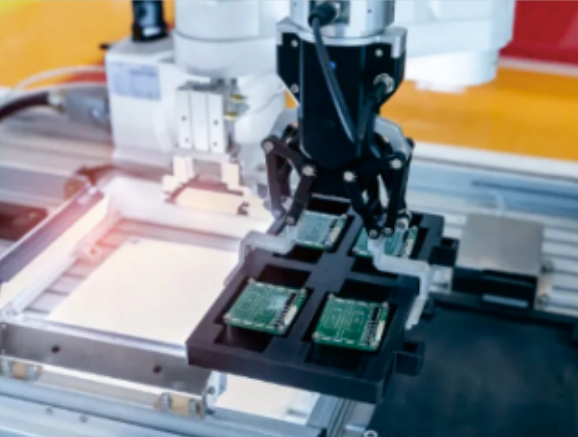

* Widely used in small space force measurement, industrial automation, pressure holding equipment, R & D testing, testing machine, axle identifier and other weighing and measuring equipment.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K100-1 Series
Brand:
SiRON
Code:
8479909090

Weighing Force Sensor Miniature Force Sensors Stable easy to install High response frequency Large range use Widely

Product Description

About selection

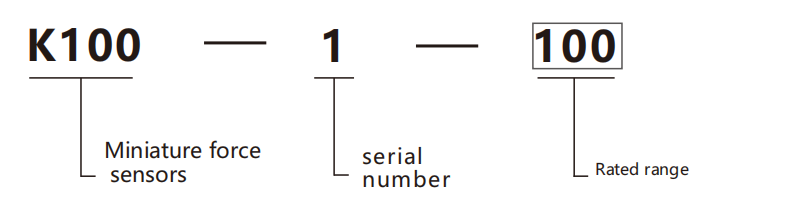

Selection example: K100-1-100 indicates the K100 series, serial number 1, rated range 100N.

Specifications

Name	Micro pressure sensor
Model	K100-1-100	K100-1-200	K100-1-500
Capacity	100N	200N	500N
Sensitivity	1.0±20%mV/N
Zero balance	±1%F.S.
Creep(30min)	≤0.5%F.S.
Non-linearity	≤0.5%F.S.
Hysteresis	≤0.5%F.S.
Repeatability	≤0.5%F.S.
Input/Output impedance	600~800Ω
Temp.effect on output	0.05%F.S./10℃
Temp.effect on zero	0.05%F.S./10℃
nsulation resistance	≥5000MΩ/100V(DC)
Recommended excitation	5~10V
Maximum excitation	15V
Temperature compensation range	-10~60℃
Ambient temperature	-20~80℃
Safe/Ultimate overload	150%F.S./200%F.S.
Cable size	Φ2x3000mm
Weight	0.02kg
Material	stainless steel

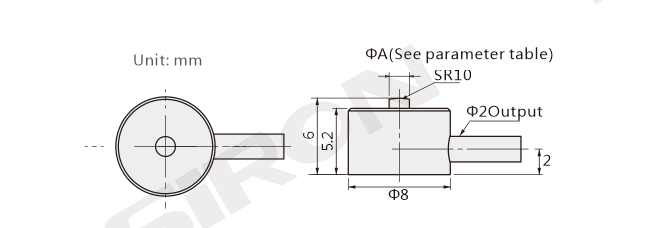

Capacity(N)	1.6			2.3
