Specifications

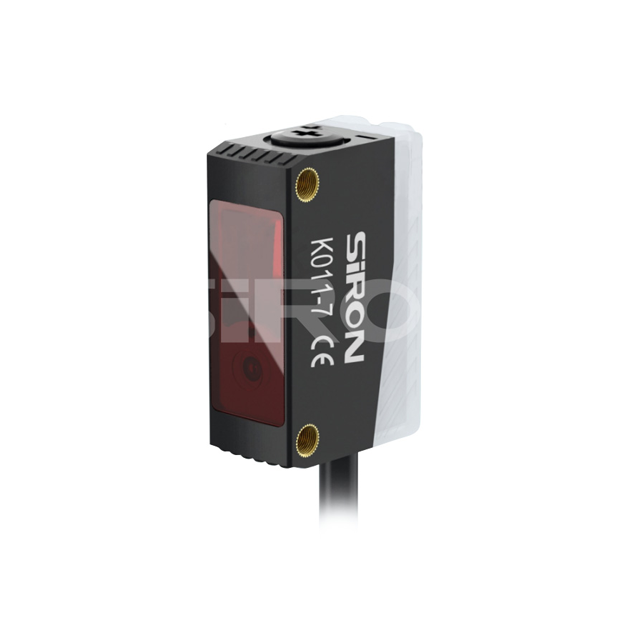

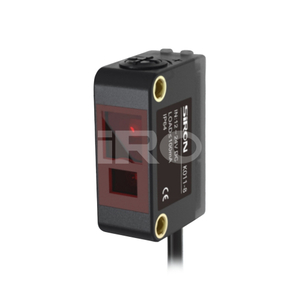

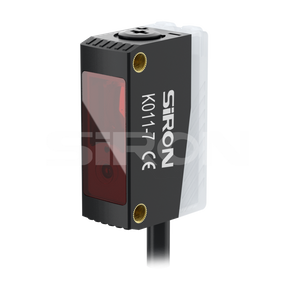

Name | Laser sensor | ||
Model | NPN | K011-6 | K011-7 |
PNP | K011-6P | K011-7P | |
Type | Diffuse reflection (background suppression type) | ||
Appearance |
|
| |
Distance of detection | 1-15cm | 20~350mm | |
Set distance | 2-15cm | 50-350m | |
Spot size | about Φ1.5mm/15cm | Φ3.5mm/350mm | |
Minimum detector | / | Φ0.5mm | |
Operating voltage | 0~30VDC | 10-24VDC±10%1 | |
Residual voltage | <1.5V | <1.5V | |
Consumption current | ≤20mA | ≤20mA | |
Load curren | ≤100mA | ≤100mA | |
Light source | Laser 650nm(modulation) | Laser 650nm | |
Laser class | Class2 | Class2 | |
Indicator light | Working indicator light: Green Action indicator light: Red | Output indicator light: Red Work indicator light: Green | |
Sensitivity regulation | 6-turn potentiometer | 6-turn potentiometer | |
Output mode | NPN or PNP open collector | NPN or PNP open collector | |
Switching mode | L.on(light entry action)/D.on(light blocking action) can be switched | L.on(light entry action)/D.on(light blocking action) can be switched | |
Response time | ≤2ms | 2ms | |
Difference range | ≤5% SN | 5% | |
Ambient illumination | Incandescent lamp: below 3000Lux/Sunlight: Below 5000Lux | Sunlight exposure 20,000 lux, fluorescent lamp exposure 1000Lux. LED 600Lux | |
Ambient temperature | -25℃ to +55℃, no freezing; Storage temperature: -30 to +70℃ | -10℃～+50℃，no freezing | |
Ambient humidity | 35% - 85%RH, no condensation; Storage: 35% - 95%RH | 35%～85%RH，no condensation | |
Circuit protection | Power reverse polarity protection, output reverse polarity protection, surge protection, short circuit protection | Power reverse polarity protection, output reverse polarity protection, surge protection, short circuit protection | |
Protection class | IP65 | IP65 | |
Vibration resistance | 10-50Hz, 0.5mm amplitude, 2 hours in each of the X, Y and Z directions | 10-55Hz, amplitude 1.5mm, 2 hours each in the X, Y and Z directions | |
Impact resistance | / | 50G(500m/s) | |
Insulation resistance | / | Between all power connection terminals and the housing, 20MΩ or above (based on 250VDC) | |
Withstand voltage | ±1000V 50/60Hz 60s | / | |
Static electricity | ±8000V(Air discharge) | / | |
Group pulse | ±2000V(5kHz/50kHz) | / | |
Surge | / | 150V | |
Install | / | Side-by-side installation: Two in close contact side by side; Opposite installation: 700mm opposite installation | |
Material | PBT+ glass fiber (housing), PMMA(lens) | PBT+ glass fiber (housing), PMMA(lens) | |
Cable | 3-core cable | 4-core cable | |
Cable length | 2M | 2M | |
Accessories | screwdriver | Bracket, screw | |
