K011-32~K011-33 Series
SiRON
9033000090

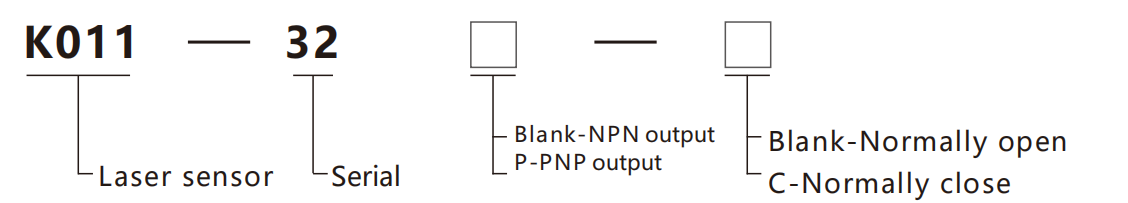

About selection
Selection example: K011-32 indicates the K011 series, serial numbers 32, with NPN output,
normally open.
K011-11-32P indicates K011 series, serial numbers 32, with PNP output.
normally close.
Note: National standard installation hole positions.
Specifications
Name | Lasersensor | ||
Model | NPN N.O | K011-32 | K011-33 |
| NPN N.C | K011-32C | K011-33C | |
| PNP N.O | K011-32P | K011-33P | |
| PNP N.C | K011-32P-C | K011-33P-C | |
Type | correlation | ||
Appearance |   |  | |
Detection distance | 5m | 15m | |
Spot size | φ10mm | φ30mm | |
Switching frequency | 500Hz | ||
Operating voltage | 10～30V DC | ||
Type oflight | laser 6 5 0 n m | ||
Lasergrade | Class 1 | ||
Reaction time | <2ms | ||
Loadcurrent | 100mA | ||
PoweF-on delay | <300ms | ||
Sensitive regulation | Single-turn potentiometer | ||
Lightinterference resistance | <5000Lux. | ||
Protectionclass | IP65 | ||
Ambient temperature | -25～55℃ | ||
Ambienthumidity | 35～85% | ||
| Shell material | ABS | ||
| Lens material | PC | ||
| LED indication | Output: Yellow; Power supply: Green | ||
| Cable length | 2m | ||
| Cable | PVC cable Receiving end: 3×0.18mm ⊃2; / Transmitting end: 2×0.25mm² | ||

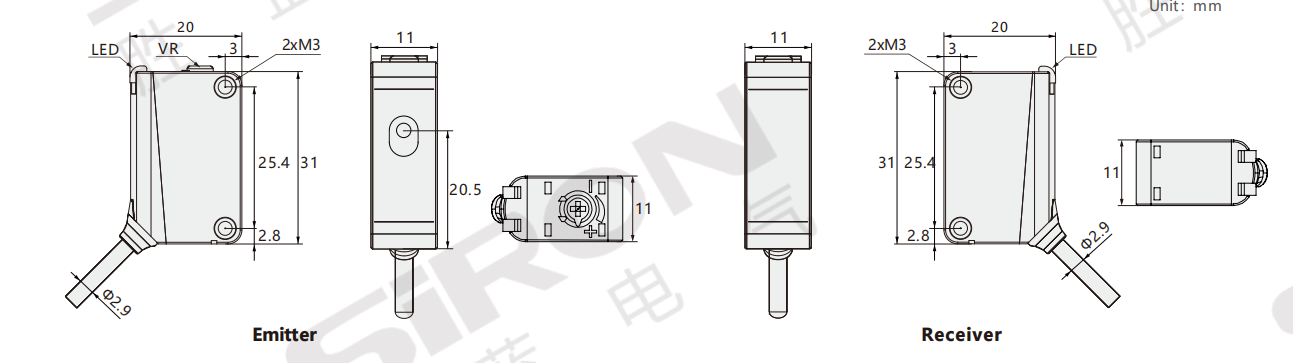

Dimension

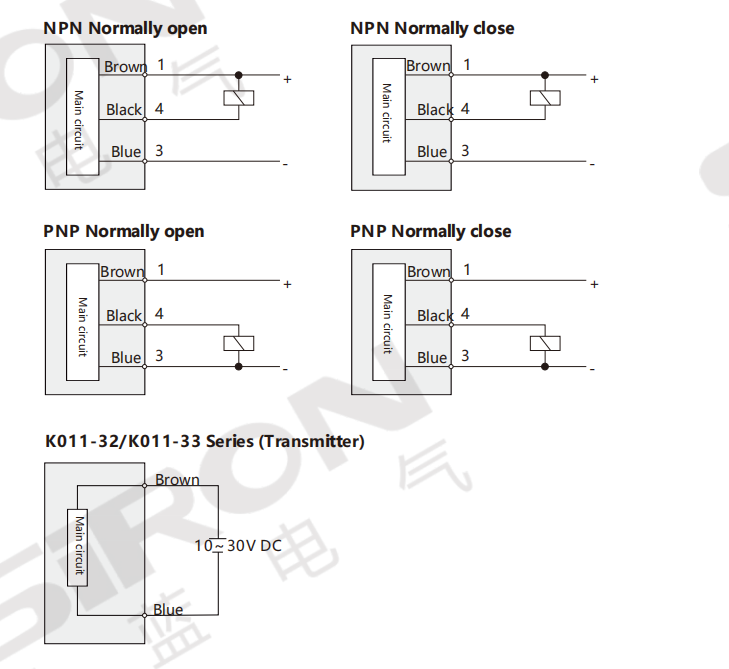

Wiring diagram
