SiRON K010-5 Series Universal Laser Sensor Diffuse Reflection IP67

About selection

Selection example: K010-5 indicates the K010 series, serial number 5, with NPN output;

                                      K010-5P indicates K010 series，serial number 5, with PNP output.

Specifications

Name		Laser sensor(universal)
Model	NPN	K010-5
	PNP	K010-5P
Type		Diffuse reflection (long-distance type)
Appearance
Detection distance		0～4.5m	Response time	≤0.5ms
Spot size		Approximately Φ17mm(at a distance of 4.5m)	Ambient temperature	- 1 0 ℃ ~ + 5 0 ℃ , No freezing
Operating voltage		10～30V     DC±10%	Ambient humidity	3 5 % ～ 8 5 % R H , No coagulation
Consumption current		≤85mA	Protection class	IP67
Light source		Laser 6 5 0 m m	Impactresistance	50G(500m²)
Laser class		Class1	Material	Shell: Containing glass fiber ABS; Lens :PMMA
indicator light		Output indicator light: Orange; Laser indicator light: Green	Cable	5-core cable
Sensitivity regulation		4-turn potentiometer	Cable length	2M
Switching mode		L.on(light-entering action)/D.on(light-blocking action)  can be switched

Example

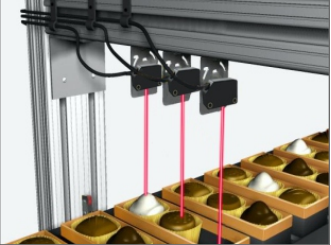

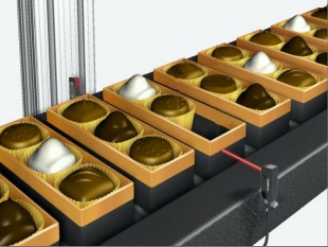

Detection of food quantity                                                                  Detection of food quantity

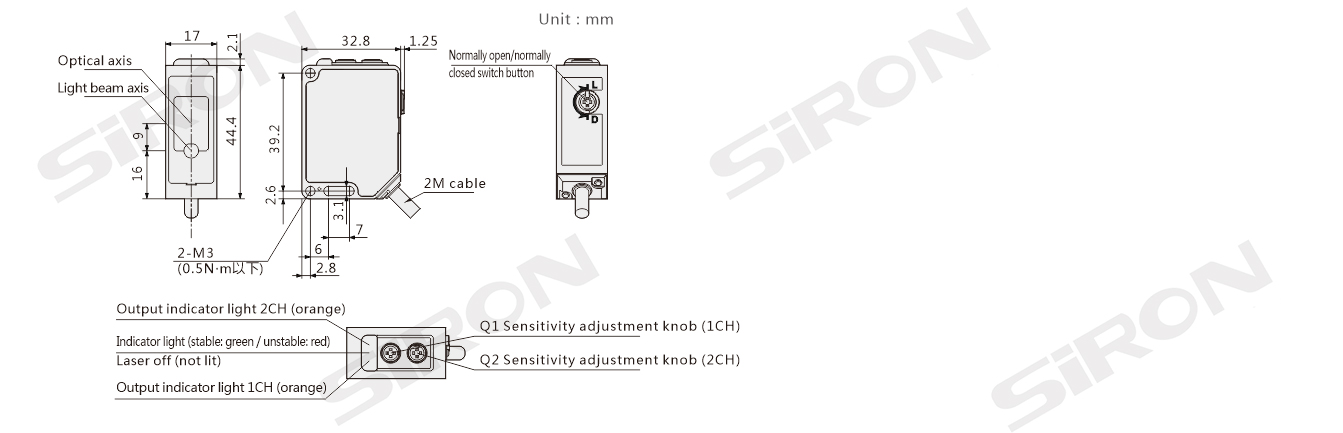

Dimension

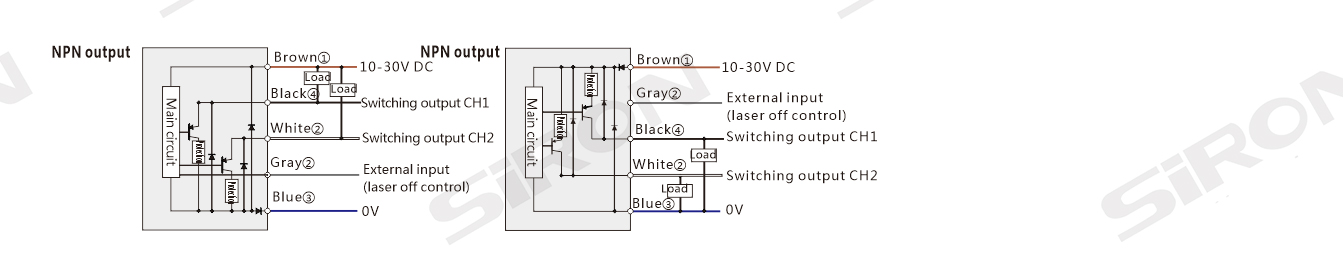

Wiring diagram
