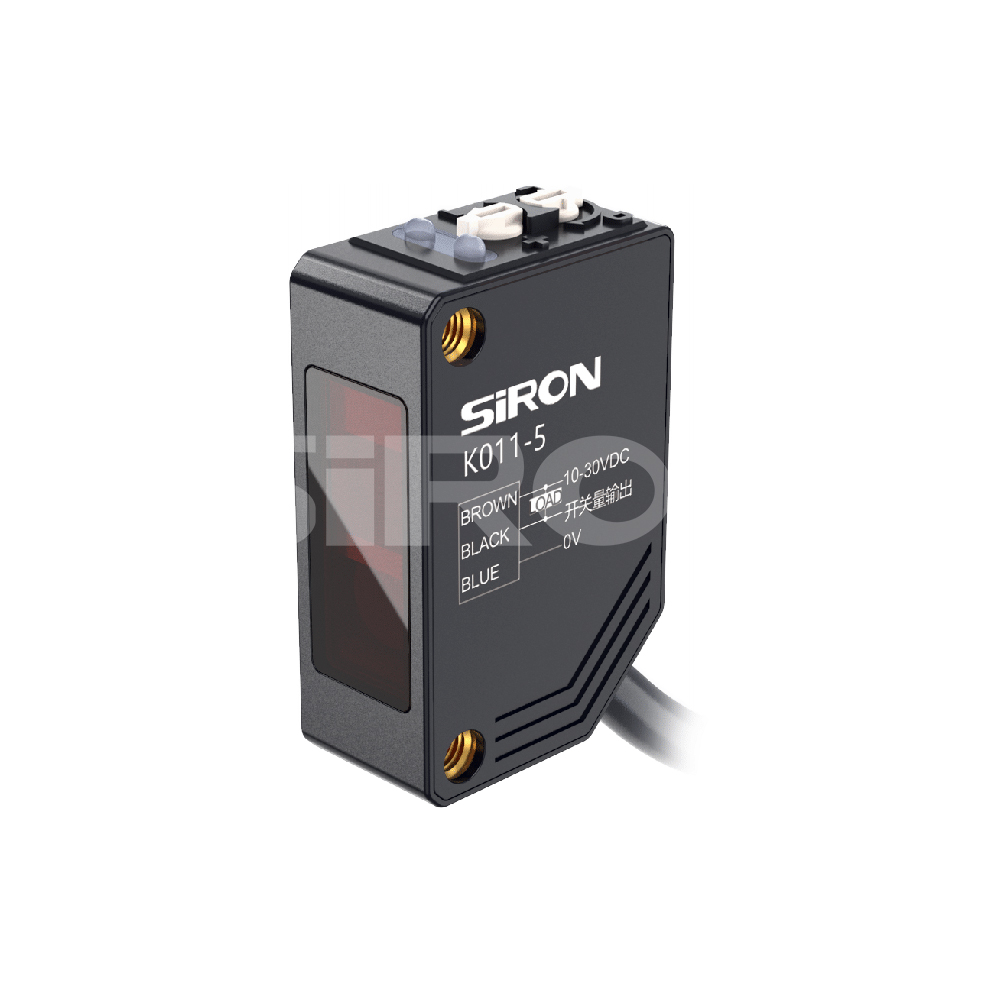

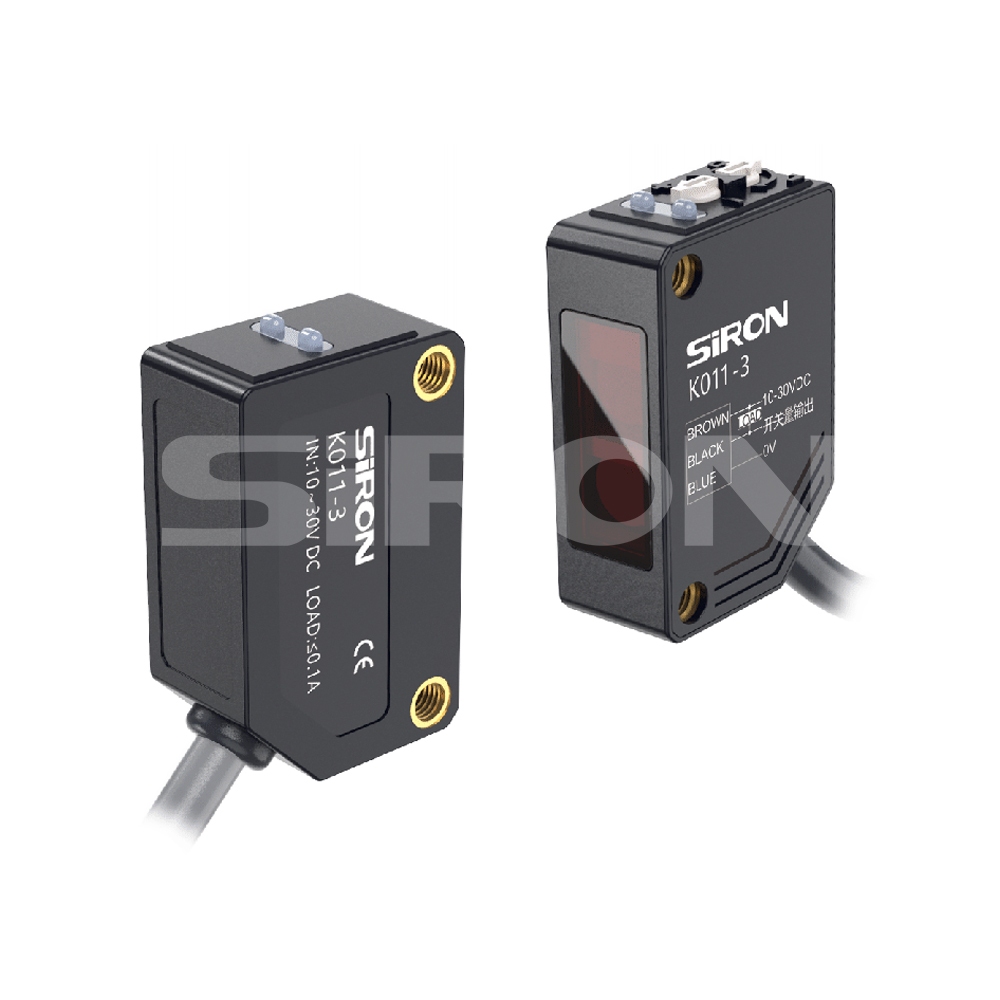

SiRON K011-3～K011-5 Series Laser Sensor IP65 High Speed Response

Name: SiRON K011-3～K011-5 Series Laser Sensor IP65 High Speed Response
Brand: SiRON
Rating: 5.0 (12 reviews)

Features:

* High speed response, suitable for detecting high speed moving objects.
* The diameter of the spot on the beam is only 60mm (at 30m).
* Protection grade Ip65.

Quantity:
Availability:





Inquire Add to Basket

Model:
K011-3～K011-5 Series
Brand:
SiRON
Code:
9033000090

Through-beam Retroreflection Diffuse Reflection Laser Sensor IP65 The diameter of the spot on the beam is only 60mm (at 30m) High speed response

Product Description

About selection

Selection example: K011-3 indicates the K011 series, serial numbers 3, with NPN output.

K011-3P indicates K011 series, serial numbers 3, with PNP output.

Specifications

Name		Laser sensor
Model	NPN	K011-3	K011-4	K011-5
	PNP	K011-3P	K011-4P	K011-5P

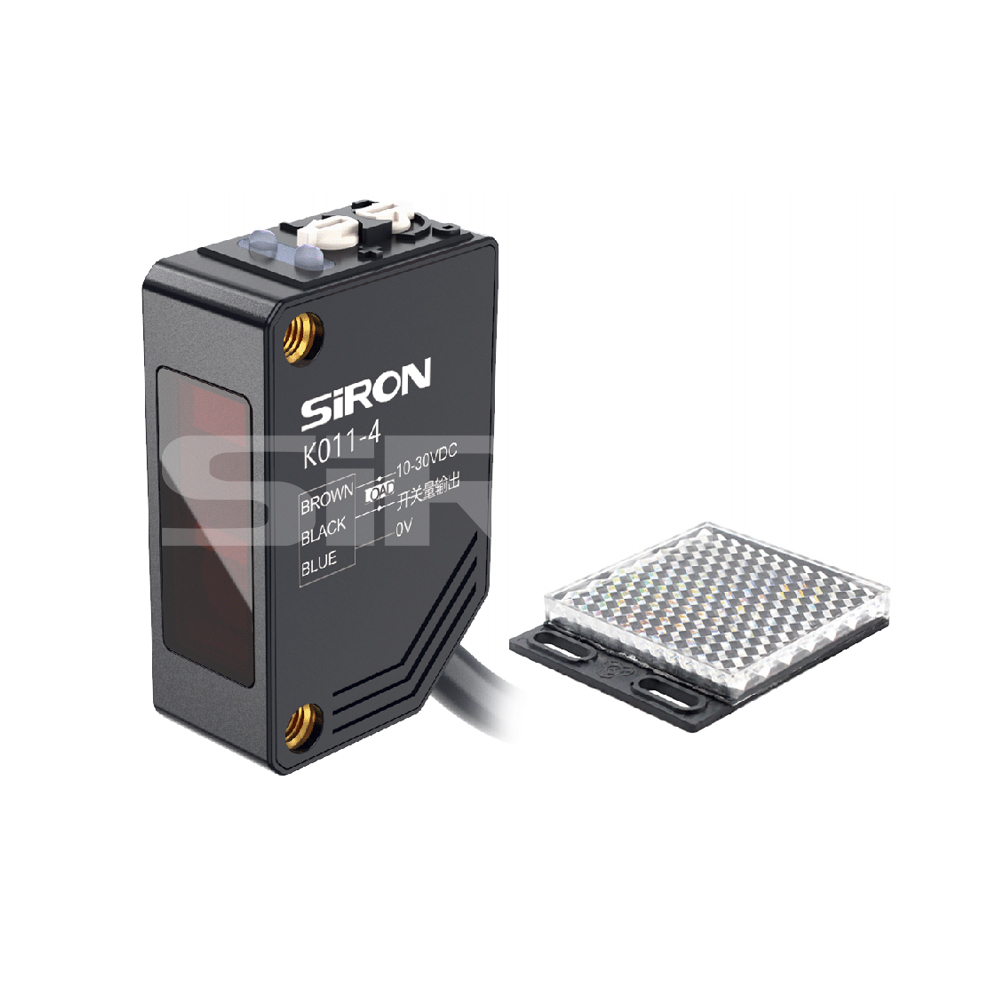

Type		Through-beam	Retroreflection	Diffuse reflection

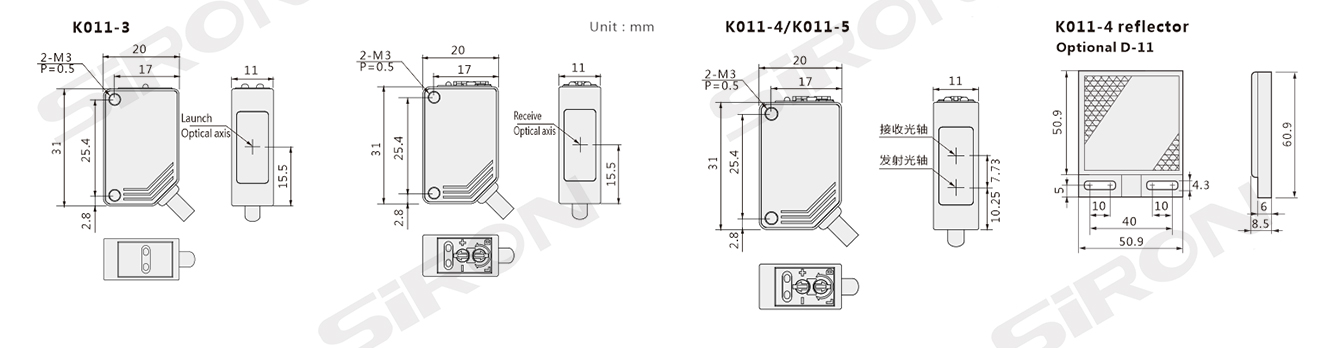

Appearance
Deteclion distance		30m	5m	40cm
Spot diameter		About φ 6 0 m m / 3 0 m	About Φ 2 0 m m / 5 m	About Φ1 . 5mm/40cm
Return range		≤20%SN
Sensitivity regulation		single-turn potentiometer
Operating voltage		10~30V DC
Residual voltage		<1.5V
Consumplin current		≤20mA
Load cument		≤100mA
Ligt source		Laser 650nm(modulation)Class2
Indicator light		Work indicator light: Green; Action indicator light: Red

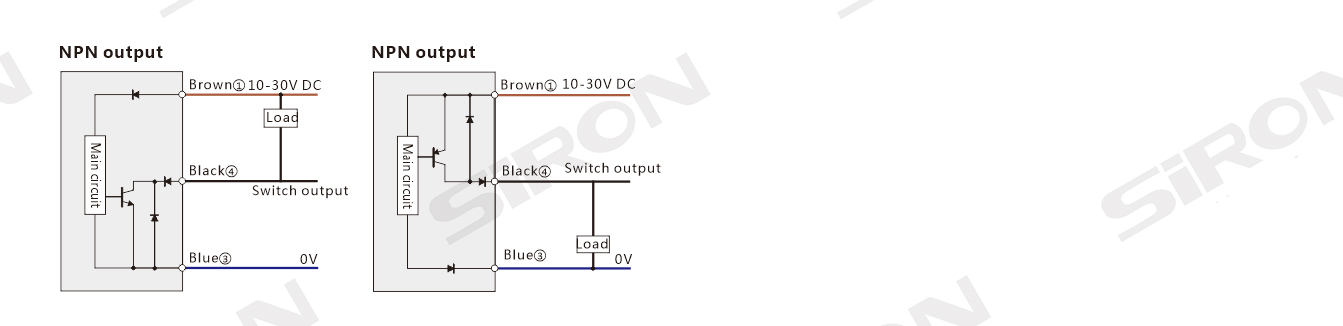

Output mode		NP N or PNP Open collector
Switching mode		Lon(light entry action)/D.on(light blocking action) can be switched
Response time		≤2ms
Ambient ilumination		Incandescent light: below 3000 Lux / Sunlight: below 5000 Lux
Ambient temperature		- 25℃~+55℃,no freezing; when storing: - 30~+70℃
Ambient humidity		35%~85%RH,No condensation；; when storing: 35%~95%RH
Insulation_		20MΩ
Withstand woltage		±1000V;50/60Hz;1 minute
Static electricity		±8000V(Air discharge)
Group pulse		±2000V(5kHz/50kHz)
Vibraion resistance		10–50 Hz, 0.5 mm amplitude, 2 hours for each of the X, Y, Z directions
Protection circuit		Power reverse polarity protection，Output reverse polarity protection，Surge protection，Short-circuit protection
Protection class		IP65
Maternal		PBT+ glass fiber (housing),PMMA(lens)
Cable		3-core cable
Cable length		2M
Acoessories		screwdriver
