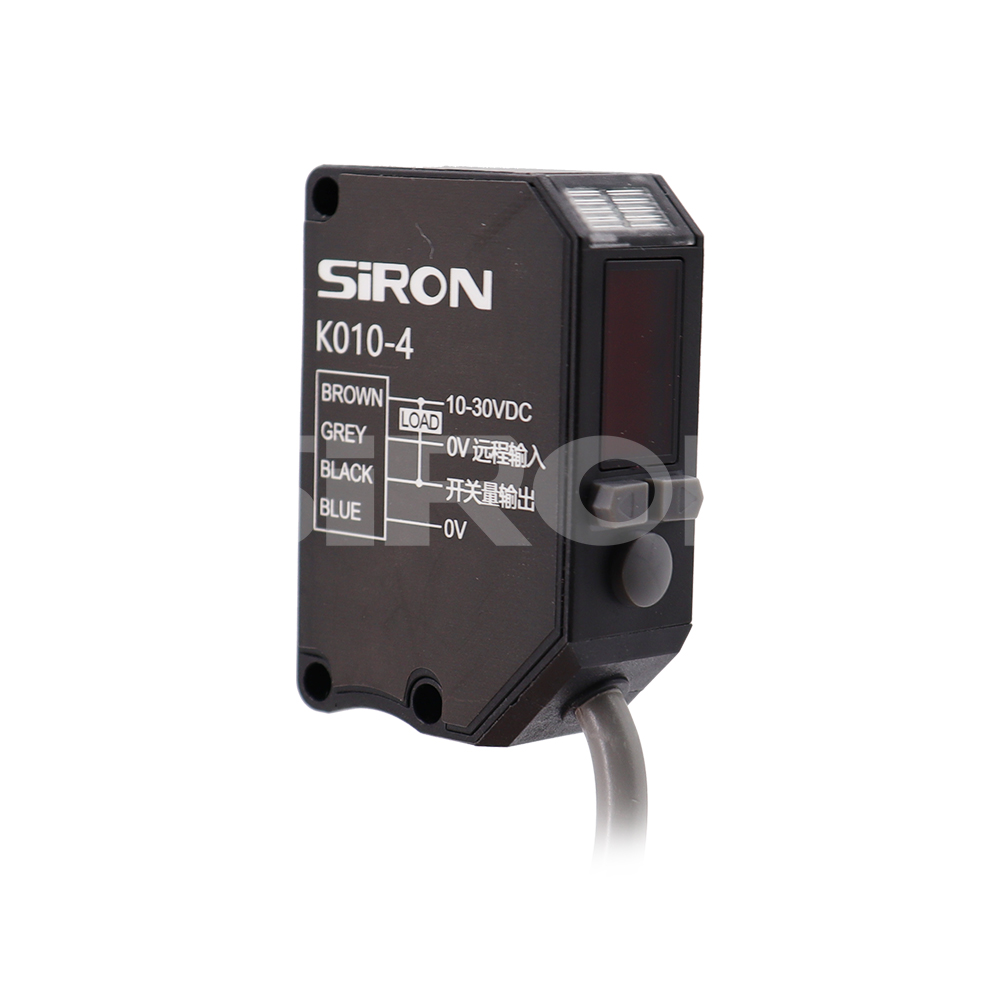

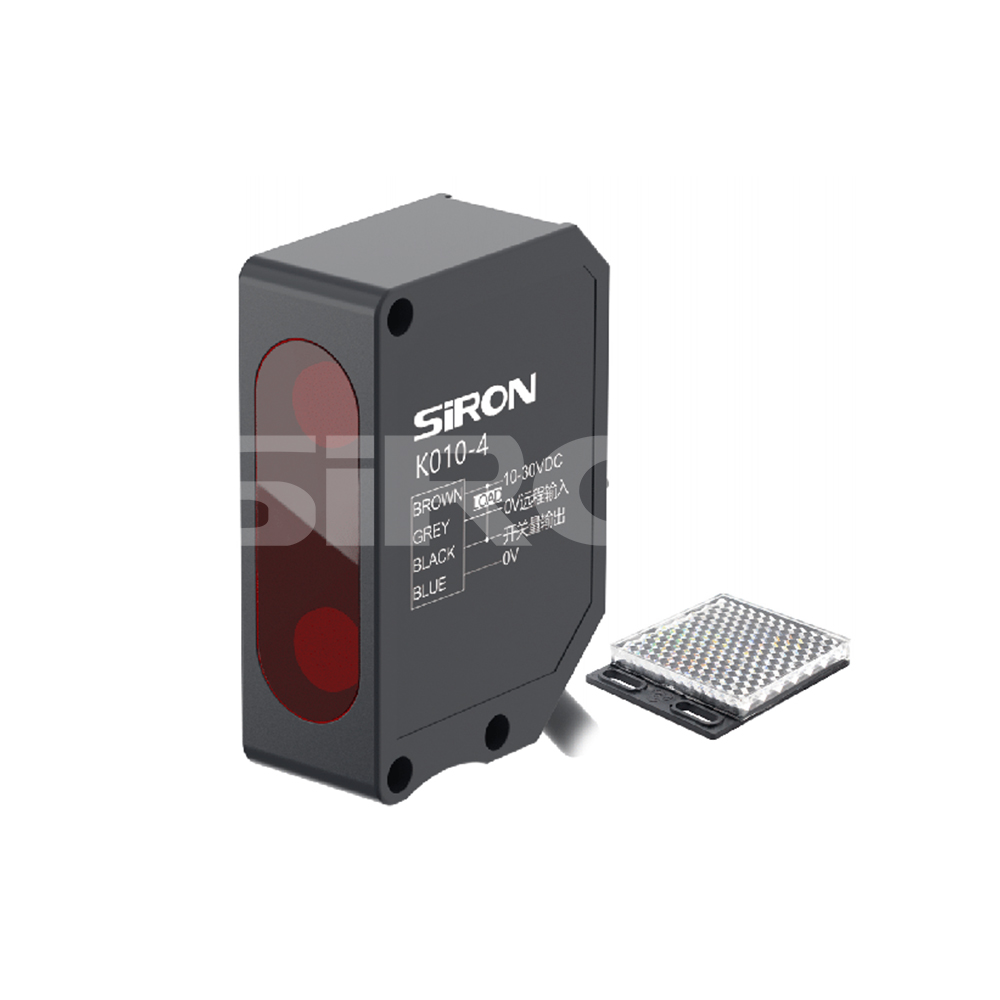

SiRON K010-4 Series Universal Laser Sensor Regression Reflection IP67

About selection

Selection example: K010-4 indicates the K010 series, serial number 4, with NPN output.

                                     K010-4P indicates the K010 series, serial number 4, with PNP output.

Specifications

Name		Laser sensor (universal)
Model	NPN	K010-4
	PNP	K010-4P
Type		Regression reflection - Transparent Body Detection (Coaxial Light Source)

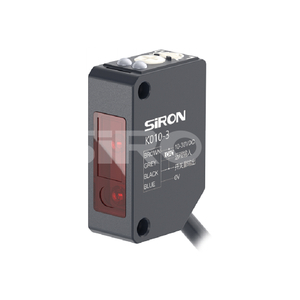

Appearance
Detection distance		1.5m	Delay function	Value-added unit for the 0-999ms range: 1ms; The value-added unit for the range of 1 to 10ms is 1ms
Spot size		φ15mm/1.5m	Ambient luminosity	sunniness ≤1000Lux, Illuminated by a white woven lamp≤300Lux
Operating voltage		10～30V     DC±10%	Ambient temperature	- 1 0 ℃ ~ + 5 0 ℃ , No freezing
Consumption current		35mA	Ambient humidity	3 5 % ～ 8 5 % R H , No coagulation
Light source		Laser 650mm , Max 1mW	Insulation strength	≥20MΩ(500V DC)
Laser class		Class2	Impact resistance	50G(500m/s²), in the X, Y, and Z directions
indicator light		Output indicator light: Orange;  Laser indicator light: Green	Protection class	IP67
Digital screen display		7 sections, 3-digit red LED display	Material	Shell: Antibacterial ABS; Lens ：  P M M A
Sensitivity regulation		Button adjustment	Cable	4-core cable
Output mode		NPN/PNP open-collector output, ≤100mA/30V DC	Cable length	2M
Switching mode		Lon(light entry action)/D.on(light blocking action) can be switched	Accessories	Brackets, screws, reflectors
Response time		0.7ms

Example

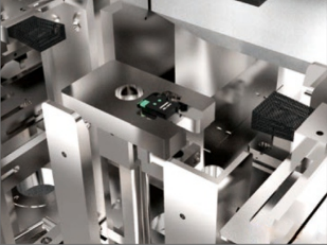

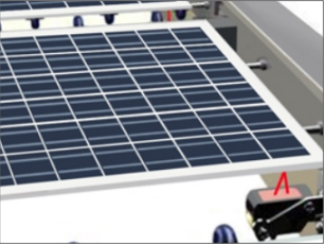

Stabilize the position of the detection                                        Detection of the number of electrode

 substrate                                                                                             sheets in the electrode sheet  material box

Dimension

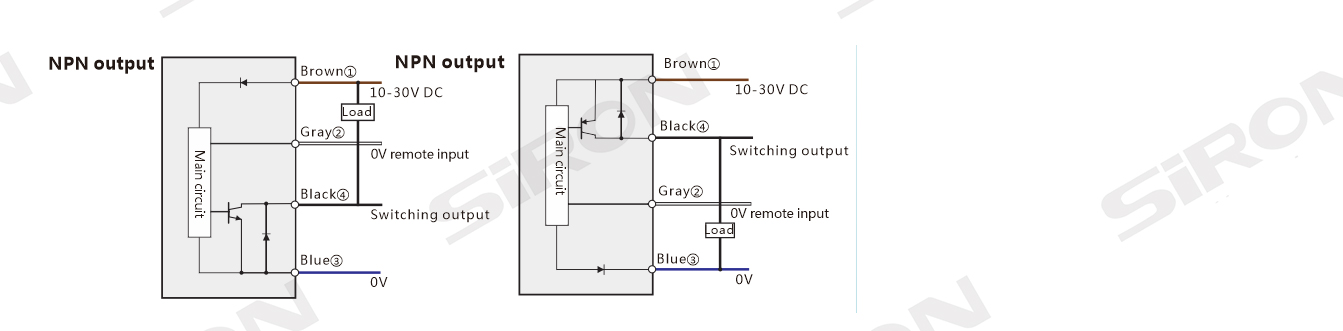

Wiring diagram
