SiRON K010-1～K010-2 Series Laser Sensor Universal Sensor IP67

Name: SiRON K010-1～K010-2 Series Laser Sensor Universal Sensor IP67
Brand: SiRON
Rating: 5.0 (66 reviews)

Features:

* High speed response, suitable for detecting high speed moving objects. The diameter of the spot on the beam is only 30mm (at 30m)

Protection grade Ip67.

Product Description

About selection

Selection example: K010-1 indicates the K010 series, serial number 1, with NPN output；

K010-1P indicates the K010 series，serial number 1, with PNP output.

Specifications

Name		Laser sensor(universal)
Model	NPN	K010-1	K010-2
	PNP	K010-1P	K010-2P
Appearance
Detection mode		correlation	Regression reflection
Detection distance		30m	10m
Spotsize		φ 3 0 m m / 3 0 m	φ10mm/10m
Switching mode		L.on (light entry action)/ D.on (light blocking action) can be switched
indicator light		Output indicator light: Orange; Laser indicator light: Green
Response time		0.25ms

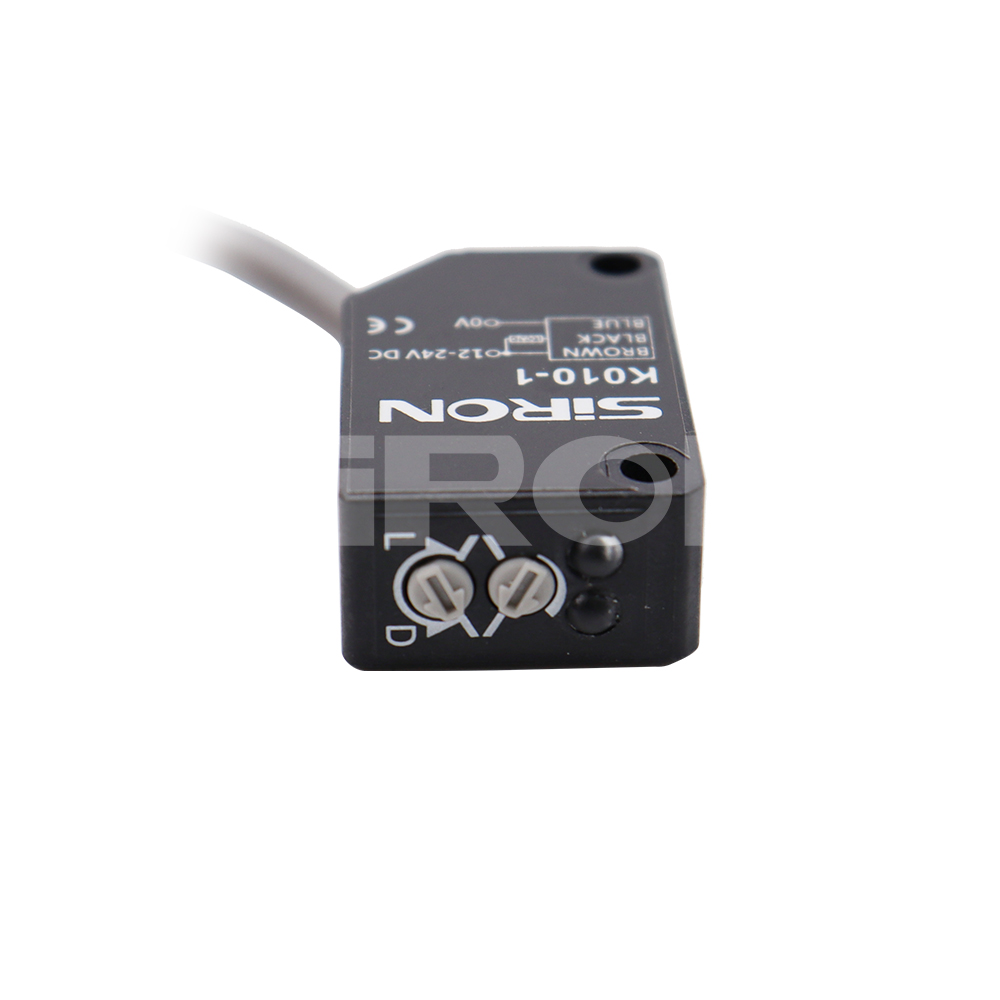

Sensitivity regulation		single-turn potentiometer
Light source		Laser 光 6 5 0 n m
Laser class		Class1	Class2
Operating voltage		12~24VDC±10%
Consumption current		≤30mA	≤20mA
Ambient temperature		- 1 0 ℃ ~ + 5 0 ℃ , No freezing
Ambienthumidity		3 5 % ～ 8 5 % R H , No coagulation
Shock resistance		1 0 ~ 5 5 H z Amplitude 1 . 5 m m
Impact resistance		50G(500m/s²)
Protection dass		IP67

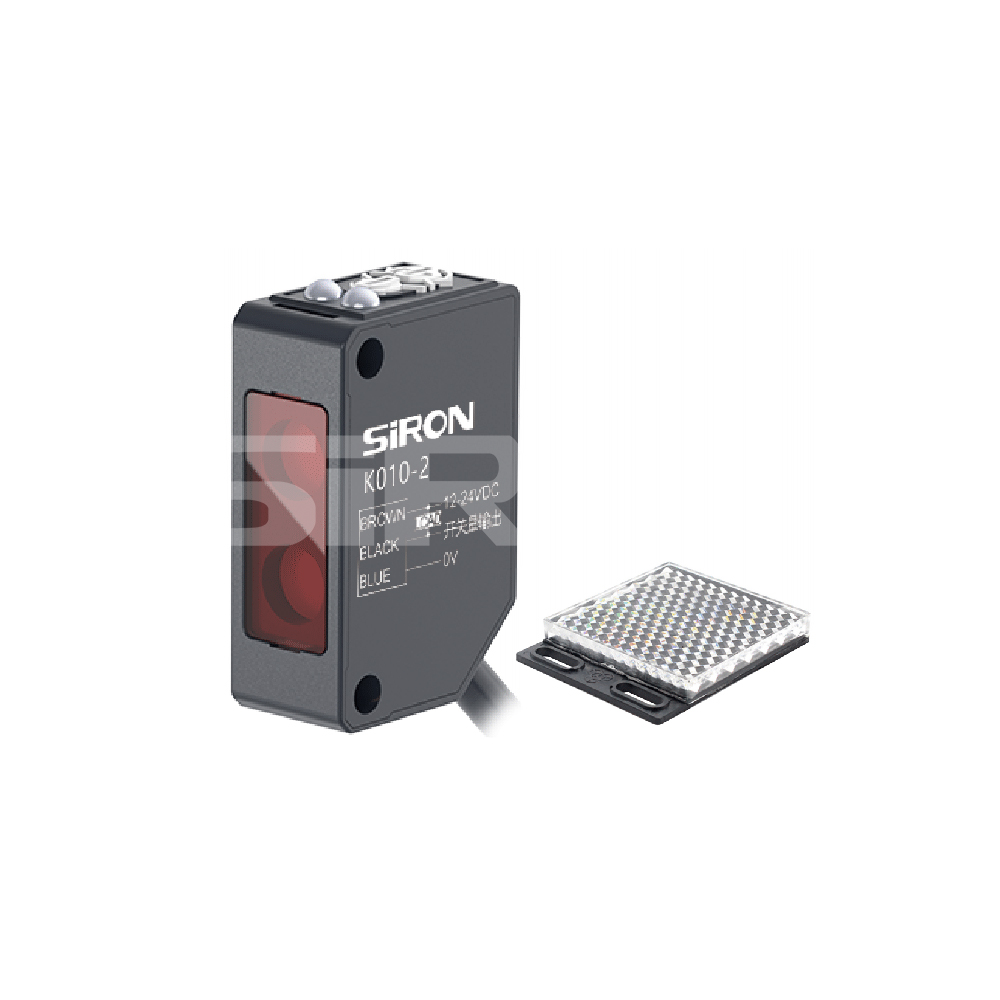

AcCessories		Bracket, screw	Bracket, screw, reflector
Cablelength		2M
