K011-1～K011-2 Series
SiRON
9033000090
About selection
Selection example: K011-1 indicates the K011 series, serial number 1, with NPN output.
K011-1P indicates K011 series, serial number 1, with PNP output.
Specifications
| Name | Laser sensor | ||||
Model | NPN | K011-1 | K011-2 | ||
| PNP | K011-1P | K011-2P | |||
| Light spot | Point spot | Line sport | |||
| Spot size | 1.5mm | 190mm (When the detect distance is 300mm) | |||

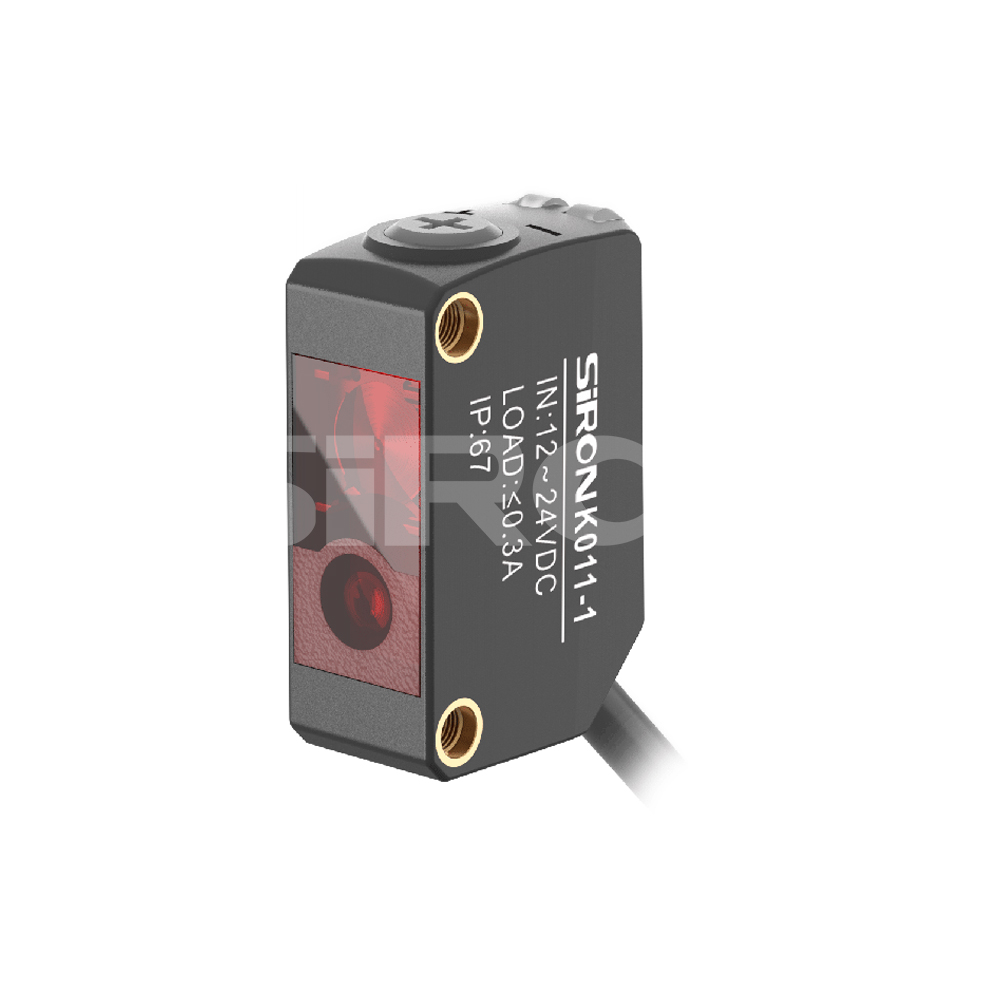

Appearance |
|
| |||
| Type | Diffuse reflection (background suppression type) | Light source(wavelength) | Laser (655nm) | ||
| Detection distance | 30～300mm | Ambient temperature | Operating temperature: -25～+55℃ Storage temperature: -40～+70℃ (no freezing or condensation) | ||
| Set range | 40~300mm(White paper 100mm);40~280mm(Black paper 100mm) | ||||
| Supply voltage | DC 12~24V ±10% Fluctuation (P-P) below 10% | Ambient humidity | Operating humidity: 35～85% RH Storage humidity: 35～95% RH (no freezing or condensation) | ||
| Output residual voltage | Residual voltage below 1V (load current less than 10mA); | ||||
| Residual voltage below 2V (load current less than 10 to 100mA) | Protective loop | Power reverse connection protection / load short circuit protection / Mutual interference prevention function / output reverse connection protection | |||
| Response time | Action · Reset: Less than 0.5ms | ||||
| Black and white error | 3 % ( Distance 1 6 0 m m ) | Protection dass | IP67 | ||
| Stress difference | Less than 3% of the rated detection distance | Material | Shell: Polybutylene terephthalate; Display/Lens section: Polyester composite rubber | ||
| Consumption current | Below 3 0 m A | Cable length | 2M | ||
Controloutput | Load power supply voltage: DC 26.4V max, Load current: 100mA,Leakage current: 10μA maxmax, Open collector output NPN/PNP output varies by type)ON when the white wire is not exposed to light / ON when the white wire is exposed to light and the blue wire is shielded | ||||
Example
Detect fast-moving objects The confirmation of the package passing
through the conveyor belt

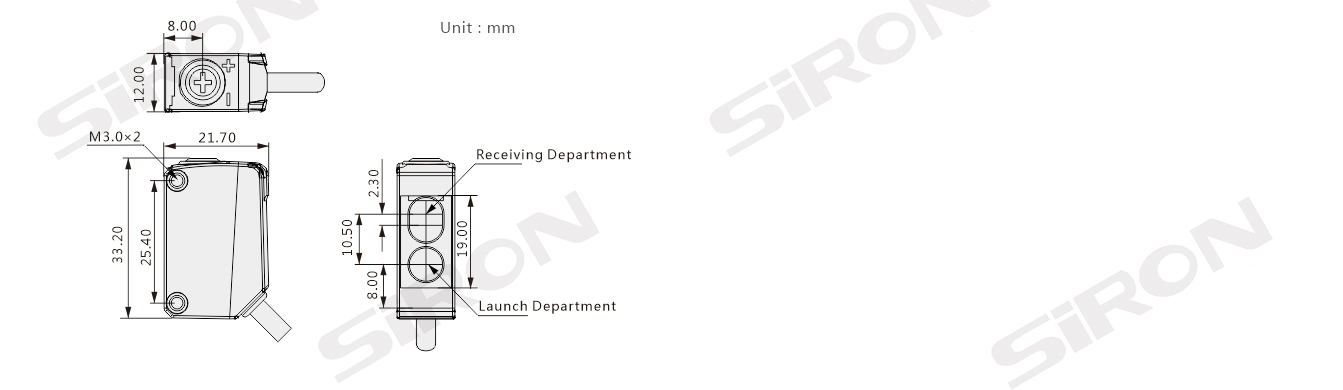

Dimensions

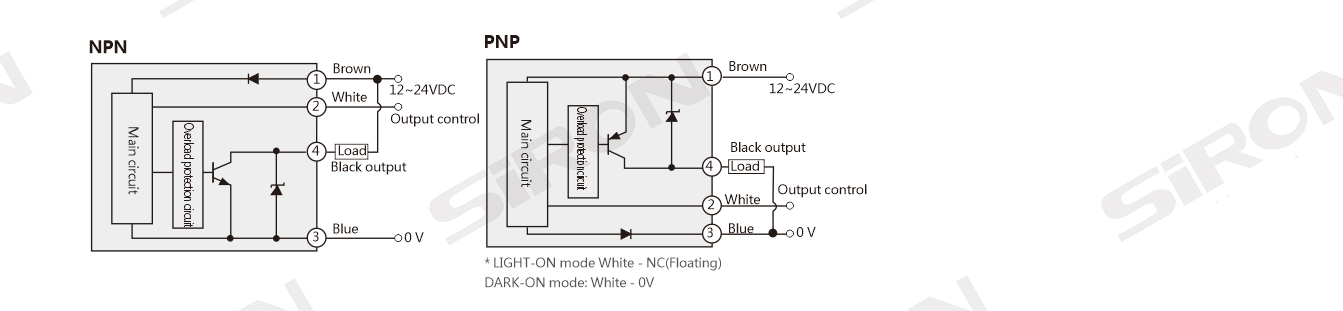

Wiring diagram
