SiRON K011-34~K011-36 Series TOF Long Range Laser Sensor

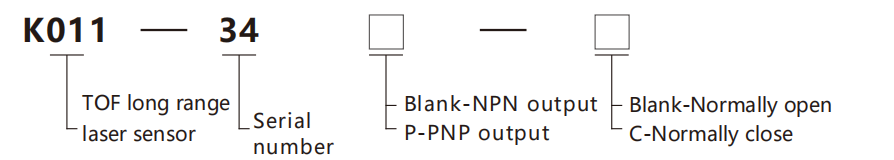

About selection

Selection example: K011-34 indicates the K011 series, serial numbers 34, with NPN output,

                                             normally open.

                                             K011-11-34P indicates K011 series, serial numbers 34, with PNP output.

                                             normally close.

Specifications

Name		TOF long range laser sensor
Model	NPN    N.O	K011-34	K011-35	K011-36
	NPN    N.C	K011-34C	K011-35C	K011-36C
	PNP    N.O	K011-34P	K011-35P	K011-36P
	PNPN.C	K011-34P-C	K011-35P-C	K011-36P-C
Type		Background suppression type

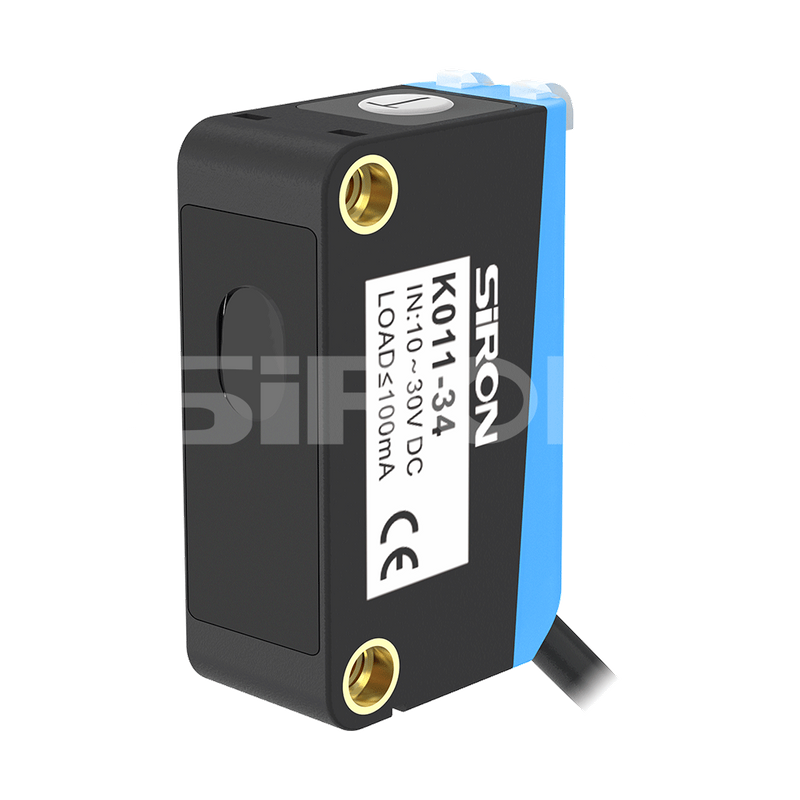

Appearance
Detecion distance		50~1000mm	50~2000mm	50~4000mm
Spot size		Approximately φ 300 mm (when the distance is 100 0 0 mm)	Approximately φ 600 mm (when the distance is 200 0 0 mm)	Approximately φ140mm(when the distance is 4000mm)
Dead zone		50mm
De ecion range seting		keypad
Measurement acuracy		5mm
Re solution		1mm
Operating vllage		10~30V     DC
Type oflight		infrared light
Laser grade		Class 2
No-load power consumpfion		≤0.5VA
Power-on delay		3S
Load curent		≤100mA
Swiching voliage drop		≤2V
Swiching frequency		30Hz
Light source wavelength		940nm
Plot lamp		Yellow light output; Green light: Power/teaching indication
Ani-opbcalinterference		100K    Lux.
Protection circuit		Overload protection/short-circuit protection/reverse polarity protection
Operating temperature		-20℃~60°C
Storage temperature		-40°C~70°C
Materia		Shell: ABS; Lens material: PMMA
Line length		2m
Cable		PVC cable 3×0.18mm²
Protection class		IP66

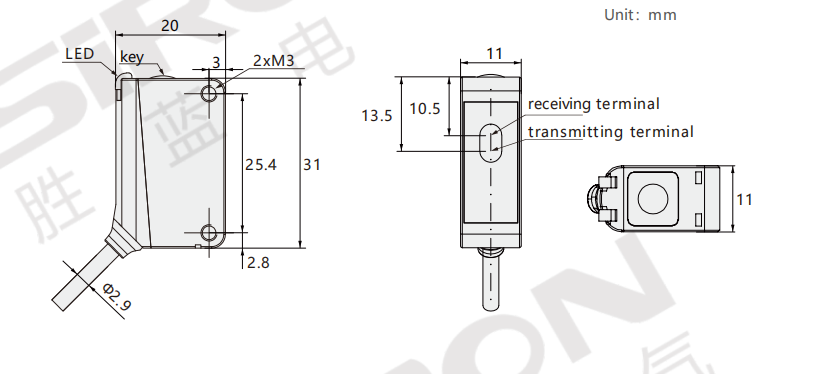

Dimension

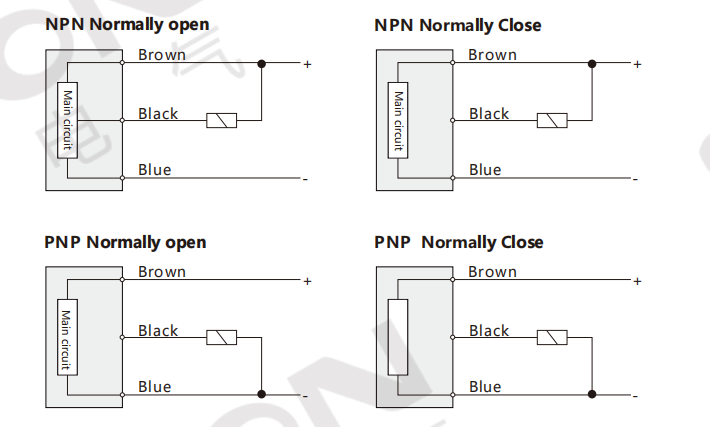

Wiring diagram
