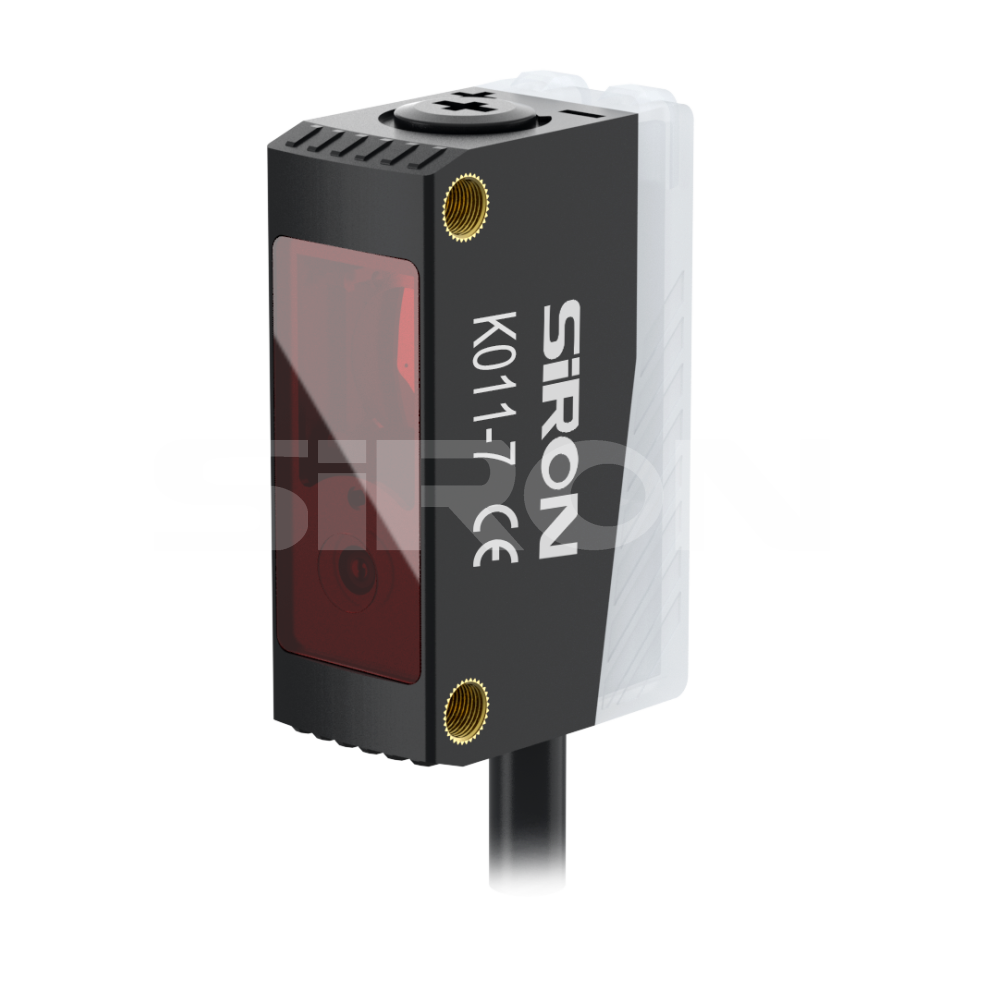

SiRON K011-6～K011-7 Series Laser Sensor Background Suppression Function

About selection

Selection example: K011-6 indicates the K011 series, serial numbers 6, with NPN output.

                                      K011-11-6P indicates K011 series, serial numbers 6, with PNP output.

Specifications

Name		Laser sensor
Model	NPN	K011-6	K011-7
	PNP	K011-6P	K011-7P
Type		Diffuse reflection (background suppression type)
Appearance			Upgrade
Distance of detection		1~15cm	20～350mm
Set distance		2～15cm	50～350mm
Spot size		Aboutφ1 . 5mm/15cm	φ 3 . 5 m m / 3 5 0 m m
Minimum detector		/	φ0.5mm
Operating voltage		10～30V    DC	10-24V     DC±10%
Residual voltage		<1.5V	<1.5V
Consumption current		≤20mA	≤20mA
Load current		≤100mA	≤100mA
Light source		φ)	Laser 6 5 0 n m
激光等级 Laser class		Class2	Class2
Indicator light		Work indicator light: Green; Action indicator light: Red	Output indicator light: Red; Work indicator light: Green
Sensitivity regulation		6-turn potentiometer	6-turn potentiometer
utput mode		Open collector of NPN or PNP	Open collector of NPN or PNP
Switching mode		L.on(light-entering action)/D.on(light-blocking action) can be switched	L.on(light-entering action)/D.on(light-blocking action) can be switched
Response time		≤2ms	2ms
Difference range		≤5%SN	5%
Ambient illumination		Incandescent lamp: below 3000Lux/Sunlight: below 5000Lux	Sunlight exposure ≤ 20,000 lux, fluorescent lamp exposure 1000Lux; LED 600Lux
Ambient temperature		-25 ℃ to +55℃, no freezing; Storage temperature: -30 to +70℃	- 10℃~+50℃,No freezing
Ambient humidity		35% to 85%RH, no condensation; Storage: 35% to 95%RH	3 5 % ～ 8 5 % R H , No coagulation
Circuit protection		Power reverse polarity protection, output reverse polarity protection, surge protection, short-circuit protection	Reverse connection protection, overcurrent protection (short-circuit protection)
Protection class		IP65	IP65
Vibration resistance		10 to 50Hz, 0.5 mm amplitude, 2 hours each in the X, Y, and Z directions	10 to 55Hz, amplitude 1.5 mm, 2 hours each in the X, Y and Z directions
Impact resistance		/	50G(500m/s⊃2;)
Insulation resistance		/	Between all power connection terminals and the housing, 20MΩ or above (based on 250V DC)
Withstand voltage		±1000V   50/60Hz   60s	/
Static electricity		±8000V(air discharge)	/
Group pulse		±2000V(5kHz/50kHz)	/
Surge		/	150V
Install		/	Side-by-side installation: 2 side by side closely attached; Opposite installation: 700mm in opposite direction
Material		PBT+ fiberglass (housing), PM MA(lens)	PBT+ glass fiber (shell) PMMA(Lens)
Cable		3-core cable	4-core cable
Cable length		2M	2M
Accessories		screwdriver	Bracket, screw

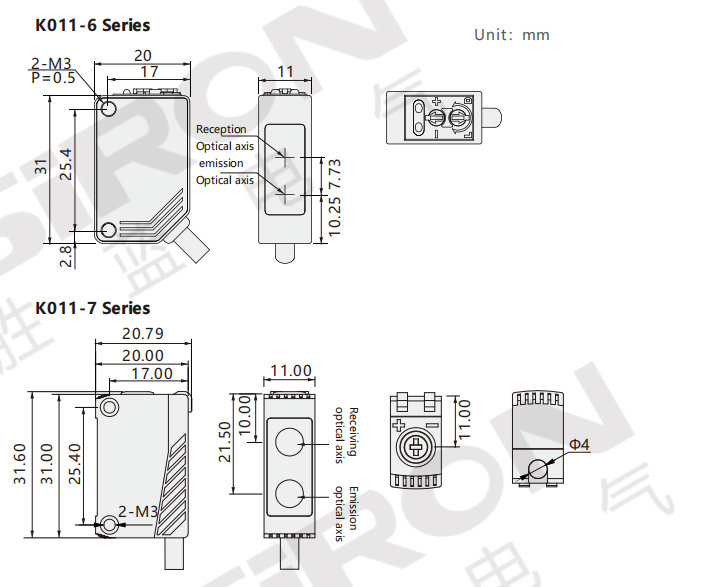

Dimension

Wiring diagram
