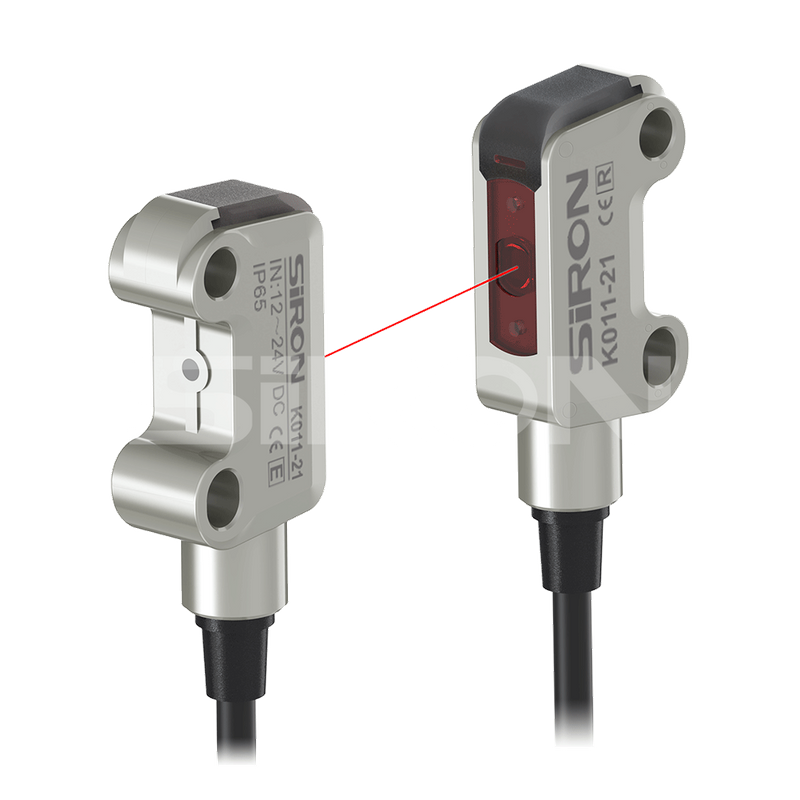

SiRON K011-21 Series Ultra-small Laser Sensor

Name: SiRON K011-21 Series Ultra-small Laser Sensor
Brand: SiRON
Rating: 5.0 (41 reviews)

Features:

* Accurate detection of objects without interference from target color and background color;
* The perfect application of BGS function, even when changing production on the production
line with different color workpiece flow, there is no need to adjust the detection distance;
* Can be easily adjusted while observing the point;
* Small size, save space;
* Easy to install, using standard M3 screw installation;
* Adopt a unique stability measurement method;
* Stainless steel SUS316L housing.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K011-21 Series
Brand:
SiRON
Code:
9033000090

Laser Sensor Ultra-small laser sensor BGS function IP65 small in size

Product Description

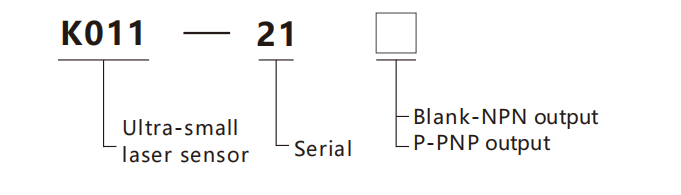

About selection

Selection example: K011-21 indicates the K011 series, serial numbers 21, with NPN output.

K011-11-21P indicates K011 series, serial numbers 21, with PNP output.

Specifications

Name	Uitra-small laser sensor
Model	K011-21	K011-21P
Output mode	NPN	PNP
Appearance
Types of	correlation
Detection distance	1500 mm
Current consumption	30mA max
Spot size	φ 3.5mm (when the distance is 500mm); Φ7mm(when the distance is 1000mm)
Accept an assignment	Less than 20% of the detection distance
Light source(wavelength)	Laser
Supply voitage	DC 12~24V
Response time	1ms
Ambient temperature	-10~+50℃
Ambient humidity	35~85%
Store temperature/humidity	-20~+60℃/35%~95%
Vibration resistance	10 to 55Hz, dual amplitude 1.5mm, 1 hour each in the X/Y/Z directions
impactresistance	Double amplitude of 500m/S⊃2;, 3 times each in the X/Y/Z directions
Class of protection	IP65
Protection circuit	Positive and negative pole reverse connection protection, load short-circuit protection
Output light	Red L E D
Power indicator light	Green L E D
Sensitivity regulation	single-turn potentiometer
N.O / N.C mode	The normally open (light-entering action) and normally closed (light-blocking action) modes are optional
Connection mode	Wire lead-out type (standard wire length 2m)
Shell material	SUS316L
