SiRON K011-9 Series Laser Sensor Correlation

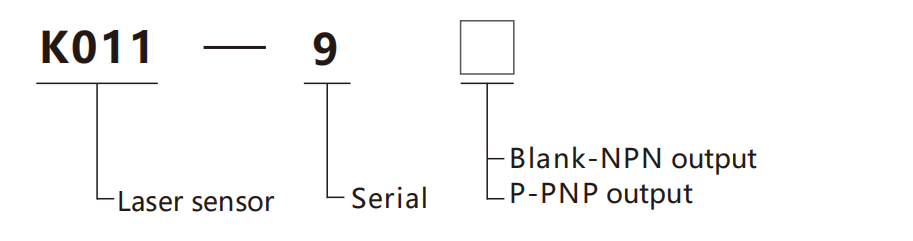

About selection

Selection example: K011-9 indicates the K011 series, serial numbers 9, with NPN output.

                                      K011-11-9P indicates K011 series, serial numbers 9, with PNP output.

Specifications

Name                                                                                                                Laser sensor
Model	K011-9	K011-9P
Output mode	NPN	PNP
Appearance
Type	correlation
Detection distance	10m
Current consumption	30mA max
Spot size	About 1 x 2 m m
Accept an assignment	Less than 20% of the detection distance
Light source(wavelength)	Laser(650nm)
Supply woltage	DC     12~24V±10%
Response time	≤1ms
Ambient temperature	-10~+50℃
Ambient humidity	35~85%
Store temperature/humidity	20~+60℃/35%~95%
Vibration resistance	10 to 55Hz, dual amplitude 1.5mm, 1 hour each in the X/Y/Z directions
Impactresistance	Double amplitude of 500m/S⊃2;, 3 times each in the X/Y/Z directions
Class ofprotection	IP65
Laser grade	classll
Output light	Red L E D
Power indicator light	Green LED
Sensitivity regulation	single-turn potentiometer
N.O / N.C mode	The normally open (light-entering action) and normally closed (light-blocking action) modes are optional
Connection mode	Wire lead-out type (standard wire length 2m)
Shell material	PC

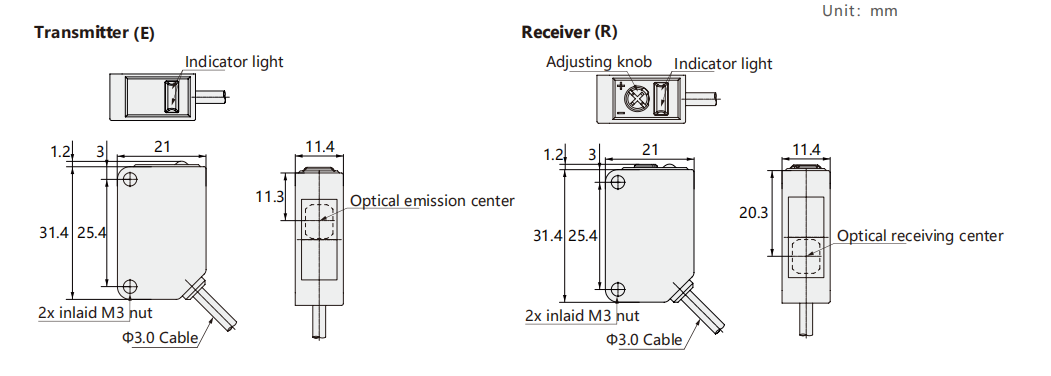

Dimension

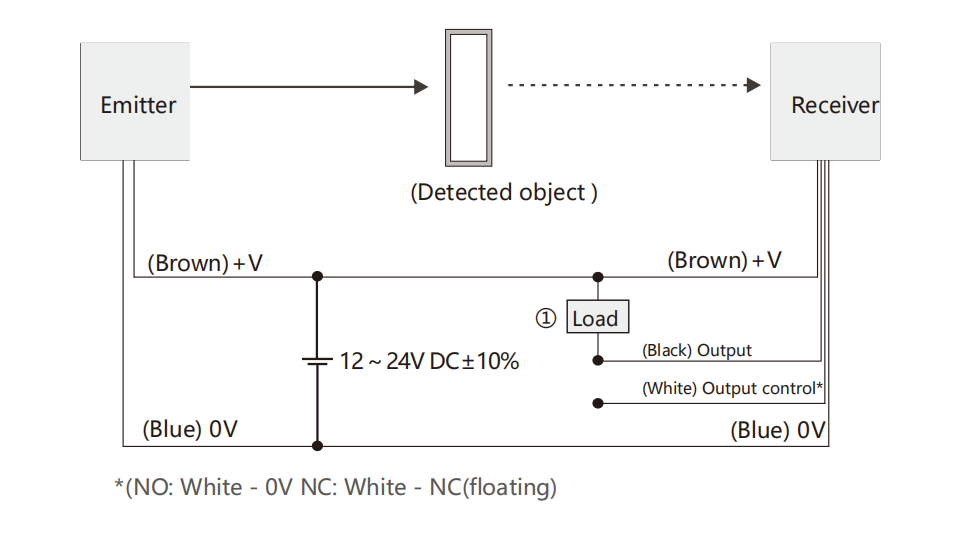

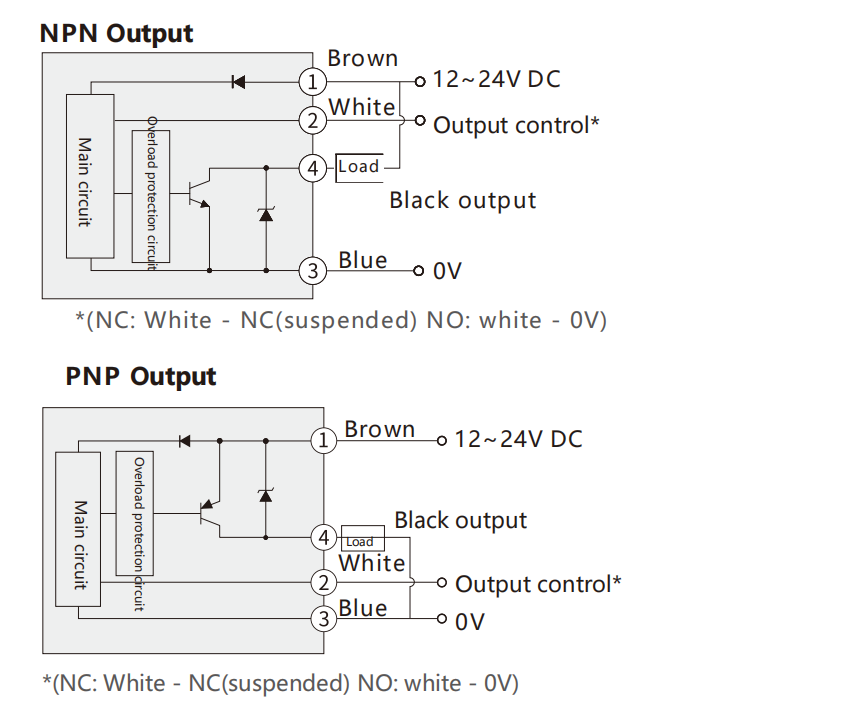

Wiring diagram
