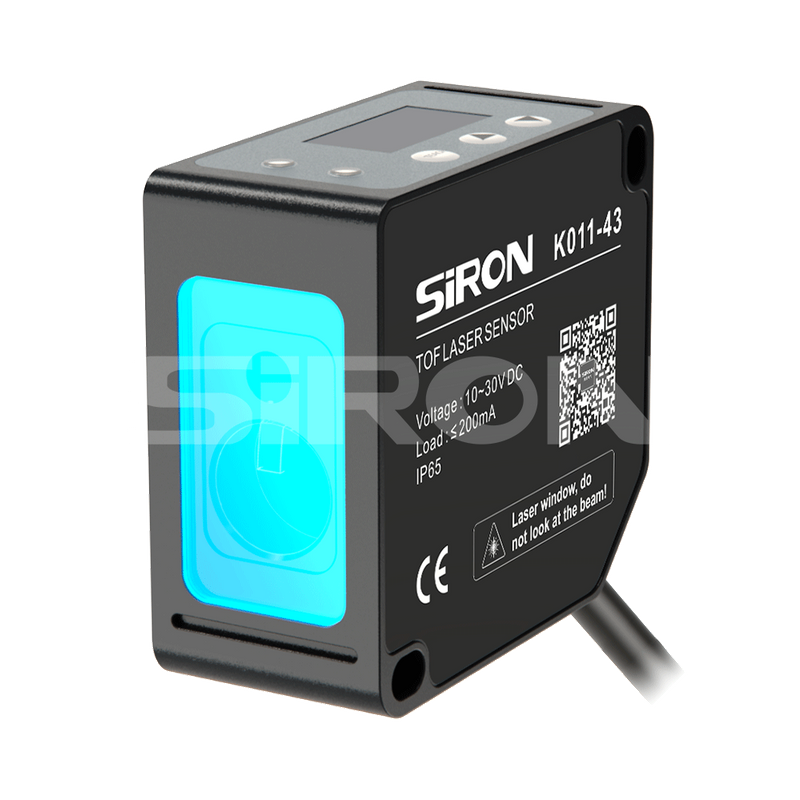

SiRON K011-43 Series TOF Long Range Laser Sensor

Name: SiRON K011-43 Series TOF Long Range Laser Sensor
Brand: SiRON
Rating: 5.0 (31 reviews)

Features:

* TOF long distance detection, based on time-of-flight algorithm;
* Self-developed high-performance laser and optical system;
* HD digital display, easy to set, more high-end;
* Effectively avoid measurement errors caused by foundation deflection;
* IP65 protection grade, meet outdoor and harsh environment use, tight and durable.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K011-43 Series
Brand:
SiRON
Code:
9033000090

Laser Sensor TOF long range laser sensor long detection distance IP65 HD digital display easy to set

Product Description

About selection

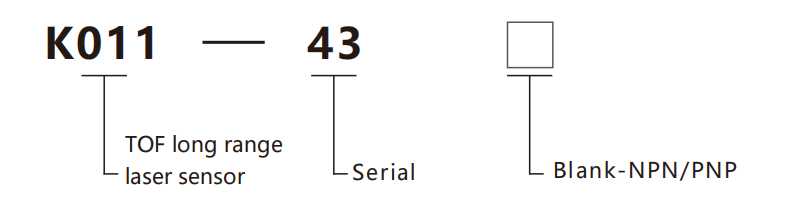

Selection example: K011-43 indicates the K011 series, serial numbers 43, with NPN / PNP output.

Specifications

Name	TOFlong range laser sensor
Model	K011-43

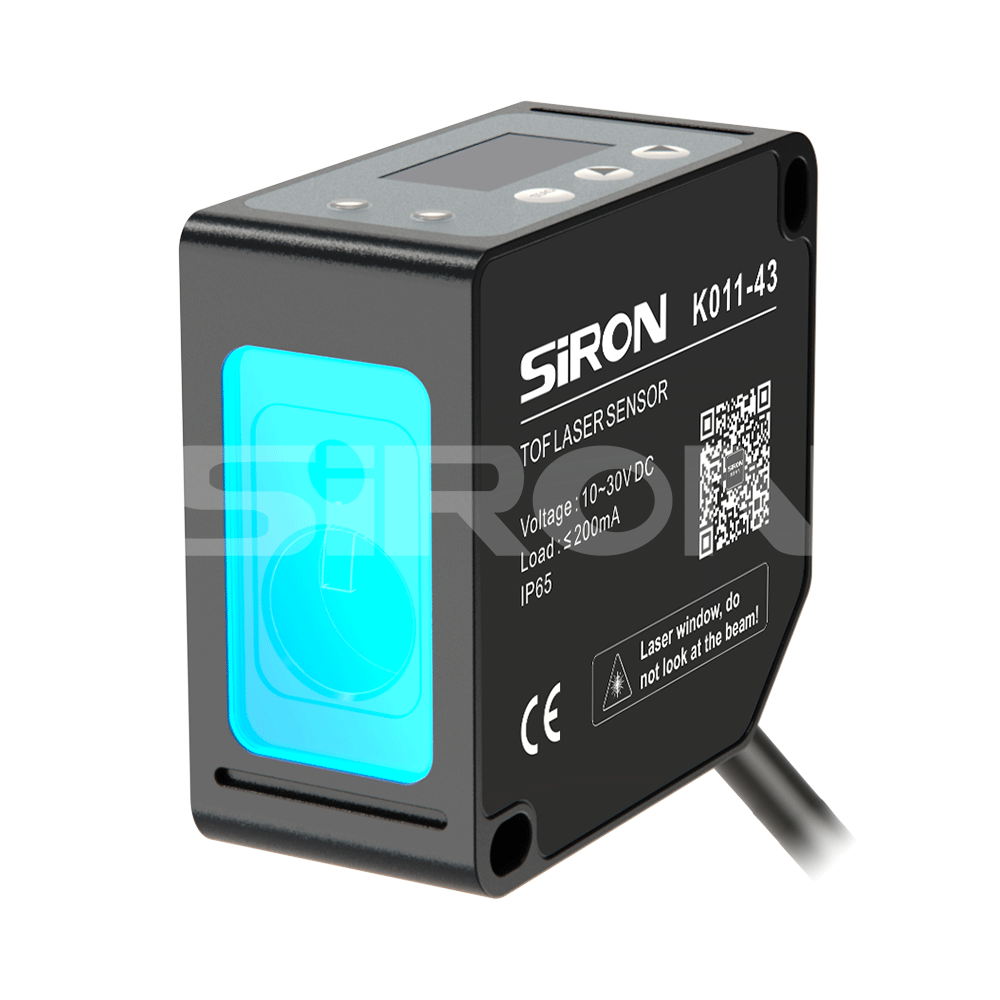

Appearance
Detection distance	50mm~5m
Spot size	5 x 1 0 m m (when the setting distance is 5 m )
Dead zone	50mm
Measurement accuracy	±2mm
Resolution	1mm
Operating voltage	10~30V DC
Power dissipation	0.8VA
Loadcurrent	≤200mA
Swiching volitage drop	≤2V
Swiching frequency	0.5Hz
ight source wavelength	650nm
Lasergrade	Class 2
Ant-opticalinterference	10K Lux.
Protection cicuit	Overload protection / Short circuit protection / Reverse polarity protection
Operating temperature	-10℃~60%
Storage temperature	-20℃~70℃
Material	Outer shell: A B S; Transparent mirror material: Glass
Line length	2m
Cable	PVC cable 4*0.25mm²
Protection class	IP65
