SiRON K011-31 Series Laser Sensor Background Suppression Type

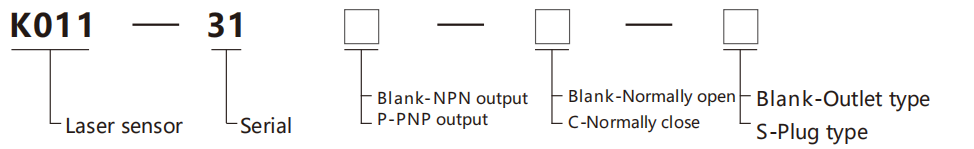

About selection

Selection example: K011-31 indicates the K011 series, serial numbers 31, with NPN output,

                                             normally open, outlet type.

                                             K011-11-31P indicates K011 series, serial numbers 31, with PNP output.

                                             normally open, plug type.

Specifications

Name		Lasersensor
Model	NPN    N.O	K011-31	K011-31-S
	NPN   N.C	K011-31C	K011-31C-S
	PNP   N.O	K011-31P	K011-31P-S
	PNPN.C	K011-31P-C	K011-31P-C-S
Connection fom		Outlet type	Plug type

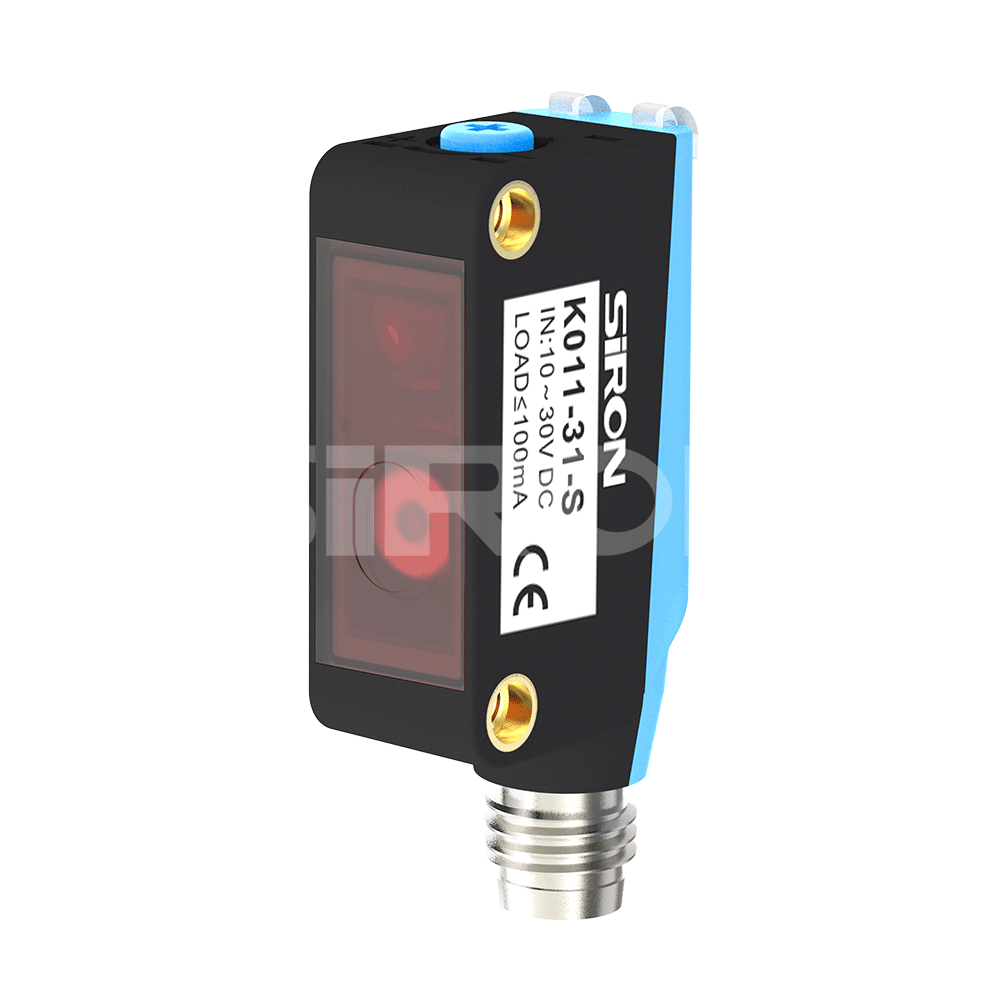

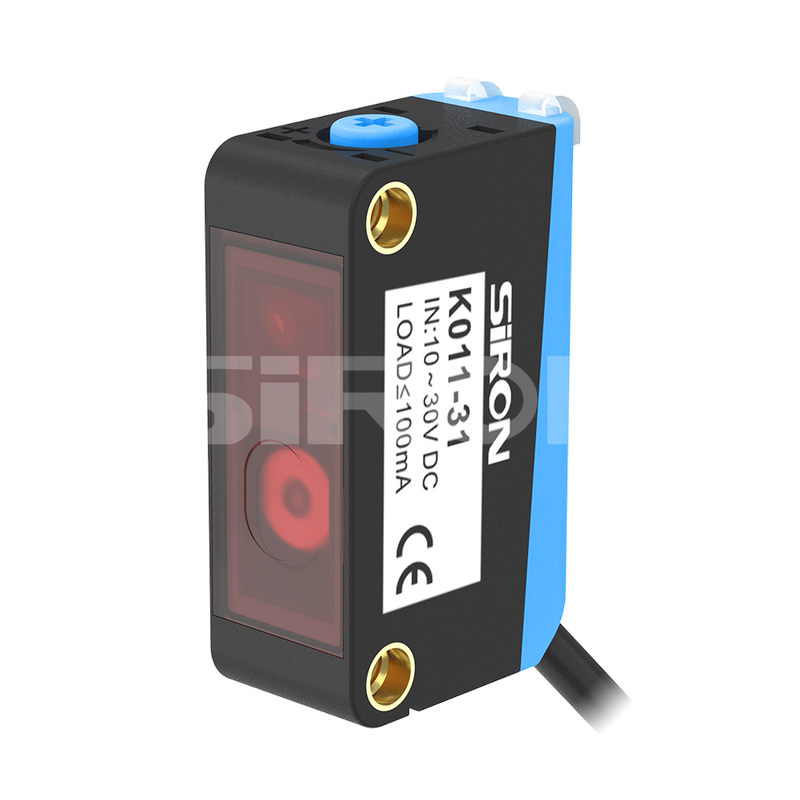

Appearance
Type		Background suppression type
Detecion distance		10～250mm
Switching frequency		1000Hz
Operating voltage		10~30V    DC
Type of ight		Laser 6 5 0 n m
Laser grade		Class 1
Reaction time		≤1ms
Blind zone distance		<10mm
Spot size		A circle with a diameter of approximately 1mm (at 300mm)
Load current		100mA
Power-on delay		<300ms
Sensitive regulaion		Multi-turn potentiometer
Anti-optical interference		<5000Lux.
Ambient temperature		-25~55℃
Ambient humidity		35~85%
Shell material		ABS
Lens material		PC
Protection class		IP65
LEDindication		Yellow: Output; Green: Power Supply
Cable length		2m
Cable		Outgoing type :PVC cable 3×0.18mm²; Plug-in type: M8 connector

Example

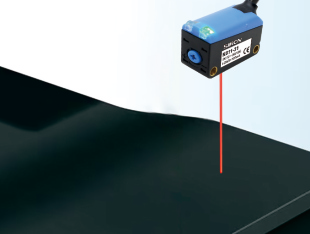

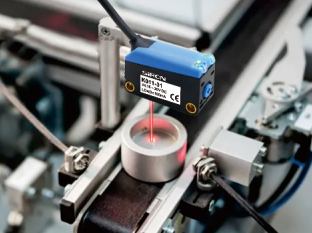

Positioning and detection of tiny parts                                      Detection of flowing plates

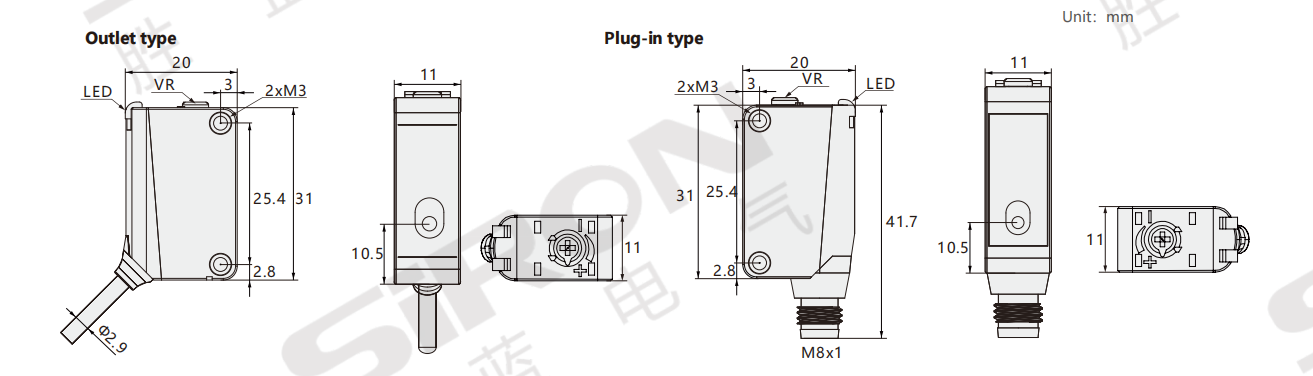

Dimension

Wiring diagram
