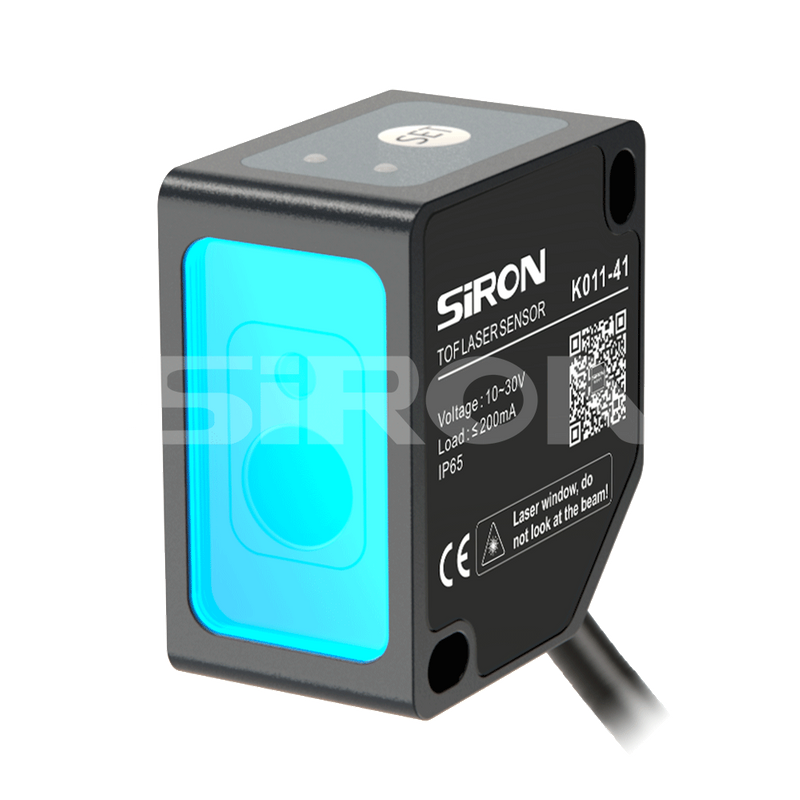

K011-41~K011-42 Series
SiRON
9033000090

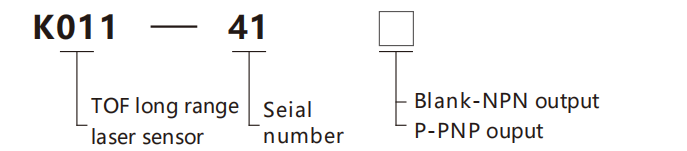

About selection

Selection example: K011-41 indicates the K011 series, serial numbers 41, with NPN output.
K011-11-41P indicates K011 series, serial numbers 41, with PNP output.
Specifications
Name | TOF long range laser sensor | ||
Model | NPN | K011-41 | K011-42 |
| PNP | K011-41P | K011-42P | |

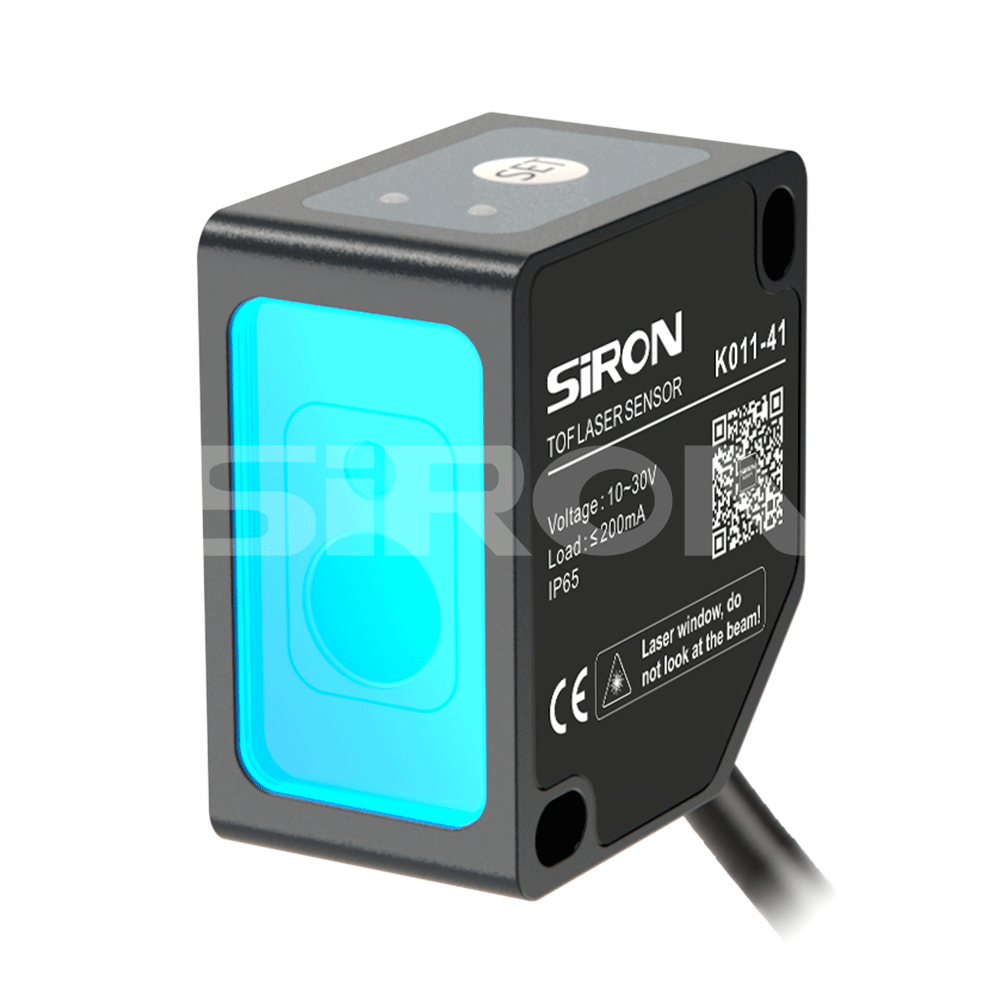

| Appearance | ![]() ![]() | ||
Light source wavelength | Red light 6 5 0 n m | Red light 8 0 8 n m | |
Detection distance | 50mm~5m | ||
Spot size | 8 x 1 0 mm (at a distance of 5 m) | ||
Dead zone | 50mm | ||
Measurement accuracy | 3% | ||
Resolution | 1cm | ||
Lasergrade | Class 2 | ||
Operating volage | 10~30V DC | ||
No-oad current | ≤50mA | ||
Load current | ≤200mA | ||
Switching voliagedrop | ≤2V | ||
Switching frequency | 100Hz | ||
Ant-opticalinterference | 100K Lux. | ||
Prolecfon crcuit | Overload protection / Short circuit protection / Reverse polarity protection | ||
Operating temperature | -10℃~50% | ||
Storage temperature | -20℃~70℃ | ||
Matenial | Shell: ABS; Lens material: Glass | ||
Lnelength | 2m | ||
Cahle | P V C cable 4 x 0 . 2 5 m m ⊃2; | ||
| Protection class | IP65 | ||
Dimension

Wiring diagram
