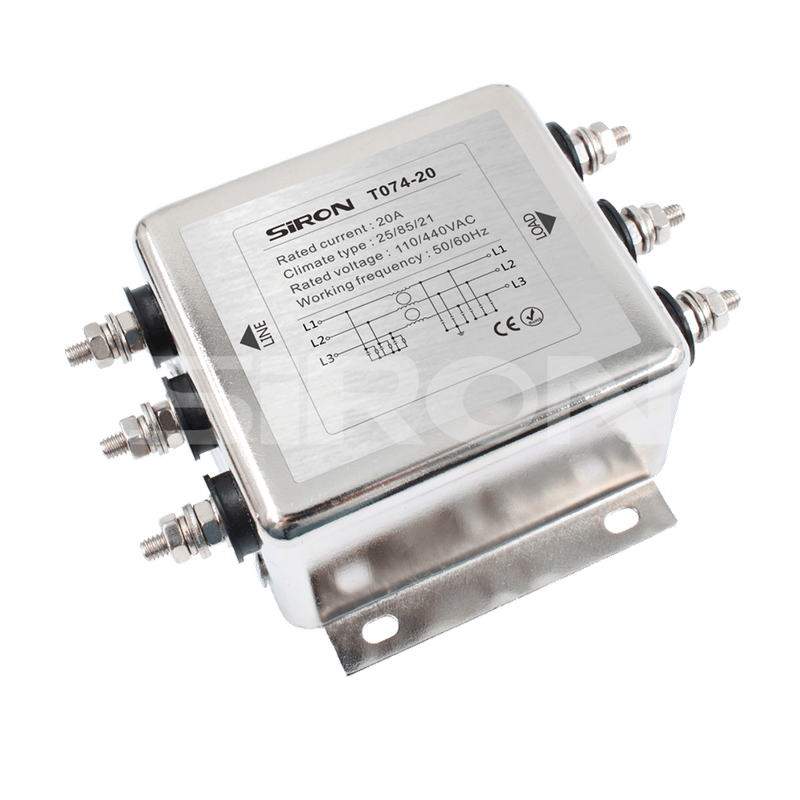

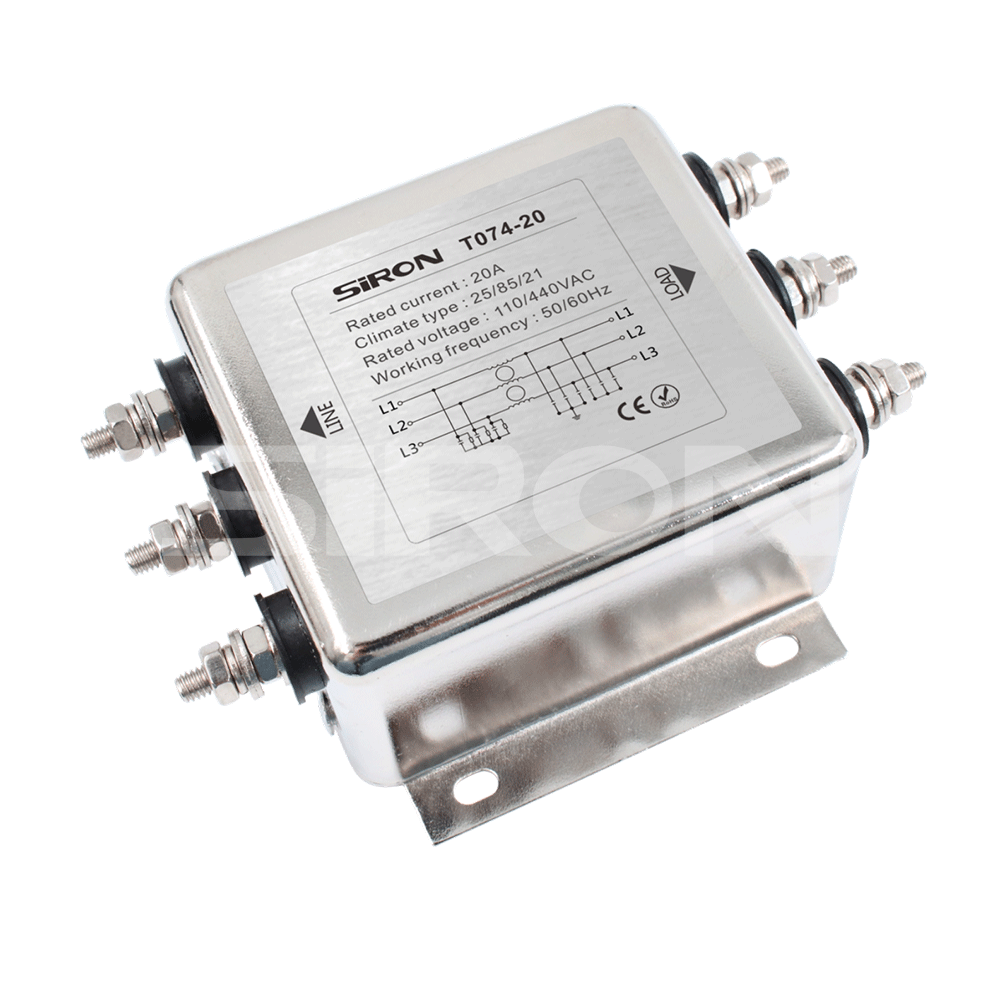

T074/T074-1
SiRON
8536901100
Specifications
| Model | T074-10 | T074-20 | T074-30 | T074-40 | T074-50 | T074-60 | ||||||
| Rated current | 10A | 20A | 30A | 40A | 50A | 60A | ||||||
| Leakage current | 15mA | 2.0mA | ||||||||||
| Voltage rating | 110/440V | |||||||||||
| Operating frequency | 50/60Hz | |||||||||||
| Testing voltage | Wire-wire: 1500VDC; Wire-ground: 2500VAC | |||||||||||
| Insulation resistance | >200MΩ@500VDC | |||||||||||
| Climate type | 25/085/21 | |||||||||||
| Connection method | Screw-fixed type | |||||||||||
| Environment temperature | -25~85℃ | |||||||||||
| Ambient humidity | <85% | |||||||||||
| Model | T074-80 | T074-100 | T074-120 | T074-150 | T074-200 | |||||||
| Rated current | 80A | 100A | 120A | 150A | 200A | |||||||
| Leakage current | <2.0mA | <5.0mA | <8.0mA | |||||||||
| Voltage rating | ||||||||||||
| Leakage current | 380/440VAC | |||||||||||
| Voltage rating | ||||||||||||
| Operating frequency | 50/60Hz | |||||||||||
| Testing voltage | Wire-wire: 1500VDC; Wire-ground: 2500VAC | |||||||||||
| Insulation resistance | >50MΩ@500VDC | |||||||||||
| Climate type | 25/085/21 | |||||||||||
| Connection method | Screw-fixed type | |||||||||||
| Temperature rise | <30℃ | |||||||||||
| Housing material | nickle plated iron | |||||||||||
| Environment temperature | -25~85 | |||||||||||
| Ambient humidity | <85% | |||||||||||

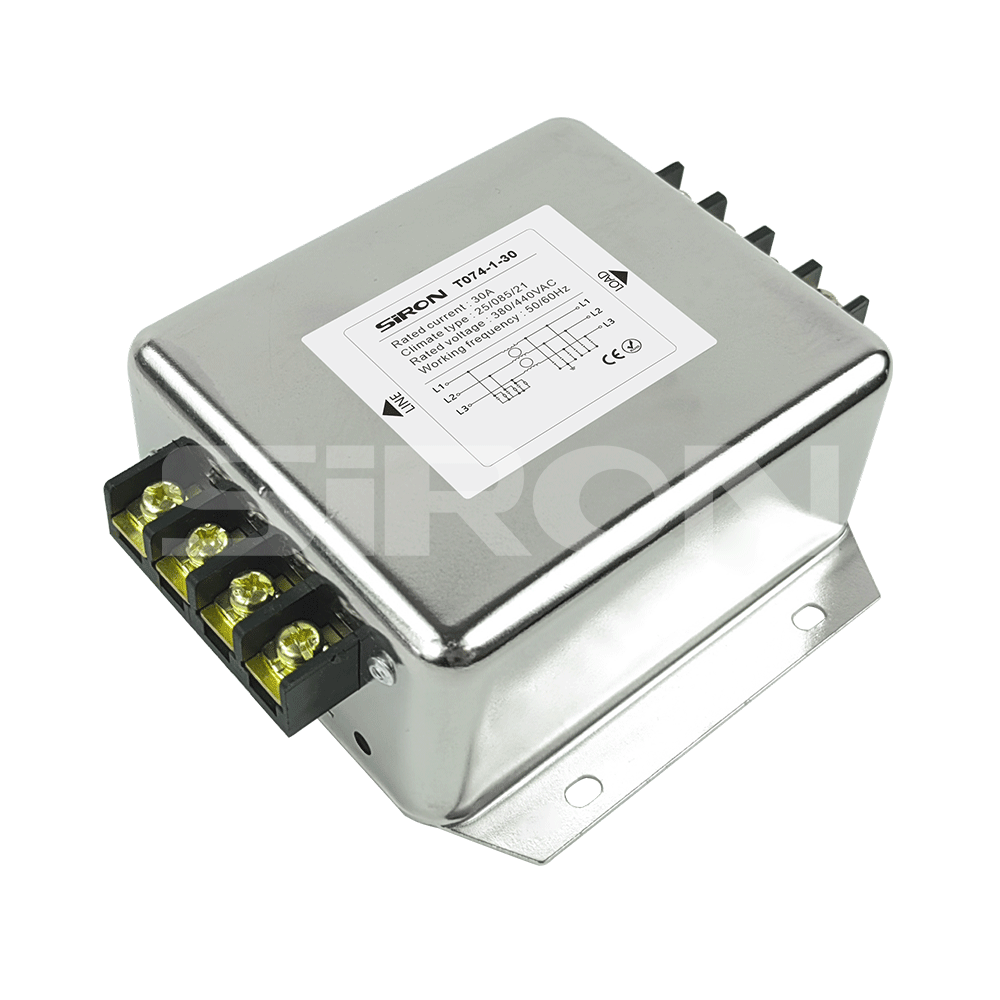

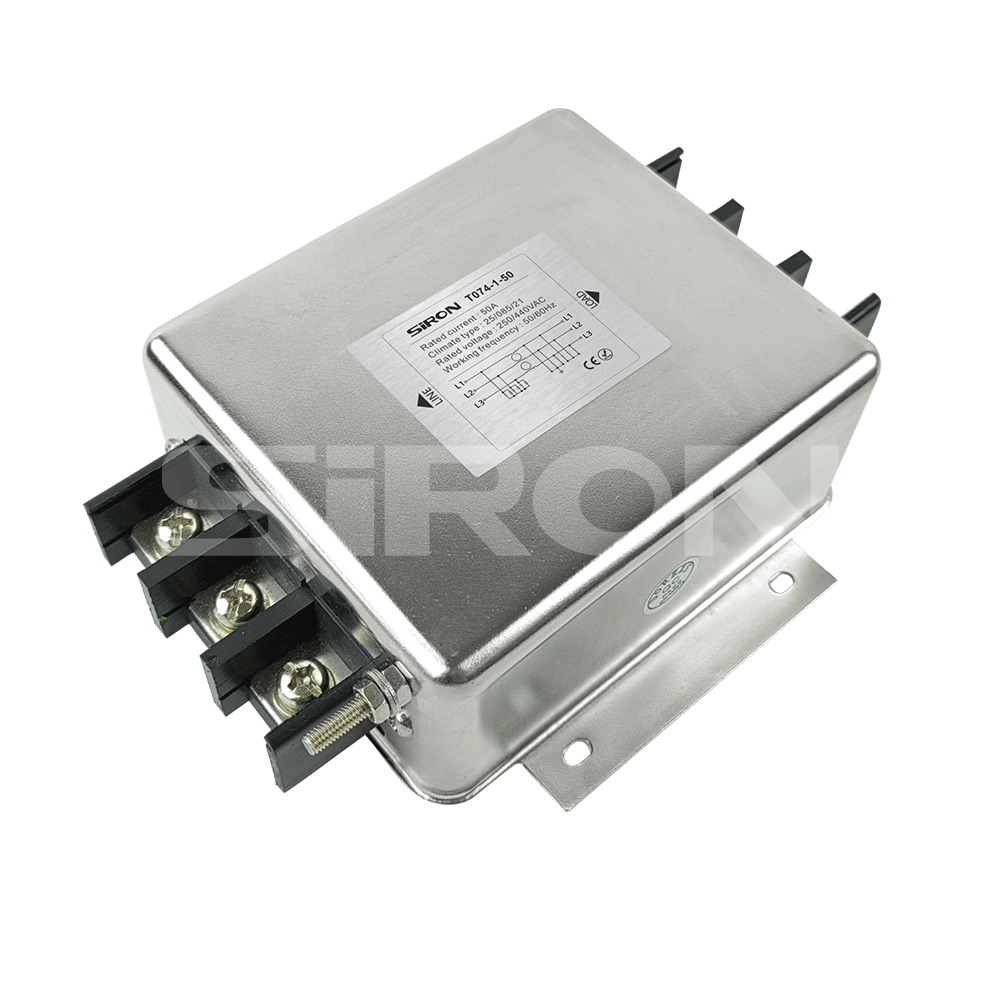

| Model | T074-1-10 | T074-1-30 | T074-1-40 | T074-1-50 | T074-1-60 | ||
| Ratedcurrent | 10A | 30A | 40A | 50A | 60A | ||
| Leakage current | <2.0mA | <3.0mA | <2.0mA | <20mA | <2.0mA | ||
| Voltage rating | 380/440VAC | 380/440VAC | 250/440VAC | 250/440V AC | 250/440VAC | ||
| Operating frequency | 50/60Hz | ||||||
| Testing voltage | Wire-wire: 1500VDC; Line-ground: 2750VAC | ||||||
| insulation resistance | >50MΩ@500VDC | ||||||
| Climate type | 25/085/21 | ||||||
| Connection method | Terminal wiring | ||||||
Dimensions
Wiring Diagram
