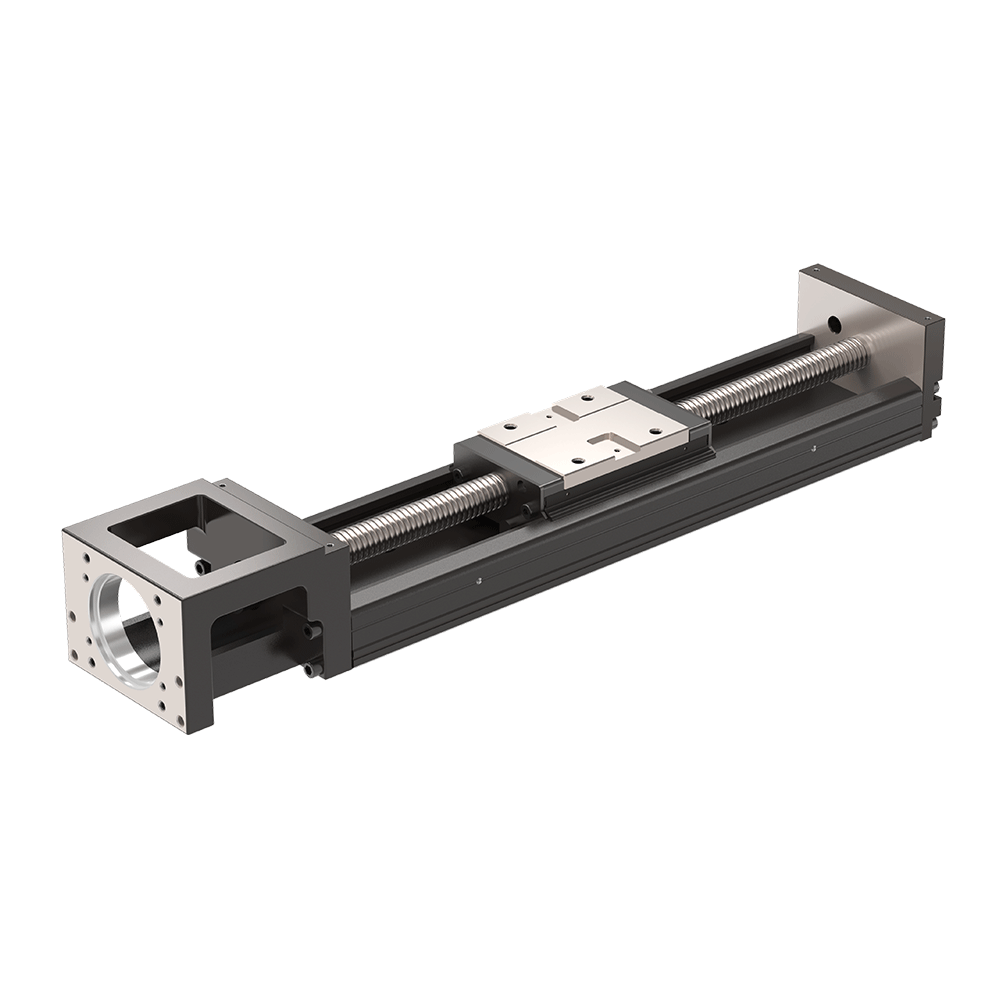

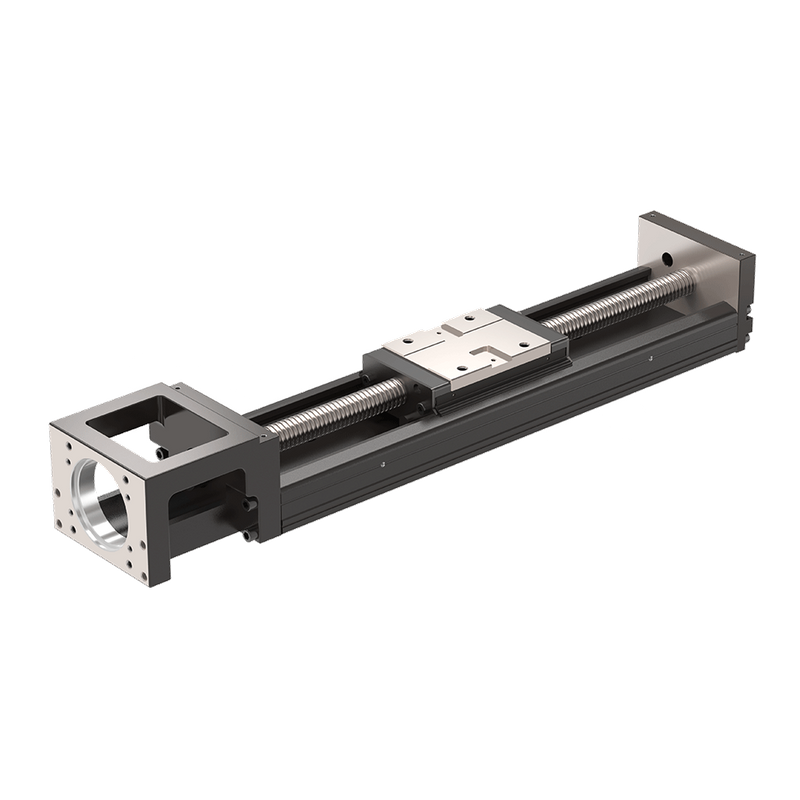

SiRON M369-86 Single Axis Slide Table

Name: SiRON M369-86 Single Axis Slide Table
Brand: SiRON
Rating: 5.0 (56 reviews)

Features:

*Integrating the function of ball screw and rolling guide railAvoid the traditional application selection, installation, debugging complexMiscellaneous, occupy a large space shortcomings.

*The guide bearing system consists of hardened steel balls on both sides Gothic double arc raceway composition, steel ball
and roll The track contact Angle is 45° to ensure that the four directions are the same Carrying capacity

*The body adopts U-shaped section, and the finite element analysis Optimization, so that the product has high rigidity and
knot Compact structure, light weight features.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M369-86
Brand:
SiRON
Code:
9001909090

86mm base 5mm lead 440mm track length 340mm track length 540mm track length

Product Description

About selection

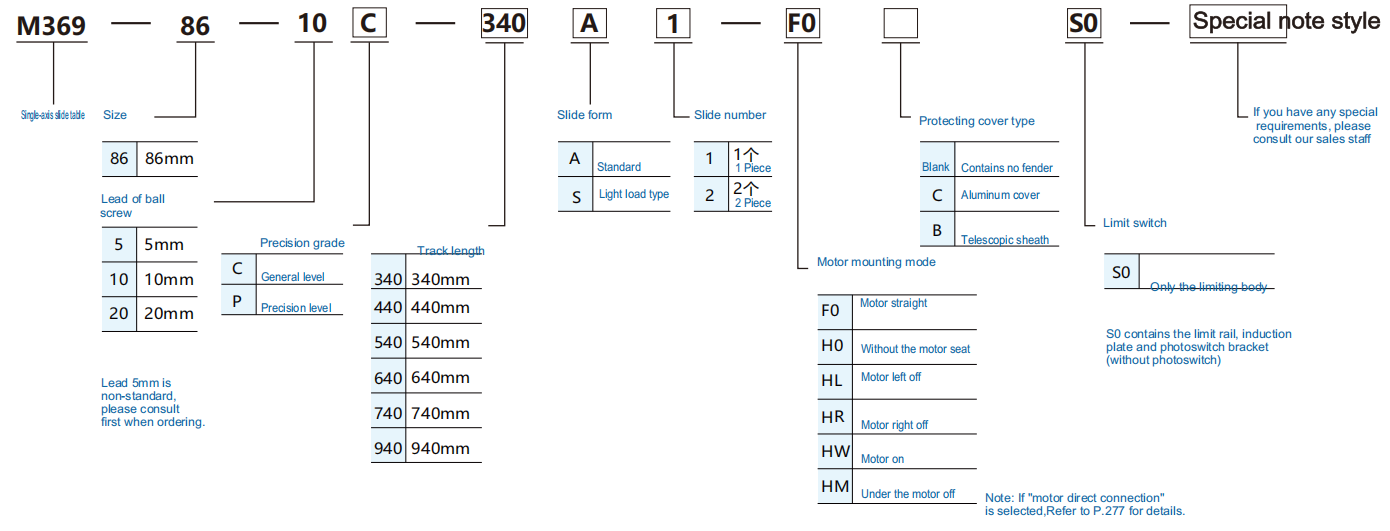

Example of selection: M369-86-10C-340A1-F0S0: M369 series, size 86mm, lead 10mm, precision grade general, body length 340mm, standard sliding seat 1, motor direct connection, no cover, only limit body

Note: If you need photoelectric switches, please order them separately.

Product specification

Model					M369-86 series
Track length					340	440	540	640	740	940
Accuracy class	Reproducibility of localization	Precision			±0.003				±0.003	±0.003
		General level			±0.01				±0.01	±0.01
	Positioning accuracy	Precision			±0.025				±0.030	±0.040
	Parallelism of walking	Precision			±0.015				±0.020	±0.030
	Maximum starting torque				15				17	25
		Generallevel			10				10	10
Maximum speed	Lead of ball screw				10;20
	Speed	Precision			740(1480)**导程20mm时，详见“(0”里的参数					610(1220)
		General level			520(1050)					430(870)
	Ball screw	Nominal outer diameter	Precision/General level		16
		Lead	Precision/General level		10(20)
		Basic dynamic load rating	Precision		7144(4645)
			General level		6429(4175)
		Basic staticload rating	Precision		12642(7655)
			General level		11387(6889)
Load speciicaton	Linear slide	Basic dynamic load rating	Precision/General level	Slide A	31458
				Slide S	21051
		Basic static load rating	Precision/General level	Slide A	50764
				Slide S	29475
		Allowable static moment	TltM₂ (N-m)	Slide A1	622
				Slide A2	3050
				Slide S1	228
				Slide S2	1309
			Yaw M,(N-m)	Slide A1	622
				Slide A2	3050
				Slide S1	228
				Slide S2	1309
			Yaw Ma(N-m)	Slide A1	1507
				Slide A2	3014
				Slide S1	847
				Slide S2	1694
Home sensor		Outside			K017-A6(Optional)
