SiRON K090-1-H1 K090-1-H2 Series Door Sensor

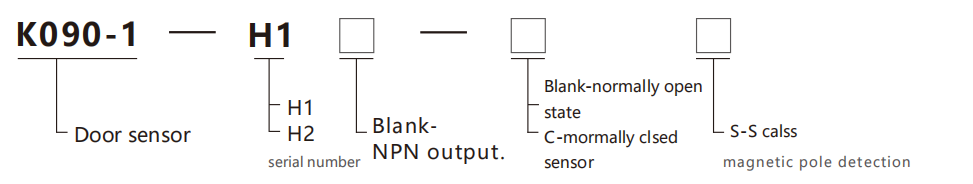

About selection

Selection example：K090-1-H1-S indicates the K090-1series，senrial nmber H1, with NPN noemally open,

                                           detect the magnetic pole as the S-pole;

                                           K090-1-H2-CS indicates the K090-1series, serial number H2, with NPN cloesd.

                                            detect the magnetic pole as the S-pole.

Note: The output mode of K090-1-H1 is only NPN normally open.

Specifications

Name	Door sensor
Model	K090-1-H1-S	K090-1-H2-S	K090-1-H2-CS
Output method	NPN is always open (ON when approaching)	NPN is always open (ON when approaching)	NPN Normally Closed (OFF when approaching)
Magnetic pole detection	Class S

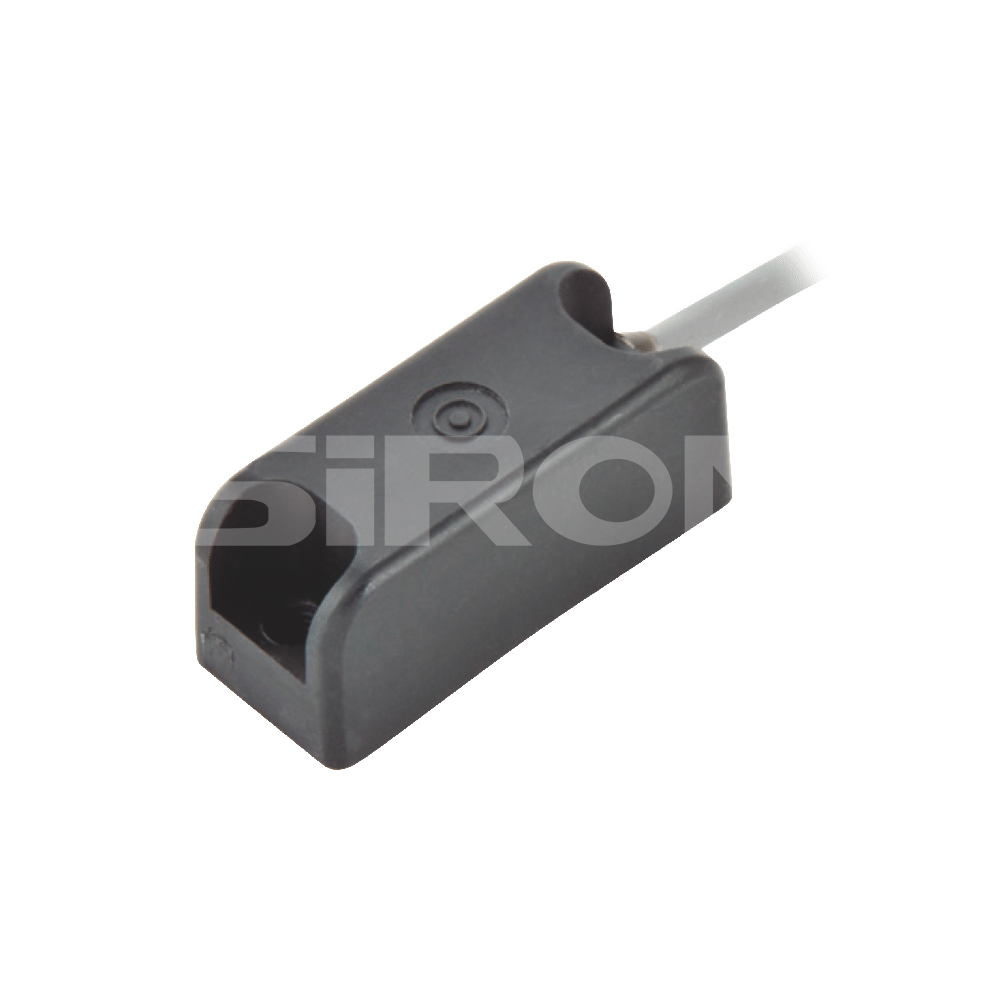

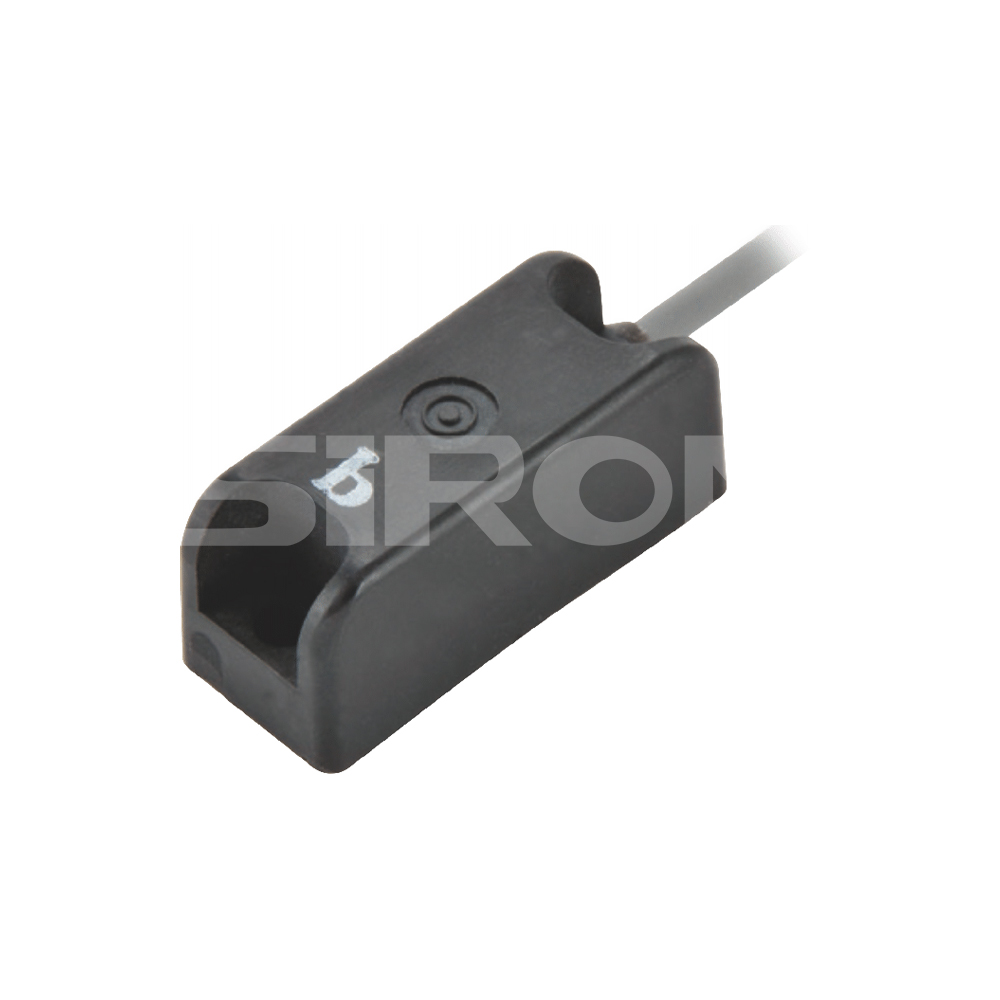

Appearance
Output current	15mA      MAX	80mA      MAX
Cument consumpfion	12mA      MAX	12mA      MAX
Voltage	DC5~24V	DC12～24V
Magnetic detection direction	Up
Detection distance	15mm((when used in combination with door magnets))
Response time	5μs
Withstand voltage	AC 1000V (1 minute, between the entire charging part and the housing)
insulation resistance	DC 250V (20 MΩ or more, between the entire charging part and the housing)
Working temperature	- 20℃~+85℃(B20)
Working environment humidity	20～95%RH
Material	Housing: Glass fiber reinforced resin (black)
Install	M3 screw, tightening torque: 0.8 N·m
Protecion class	IP67
Cable	Wire length: 1M;K090- 1-H1、K090- 1-H2:Grey；K090- 1-H2-C:Black

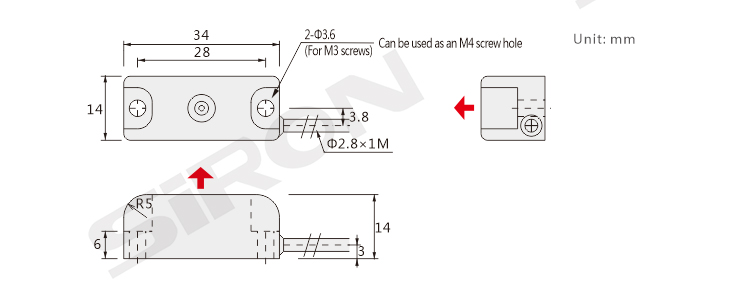

 Dimension

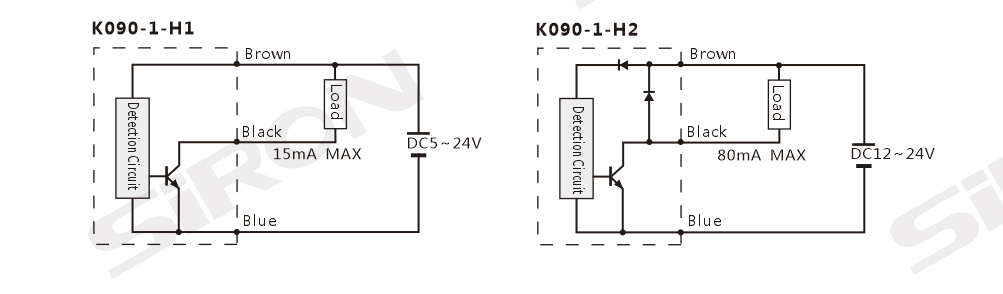

Wiring diagram
