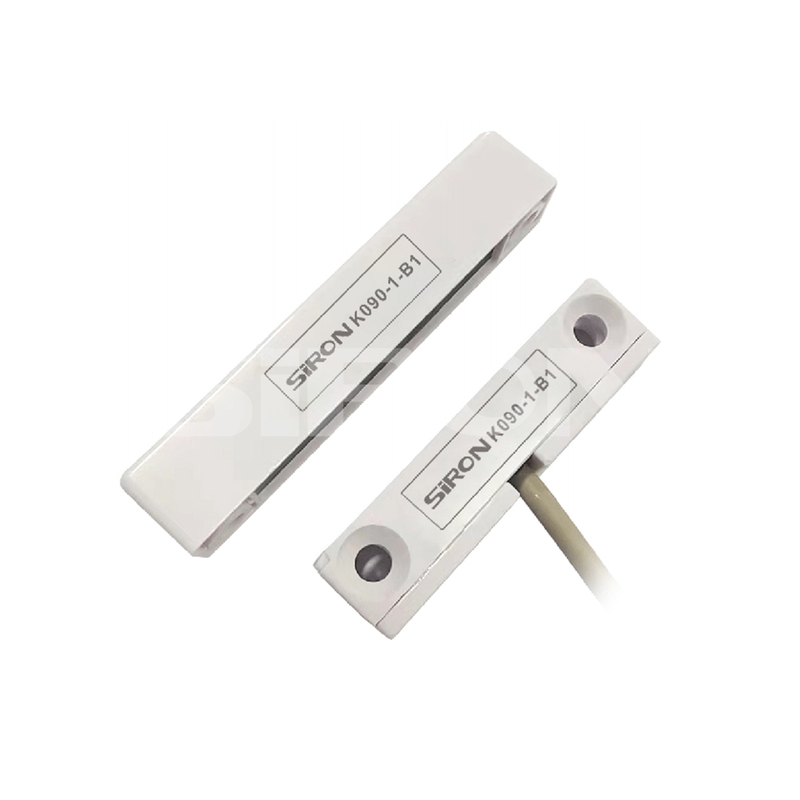

SiRON K090-1-B Series Plastic Door Sensor

Name: SiRON K090-1-B Series Plastic Door Sensor
Brand: SiRON
Rating: 5.0 (36 reviews)

Features:

* Normally open type: Move the magnet trigger close to the sensor, before the distance reaches 30mm,The sensor is turned on and
closed, the magnet trigger is far away from the sensor, and the distance reaches 50mm Previously, the sensor was disconnected.
* Normally closed type: move the magnet trigger close to the sensor, before the distance reaches 30mm,The sensor is disconnected
and the magnet trigger is far away from the sensor. Before the
distance reaches 50mm,The sensor is closed.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K090-1-B series
Brand:
SiRON
Code:
9031809090

Plastic door sensor Good airtightness High stability High Reliability long service life

Product Description

About selection

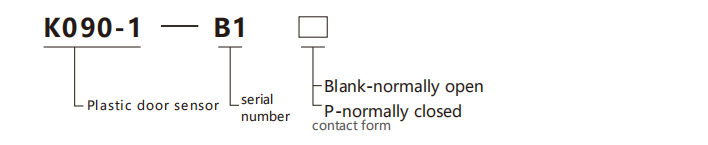

Selection example: K090-1-B1 indicates the K090-1 series, serial number B1, The contact form is normally open.

Specifications

Name	Plastic door sensor
Model	K090-1-B1	K090-1-B1-P
Appearance
Contact form	Normally open	Normally closed
Electric power	70W	5W
Switching voltage	Dc 200V Ac250V	Dc 175V
Breakdown voltage	400V	Dc 200V
Switching current	1.0A	0.25A
Load current	1.75A	1.5A
Contac impedance	0.2Ω	0.3Ω
Insulation resistance	1010Ω	108Ω
Contact capacity	0.2Pf	1.0Pf
Operating temperature range	0℃~+80℃
Material	Sensor housing: ABS; Lid: ABS
Cable	UL2464,24AWG,80℃,300V
Wire strength	The wire can withstand a force of 1KG for more than one minute without breaking.

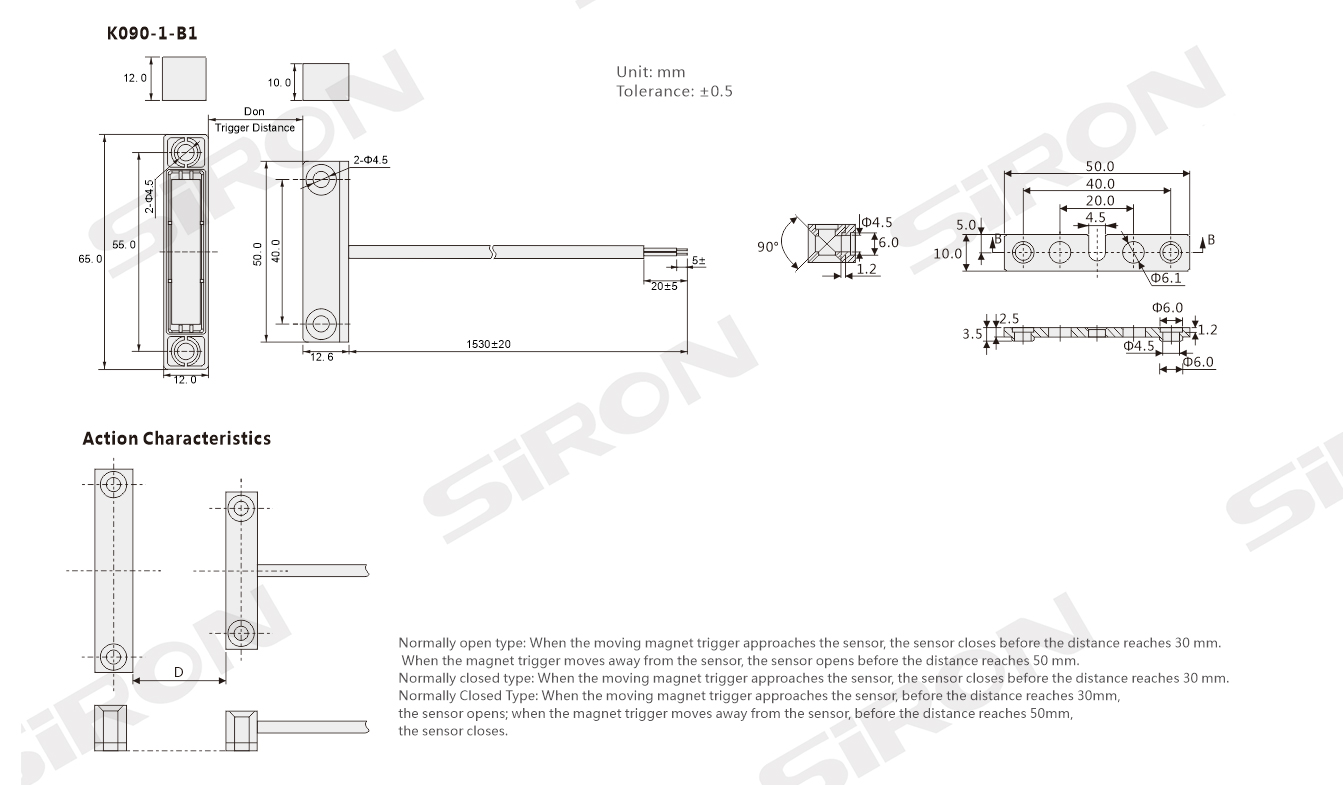

Dimension

外形图

SiRON K090-1-B Series Plastic Door Sensor
