SiRON K090-1-J Series Door Sensor

About selection

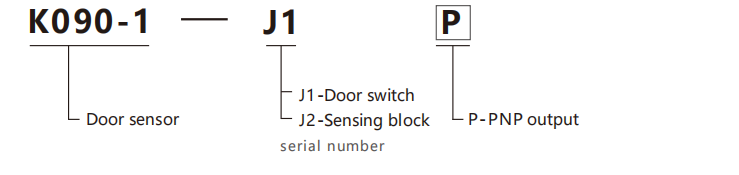

Selection example：K090-1-J1P  indicates the K090-1 series，door switch J1, with PNP output；

                                               K090-1-J2 indicates the K090-1 series, sensing block J2.

Note: When placing an order, two models (door switch + sensing block) need to be ordered simultaneously.

Specifications

Name		Door lock switch	Induction block
Model		K090-1-J1P	K090-1-J2

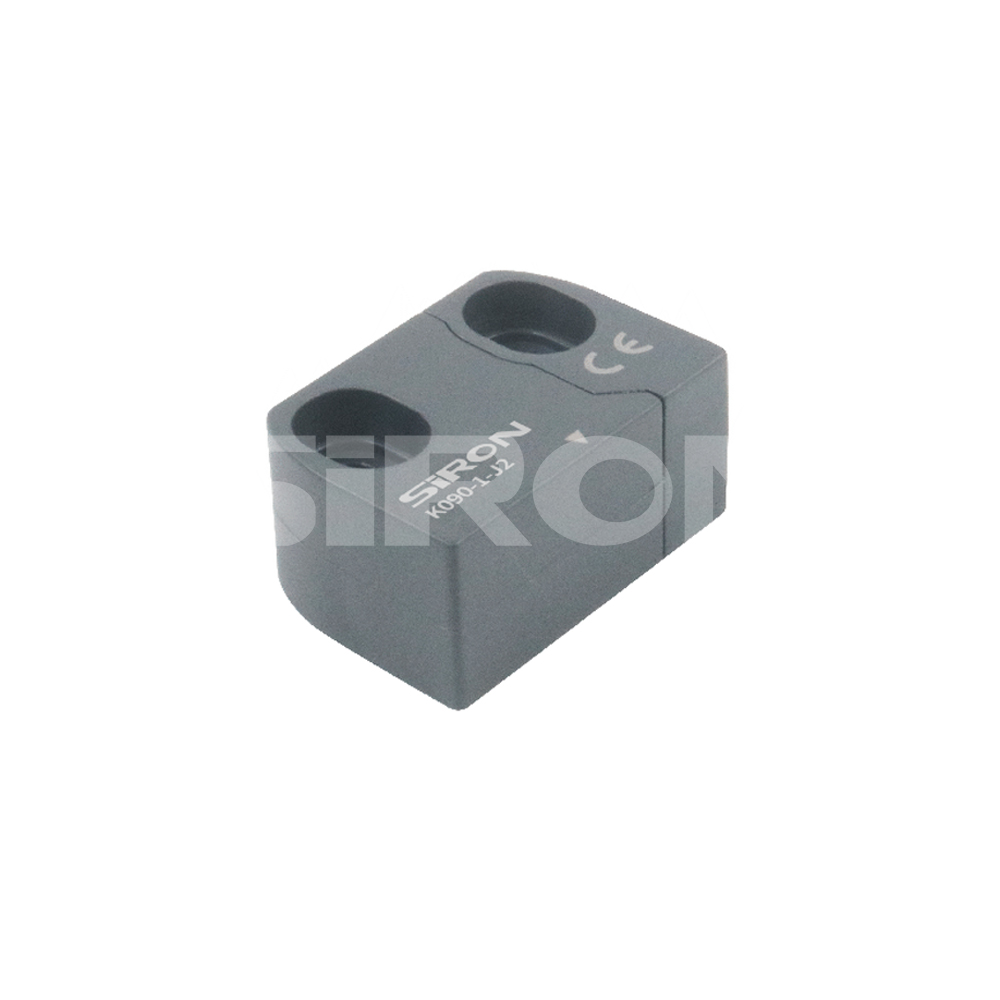

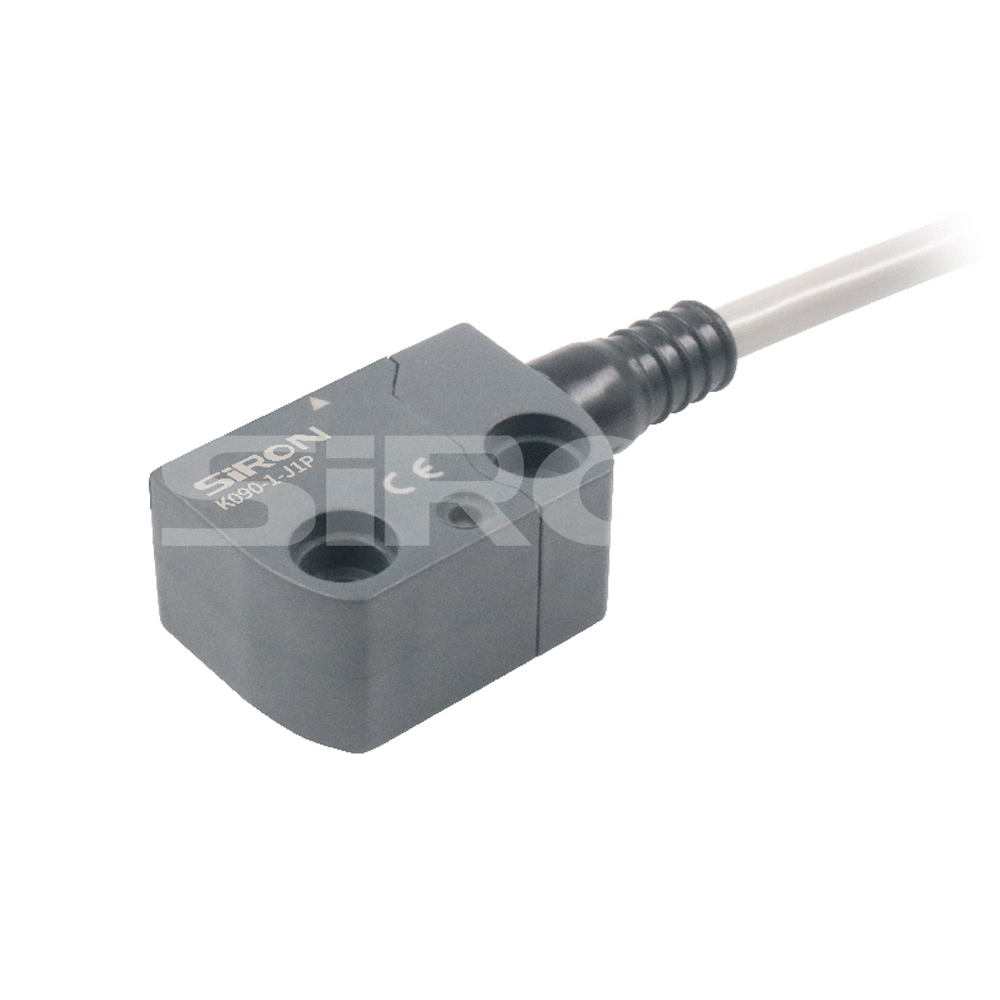

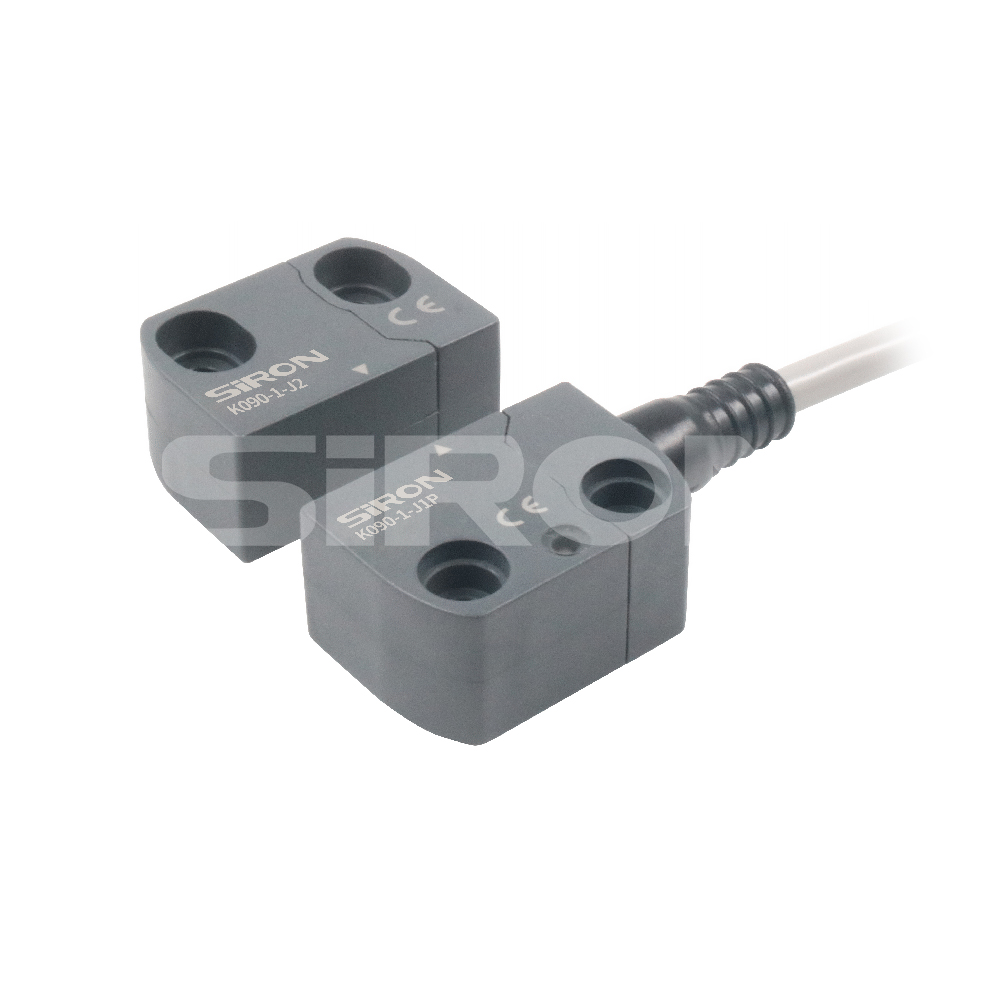

Appearance
Operating voltage		24V   DC
Rated working distance Sn		12mm(±40%)
Rated release distance Snr		15mm(±40%)
Accuracy of repetition		≤10%
Frequency of switching		1Hz
The distance between two sensors		The minimum is 5 0 m m
Principles of Operation		Hall effect
Ambienttemperature		-25~70℃
Resistance to vibration		10gn(10~150Hz), in compliance with the requirements of IEC60068-2-6 standard
Resistance to impact		30gn;11ms a cc,in compliance with EN60068 - 2 - 27
Degree of pollution		3
Screw tightening moment		0.8～1   Nm
Power supply Electrical data	Rated working voltage Ue	24Vdc-15%~+15%
	Minimum operating current at Ue voltage	20mA
	All outputs are at maximum power	370mA
	Rated insulation voltage Ui	32Vdc
	Over voltage class	Ⅲ
I1 Input  electrical data	Rated operating voltage Ue1	24Vdc
	Rated current consumption le1	5mA
O1 Output electrical data	Rated operating voltage Ue2	24Vdc
	Output type	PNP
	Maximum current le2	0.25A
	Minimum current Im2	5mA
	Category of	DC13;Ue2=24Vdc le2=0.25A
	UseShort circuit detection	Yes
	Over current detection	Yes
	internal self-resetting protective fuse	0.75A
	Maximumallowable capacitance between output and ground	<200nF
	Multiple sensors connected in series	Supports up to 30 devices at most
O3 Output  electrical data	Rated operating voltage Ue3	24Vdc
	Output type	PNP
	Maximum current le3	0.1A
	Category ofUse	DC13;Ue3=24Vdc le3=0.1A
	Short circuit detection	NO
	Over current detection	YES
	internal self-resetting protective fuse	0.75A
Cable length		2M

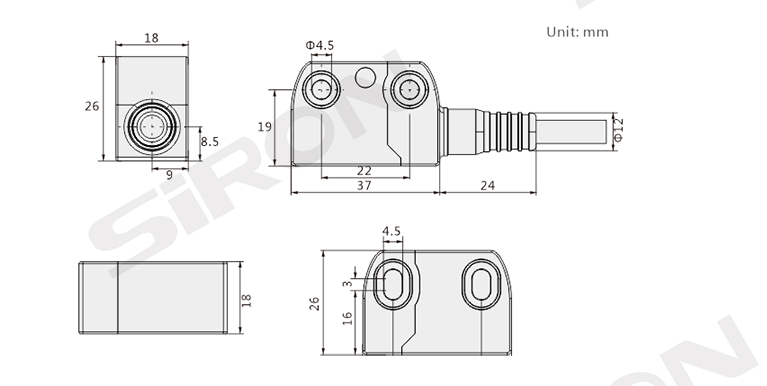

Dimension

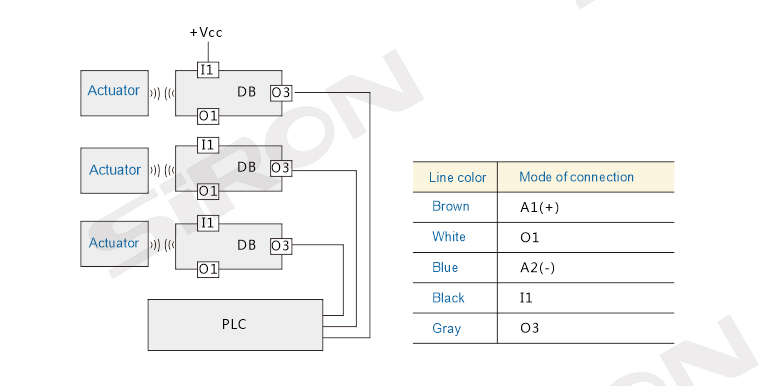

Wiring diagram
