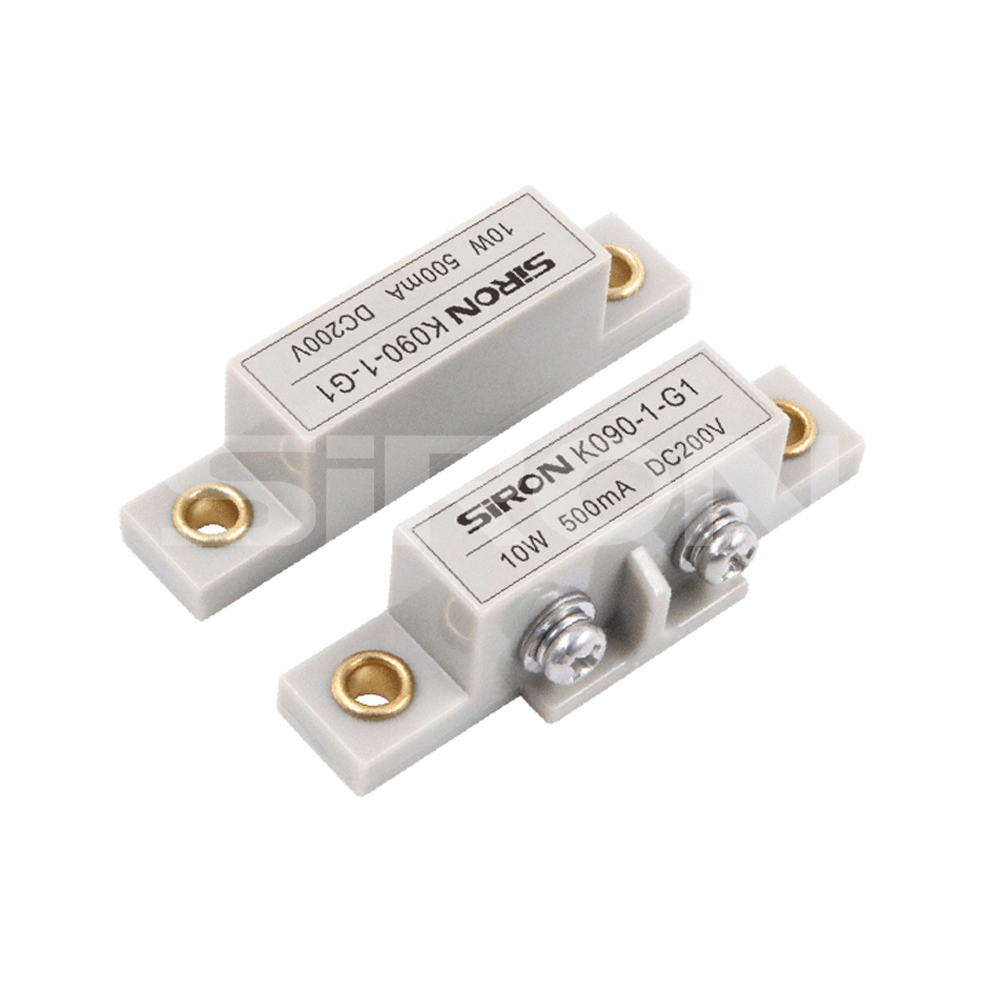

SiRON K090-1-G1 Security Door Sensor

Name: SiRON K090-1-G1 Security Door Sensor
Brand: SiRON
Rating: 5.0 (7 reviews)

Features:

* No need for standby power, good air tightness and long service life;
* Multiple magnetic field sensitivity ranges can be matched with magnet triggers;
* High stability, high reliability, high consistency;
* Customers can customize the shell color, wire outlet direction, wire, terminal, etc.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K090-1-G1
Brand:
SiRON
Code:
9031809090

Security Door Sensor Good airtightness High stability High Reliability long service life

Product Description

About selection

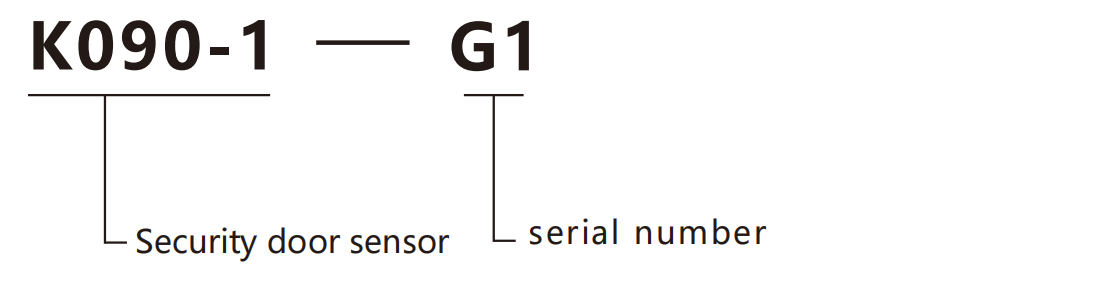

Selection example: K090-1-G1 indicates the K090-1 series, serial number G1.

Specifications

Model	K090-1-G1
Appearance
Contact type	Type A contact (normally open
Contact power	10W
Switching voltage	DC 200V
Breakdown voltage	DC 250V
Switching current	500mA
Load current	1.0A
Contact impedance	200mΩ
Insulation resistance	10⊃1;Ω
Contact capacity	0.3Pf
Operatingtemperaturerange	-25℃~+80℃
Electrical life	10⁸

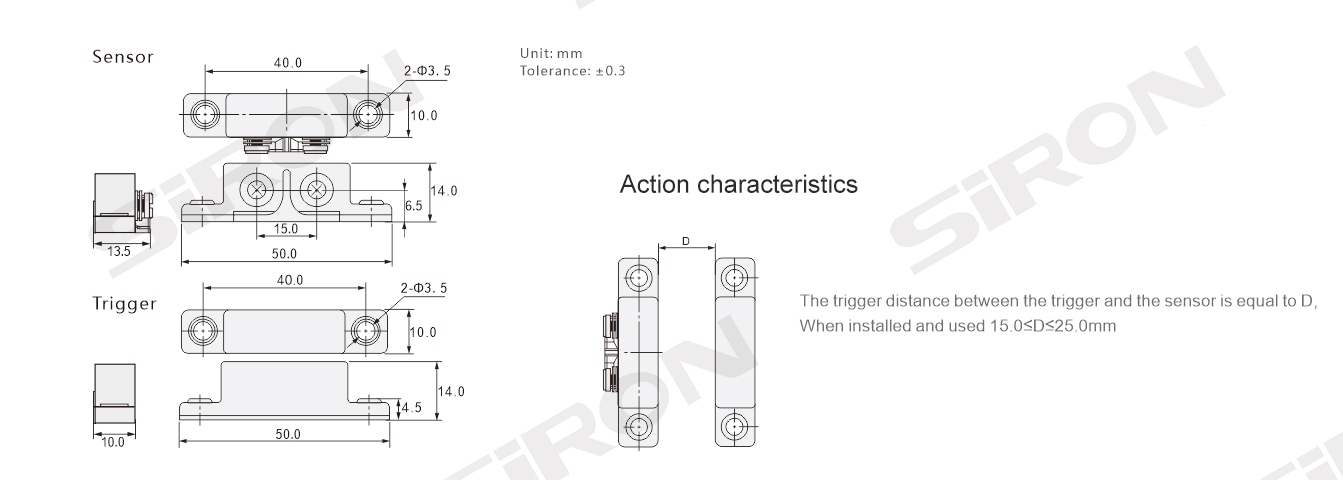

Dimension

SiRON K090-1-G1 Security Door Sensor
