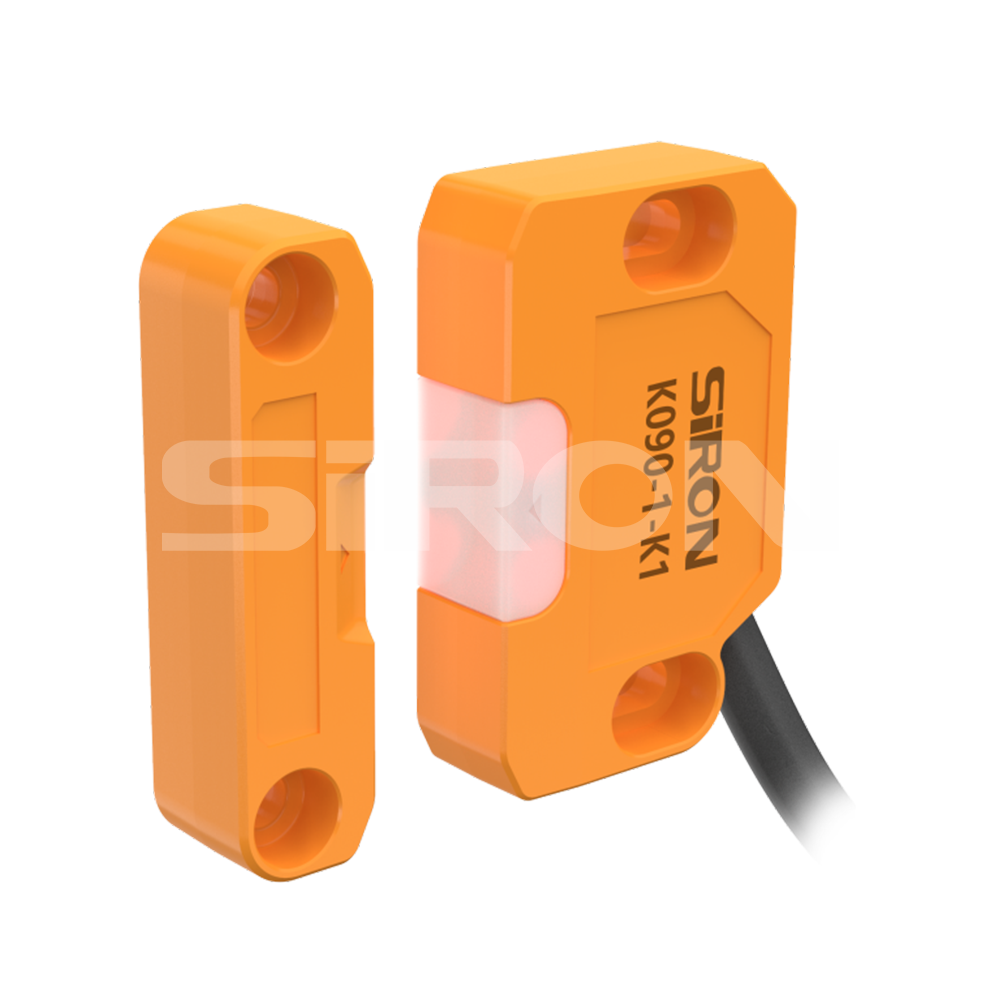

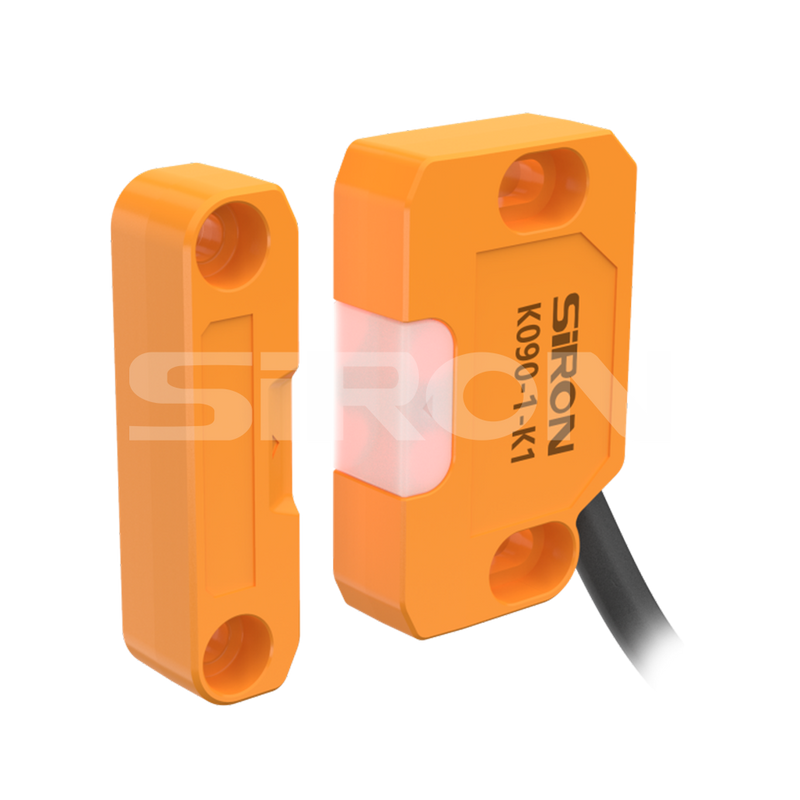

K090-1-K1 Series
SiRON
9031809090

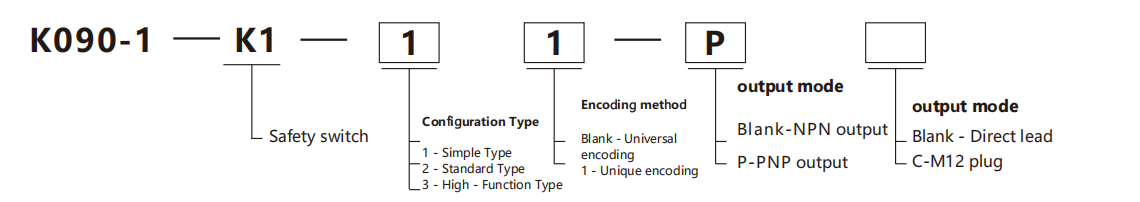

About selection
Selection example：K090-1-K1-11-P indicates the K090-1-K1 series, configuration type: simple type, coding method: unique coding, PNP output, direct lead wire.
Configuration type description
| Safe output channel | Cascade function | E D M function | Reset function | Auxiliary output | |
| Simple type | √ | × | × | × | × |
| Standard form | √ | √ | × | × | × |
| Advanced type | √ | √ | √ | √ | √ |
Specifications
Operating voltage | DC24V±15% |
Power | <1W |
Risk time | 50ms |
Response time | 50ms |
Magnetic retention | >15N |
Operating frequency | 1Hz |
Protection circuit | Power overvoltage protection, reverse polarity protection and output overcurrent protection |
Encoding mode | Universal encoding, unique encoding |
Case protection class | IP65 |
Section size | 48×30mm |
Vibration resistance | Frequency: 10-50Hz, amplitude: 0.35 ± 0.05 mm, 20 times each in the X, Y and Z directions |
Operating ambient temperature | -10～55℃(No condensation) |
Storage ambient temperature | -30～70℃(No condensation) |
Working ambient humidity | When the temperature is 20℃, the relative humidity of the air is less than 85% |
Security Output(OSSD) | NPN transistor output, load current below 200mA, residual voltage below 1V (excluding voltage drop caused by cable extension), leakage current below 1mA |
| PNP transistor output, load current below 200mA, residual voltage below 1V (excluding voltage drop caused by cable extension), leakage current below 1mA |
