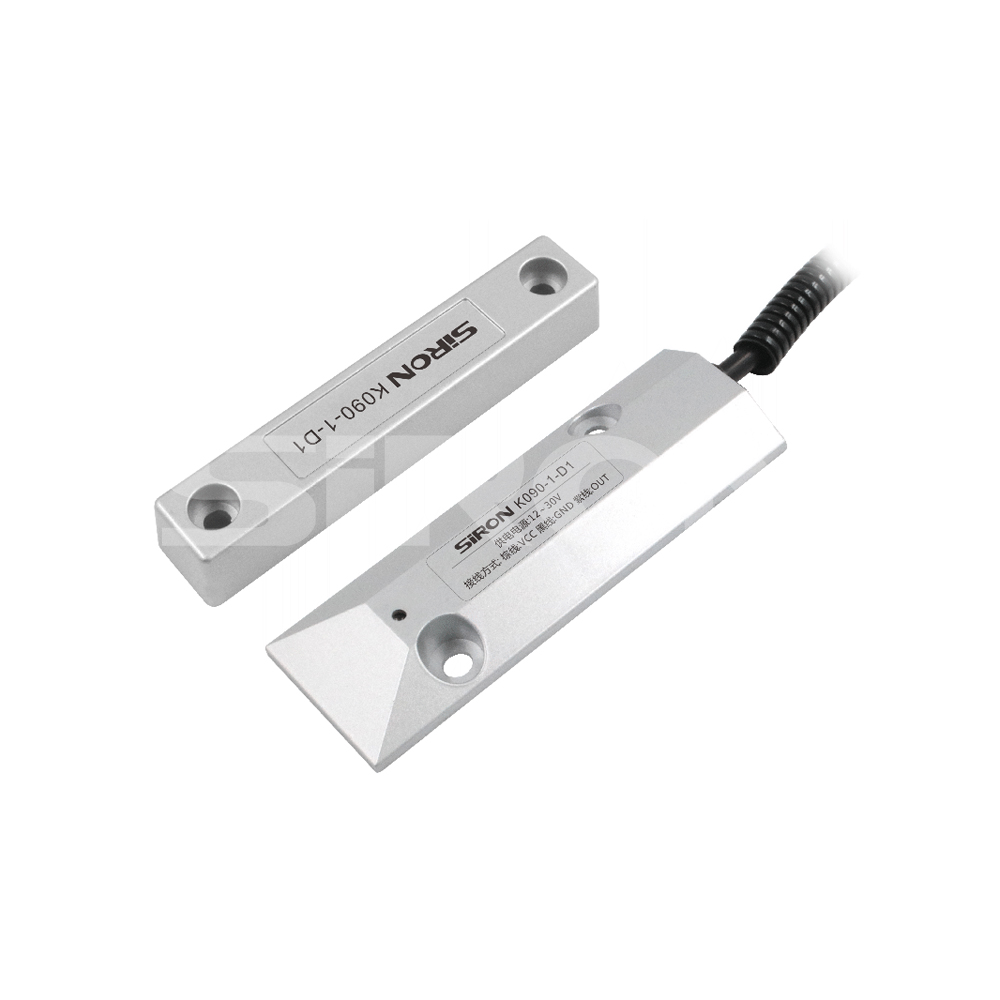

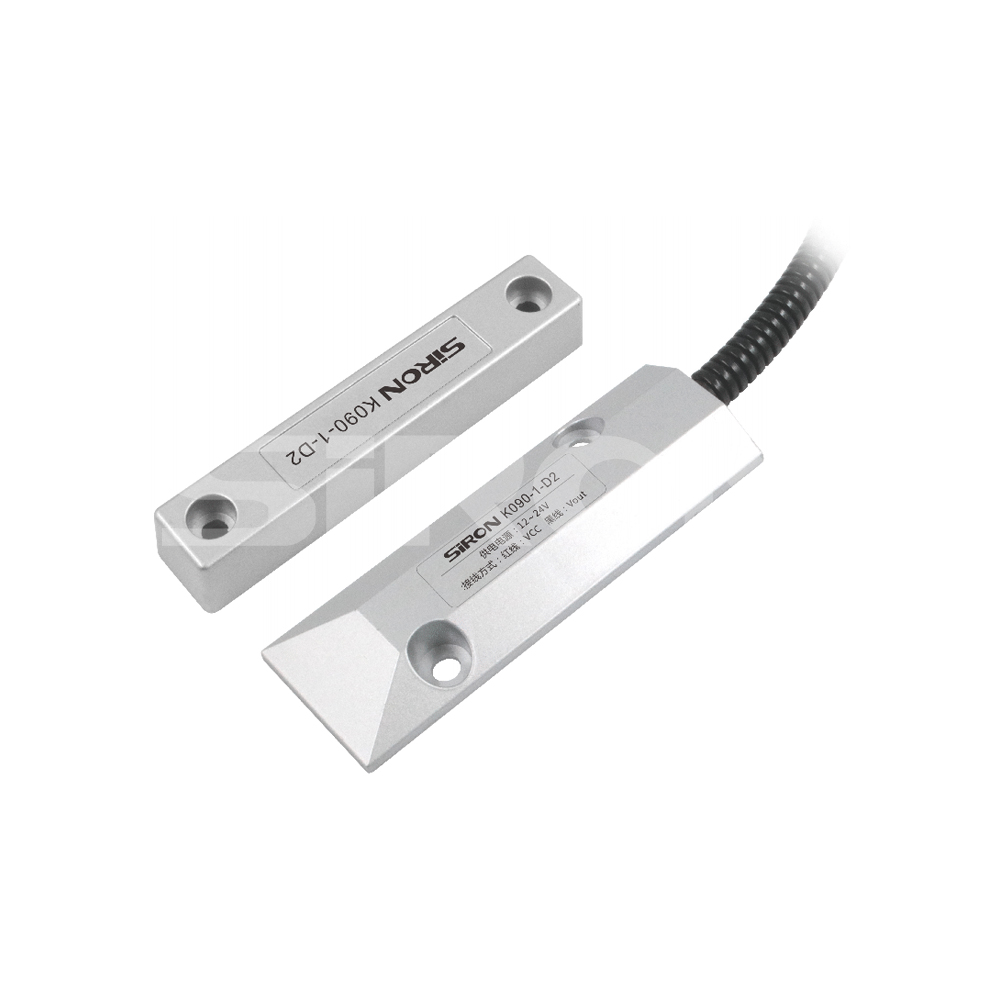

K090-1-D Series
SiRON
9031809090

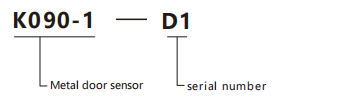

About selection
Selection example: K090-1-D1 indicates the K090-1 series, serial number D1.
Specifications
Model | K090-1-D1 | K090-1-D2 |
Contact type | / | Type A contact (normally open) |
Trigger form | Magnet trigger | Magnet trigger |
Trigger distance | ≤15mm (face-to-face triggering) | ≥20mm |
Supply voltage | 12～30 VDC | 12～24 VDC |
Action distance | ≤100mm (after face-to-face triggering, parallel movement) | / |
Operating temperature range | -30℃~+120℃ | -25℃~+80℃ |
Output method | No triggering: outputs 5V, green light is bright; When triggered: outputs 2.5V, green light is dimmer; When the wire is cut: outputs 0V, light is off. | Switching value: On when triggered; Off when not triggered |
Model | K090-1-D3 | ||
Contact type | Type A contact (normally open) | Load current | 1.75A |
Contact power | 70W | Contact impedance | 1.0Ω |
Switching voltage | DC 200V;AC 250V | Insulation resistance | 100 |
Breakdown voltage | DC 400V | Contact capacity | 0.3Pf |
Switching current | 1.0A | Operating temperature range | -25℃~+80℃ |
Output method | High and low level output: When triggered (in closed state): high level and the light is on; When separated (in open state): low level and the light is off. | ||

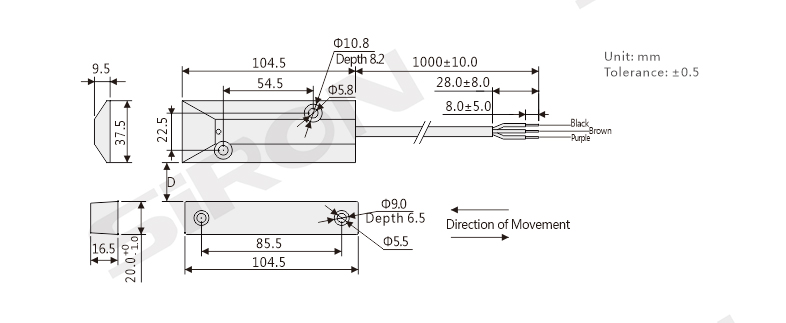

Dimension

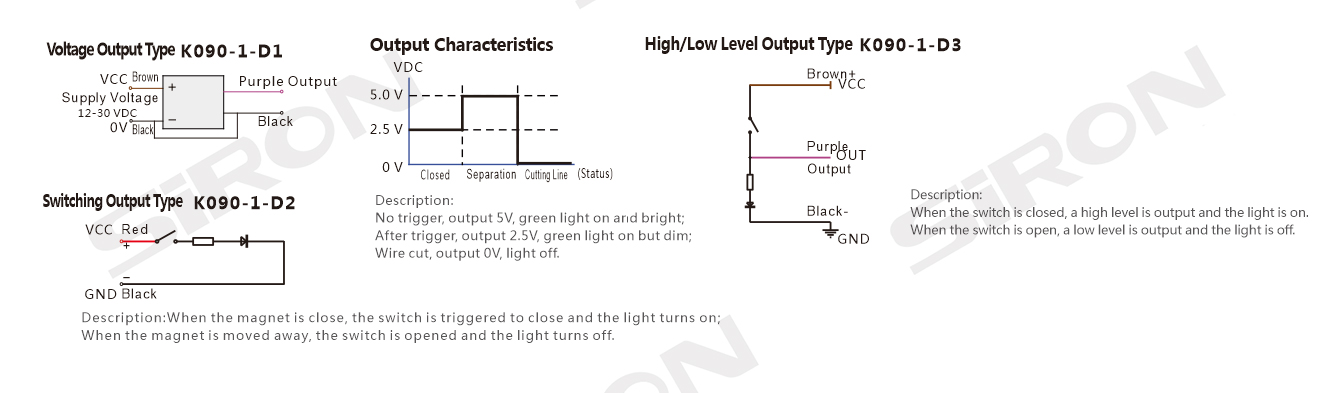

Wiring diagram
