SiRON K090-1-F1 RFID

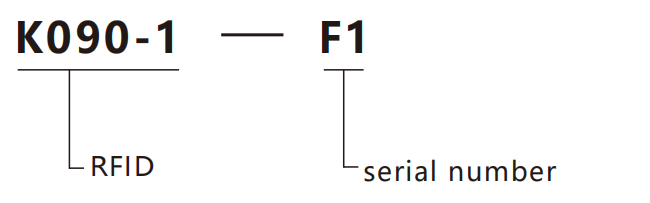

About selection

Selection example: KK090-1-F1 indicates the  K090-1 series, serial number F1.

Specifications

Model	K090-1-F1

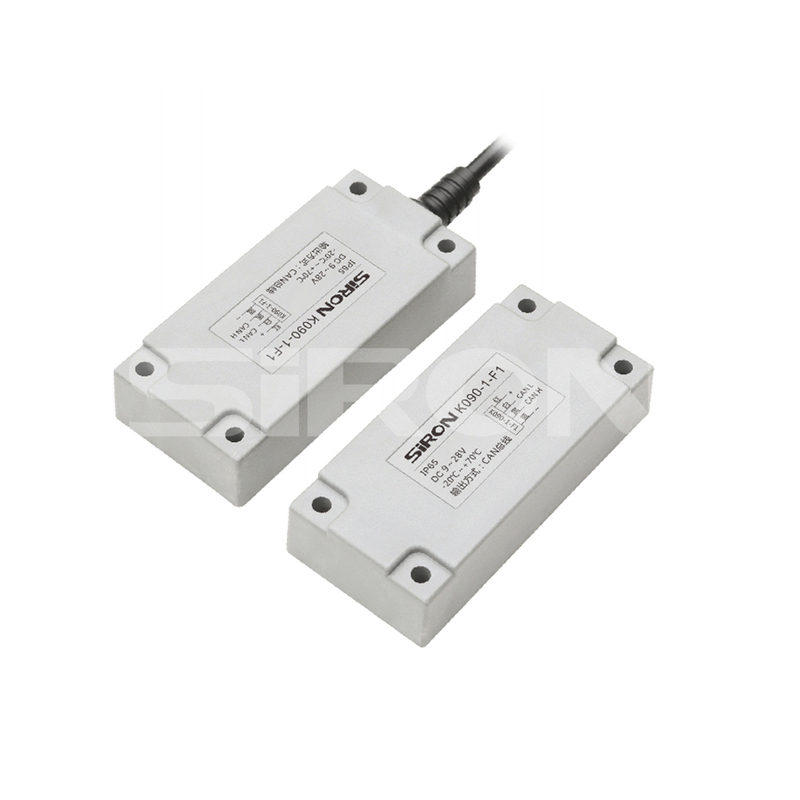

Appearance
Supply volitage	DC9～28V
output method	C A N bus
working environment	- 20℃~+70℃;Humidity B7≤90%
Protection level	IP65
Anti-vibration ability	5G under normal usage conditions
Detector detection distance	No metal environment 0 ~ 4 5 mm
Accessories	1 set of RFID sensors; 8 rivets (4*18mm)
Signal state	The CAN bus uses the J1939 protocol in automobiles

Output type	Output cycle rate  (ms)	data length	priority	PGN	primary address	Data status value
Sensor identification code	200	4	3	OXFAA0	3	Generate a 4-byte sensor randomly Unique Identifier
Sensor status	500	1	6	OXFACO	6	Exception: 0X00  Closed: 0X01 Separation: 0X02

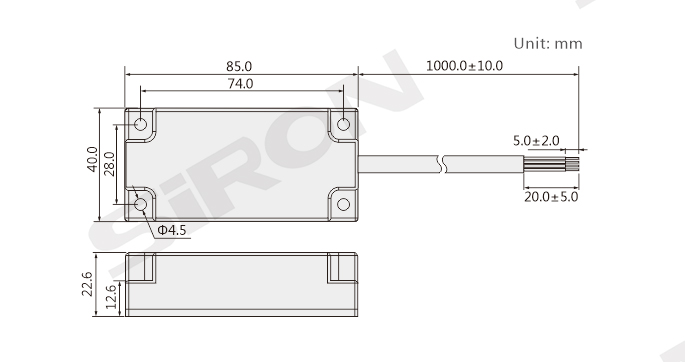

Dimension

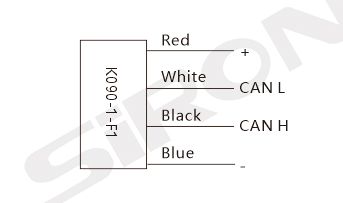

Wiring diagram
