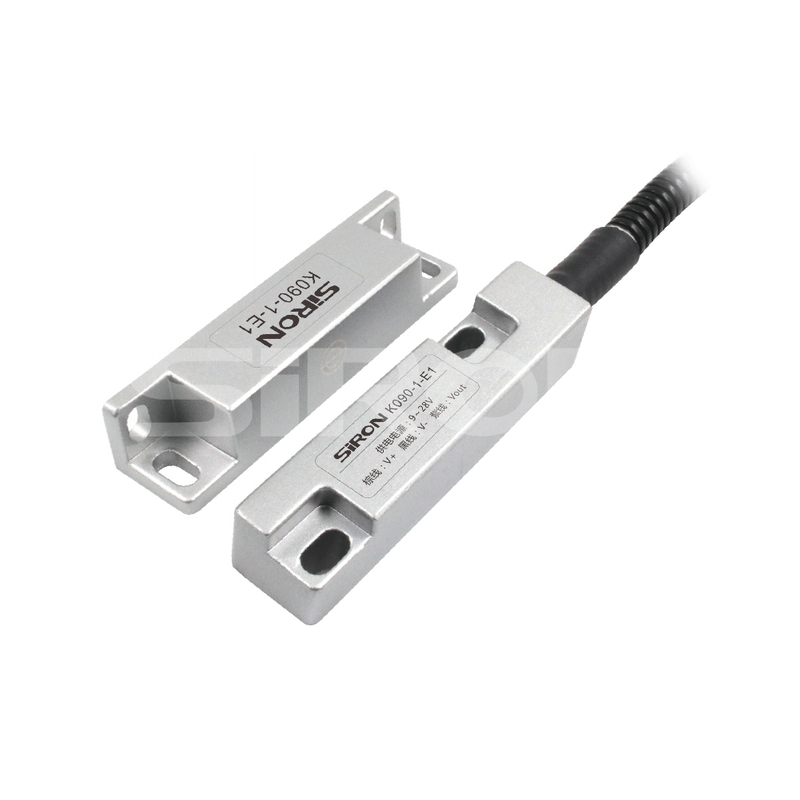

SiRON K090-1-E1 State Door Sensor

Name: SiRON K090-1-E1 State Door Sensor
Brand: SiRON
Rating: 5.0 (62 reviews)

Features:

*Anti-cheating and anti-deception;
* Good air tightness and long service life;
* High stability, high reliability, high consistency;
* Customers can customize wires and terminals.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K090-1-E1
Brand:
SiRON
Code:
9031809090

State Door Sensor Good airtightness High stability High Reliability long service life

Product Description

About selection

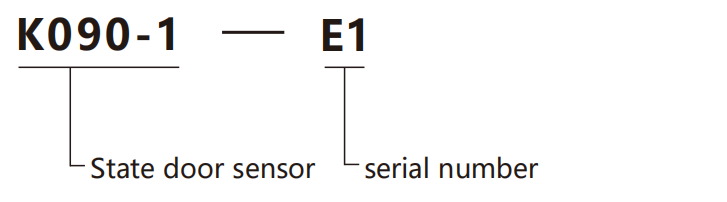

Selection example: K090-1-E1 indicates the K090-1 series, serial number E1.

Specifications

Model	K090-1-E1
Appearance
Power supply	9~28V
Action distance	0~25mm
Temperature range	-25℃~+85℃
Output signal	Separation: 5V
	Separation: 5V
	Wire cutting (removal):OV

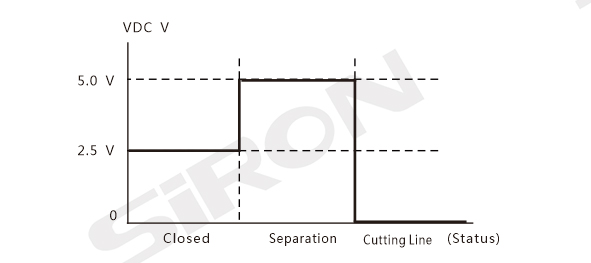

output characteristics

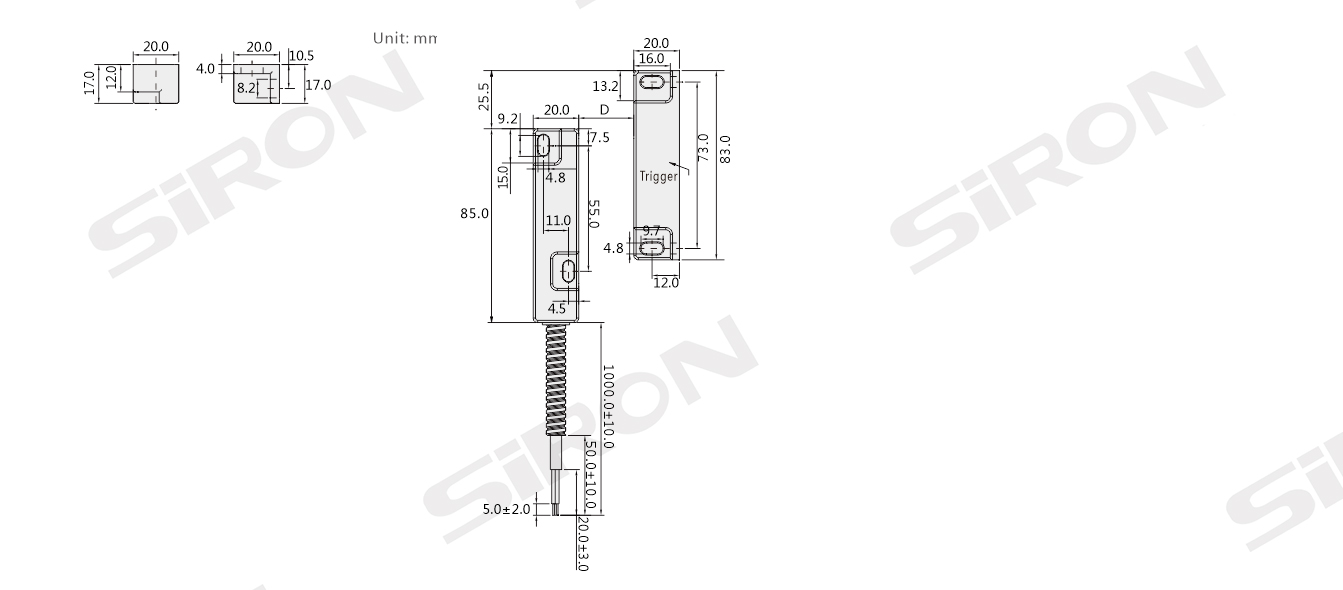

Dimension

外形图

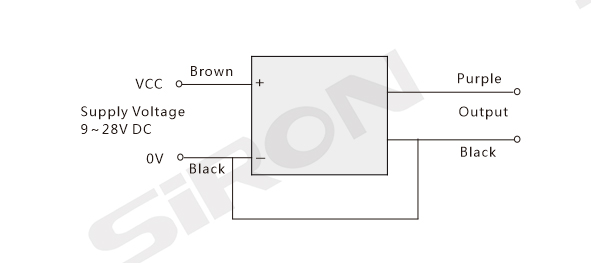

Wiring diagram

接线图

SiRON K090-1-E1 State Door Sensor
