SiRON K090-2-B Analog Volume Test Box

Name: SiRON K090-2-B Analog Volume Test Box
Brand: SiRON
Rating: 5.0 (92 reviews)

Features:

* Three modes of analog voltage, analog current, and digital are optional;
* Built-in 15-bit independent ADC, the full-scale accuracy can reach 0.4%;
* Customized LCD display, high-definition visibility;
* Built-in 4000mA high-capacity lithium battery, which can support the function of power bank;
* Comes with flashlight lighting.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K090-2-B
Brand:
SiRON
Code:
9031809090

Analog volume test box Automatic identification Multiple types Mode easy to carry high precision

Product Description

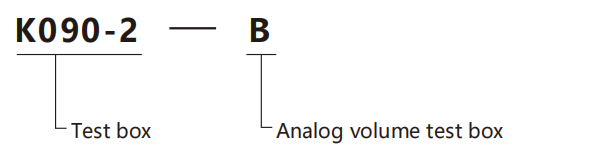

About selection

Selection example: K090-2-B indicates the K090-2 series, B Analog volume test box.

Specifications

Model		K090-2-B
Appearance
Dete ction type		NPN / PNP Self-actualized consciousness
Brown output	The output voltage	19.0~24.0V
	Output current	≤160mA
USB output	The output voltage	4.8～5V
	Output current	≤500mA
Measuring range	Voitage mode	0～10V
	Current mode	0~20mA
Measurement accuracy	Voltage mode	≤0.04V((Full range)
	Current mode	≤0.04mA((Full range)
Scan cycle	Digital mode	22ms
	Current mode	140ms
	Voitage mode	140ms
ADC acculacy		15-position
Batterycapacity		4000mAH
Theoretical working hours		1 0 h ( 2 4 V output 1 5 m A )
Charging ime		9h
Operating temperature		-10℃~+45℃
Weight		200g
Other functions		Power overcurrent protection, sleep function, mute function, flashlight

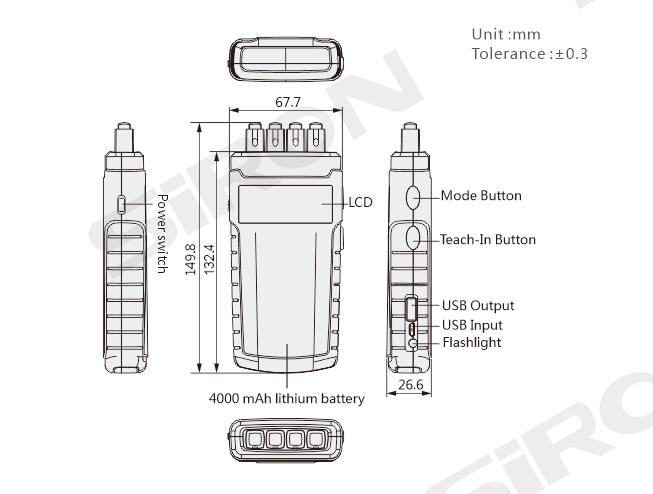

Dimension

外形图

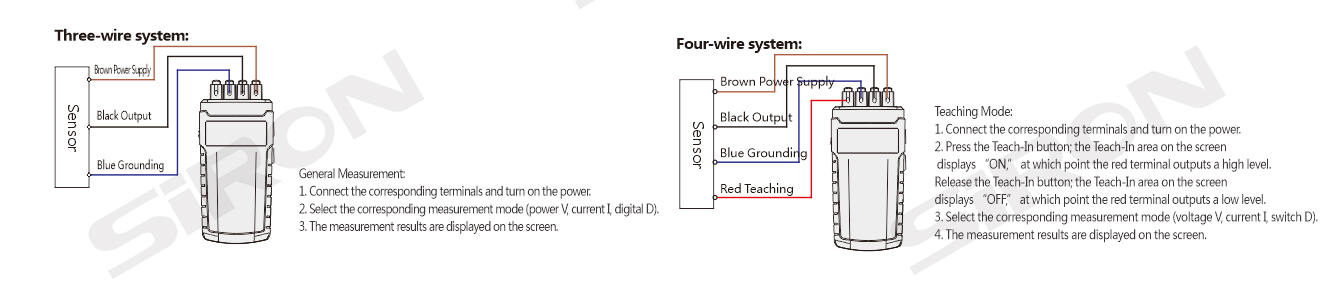

Wiring diagram

接线图

SiRON K090-2-B Analog Volume Test Box
