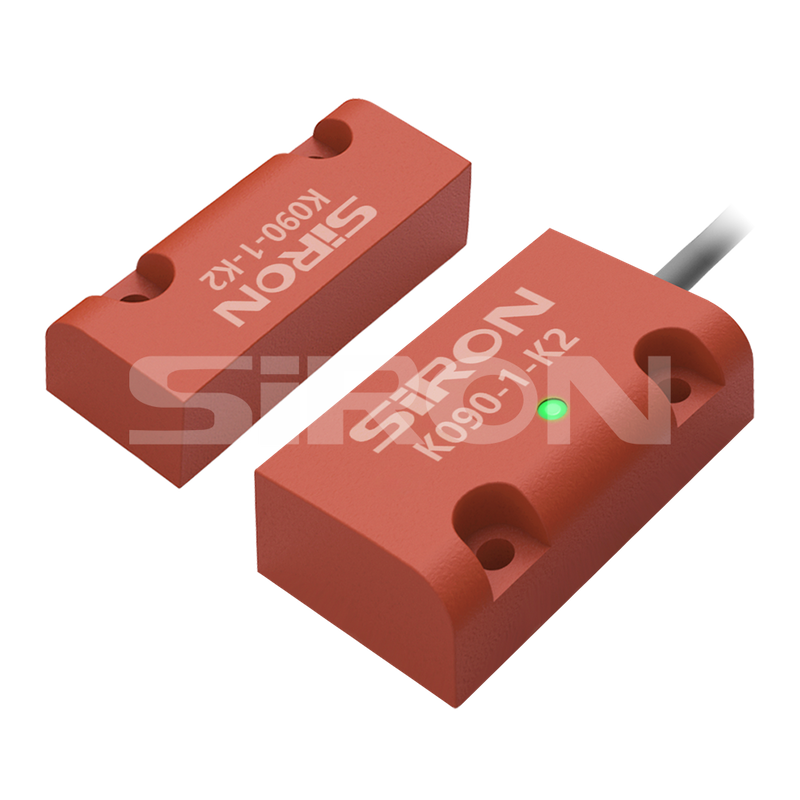

K090-1-K2 Series
SiRON
9031809090

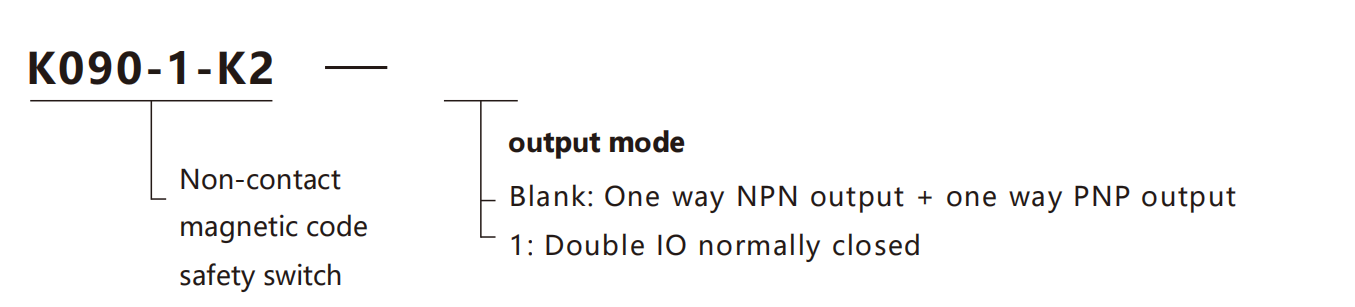

About selection

Selection example:K090-1-K2 indicates the K090-1-K2 series of non-contact magnetic coding safety switches, with the output mode being one NPN output + one PNP output.
Specifications
Modelnumber | K090-1-K2 | K090-1-K2-1 |

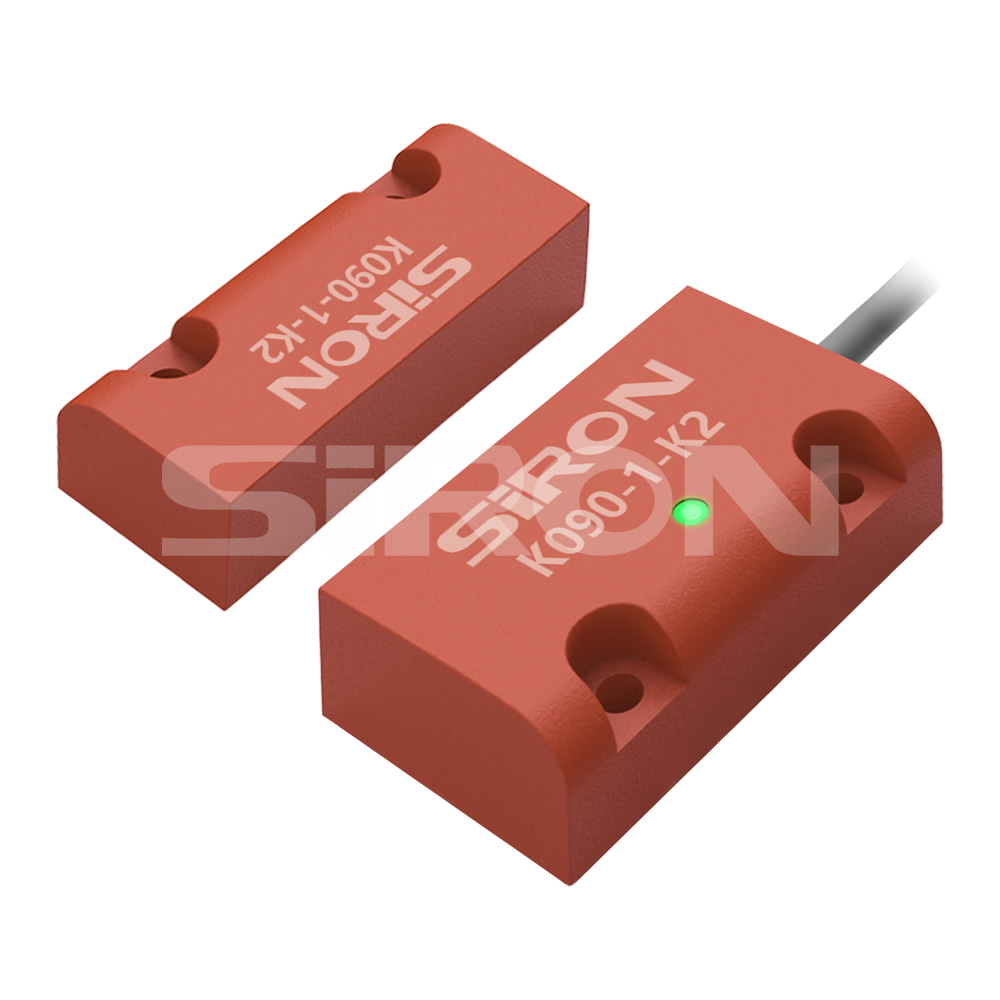

Appearance | ![]() ![]() | ![]() ![]() |
Signal mode | NPN Normally close + PNP Normally close | Two sets of independent normally closed contacts |
Horizontal working distance | Conduct 0 ~ 1 0 m m | |
Vertical working distance | Conduct 0 ~ 8 m m | |
Operating voltage | 24V DC±15% | |
Working current | 30mA | |
Output current | 150mA | |
Typical tolerance | Above or on the side | |
Responsetime | 5ms | |
Class of protection | IP67 | |
Operating frequency | 10Hz | |
Material | ABS+PC | |
Operating temperature | -10~+55℃ | |
Relative humidity | 5%~95% | |
Outlet mode | Directly extend 2M | |
