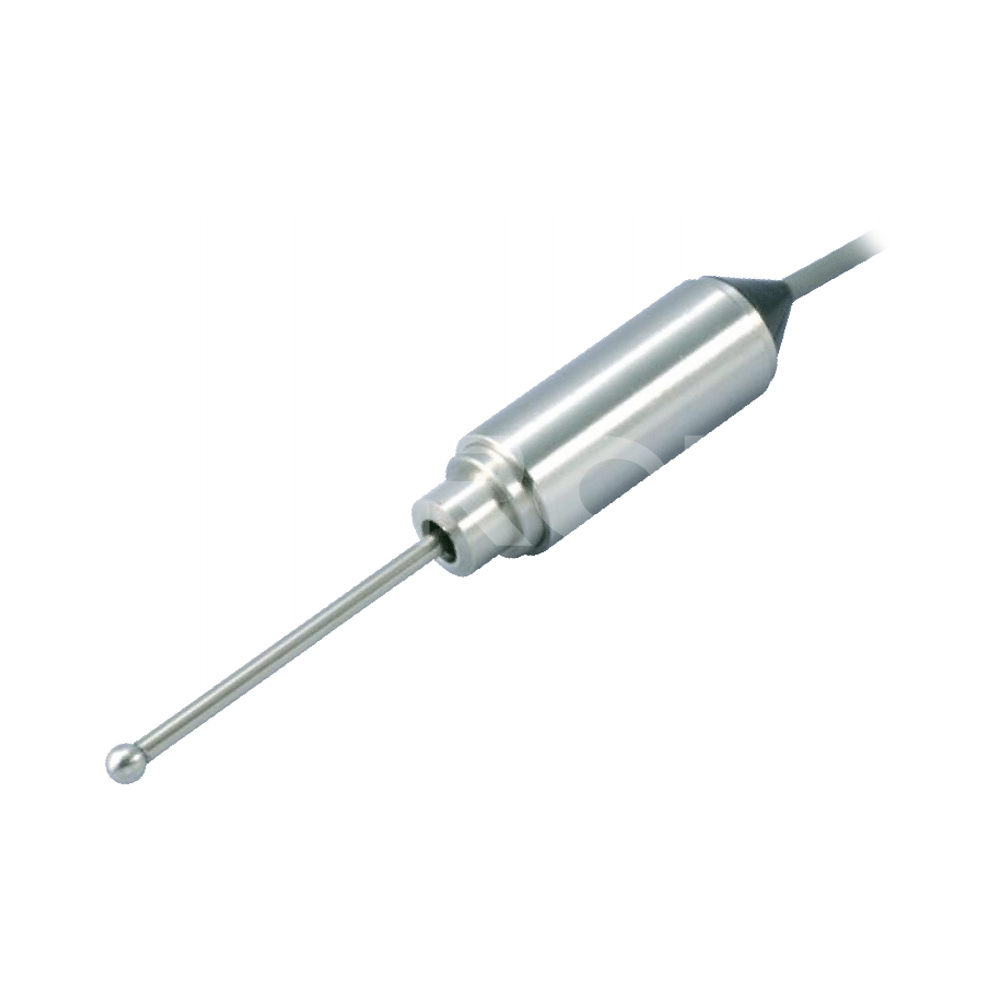

SiRON K071-9 Series Precision Contact Sensor

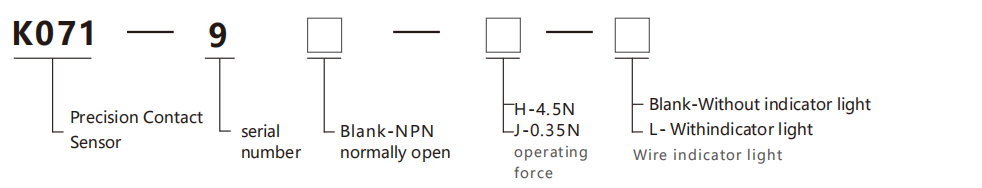

About selection

Selection Example: K071-9-H indicates K071 Series, 9 serial number, NPN normally open, operating force of 4.5N, and                                       cable without indicator light.

                                     K071-9-H-L indicates K071 Series, 9 serial number, NPN normally open, operating force of 4.5N,                                           and cable with indicator light.

Specifications

Name	Precision Contact Sensor
Model	K071-9-H	K071-9-J	K071-9-H-L	K071-9-J-L
Output method	NPN Normally Open (ON when approaching)		NPN Normally Open (ON when approaching)
Cable indicator	Without Indicator Light		With Indicator Light (approximately 100mm from the sensor body)
Appearance
Output currentcurrent	15mA MAX
Consumption	8mA MAX
Voltage	DC5～24V
Journey	4mm(360°)
Operating force	H:1N;J:0.3N
Working point position[PT	1.5±1mm
Hysteresis [MD]	Below 0.1mm
Repeatability	0.02mm
Working frequency	Less than 60 times per minute
Withstand voltage	AC1000V(1 minute, between the charging unit as a whole and the casing)
Insulation resistance	DC250V(above 20MΩ, between the charging unit as a whole and the casing)
Working temperature	-20℃~+85℃(No Condensation)
Working environment humidity	20~95%RH
Matenal	SUS303
Protection class	IP65
Cable	Wire Length 1M ; Grey

Example

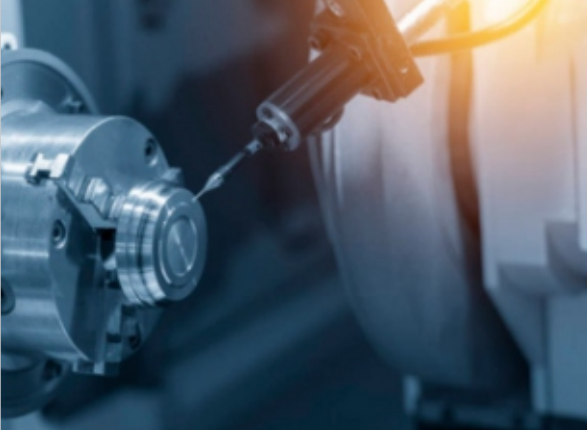

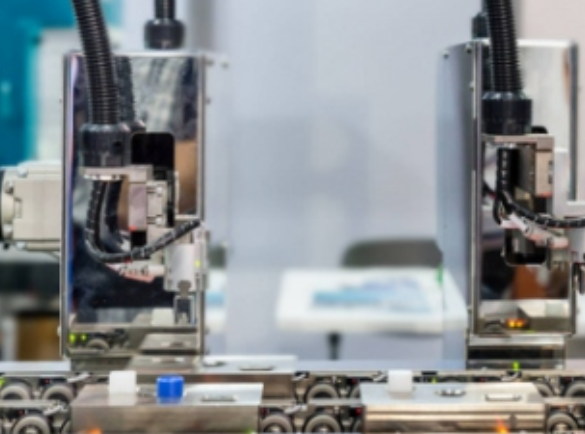

Positioning detection of the origin on the equipment                 Inspection of CNC machine tools

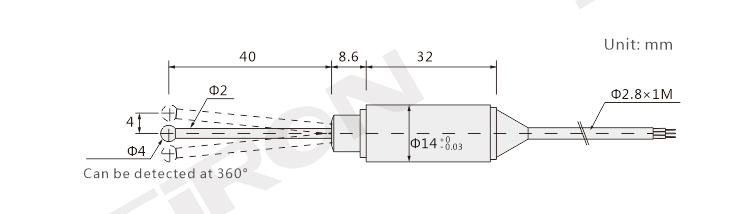

Dimension

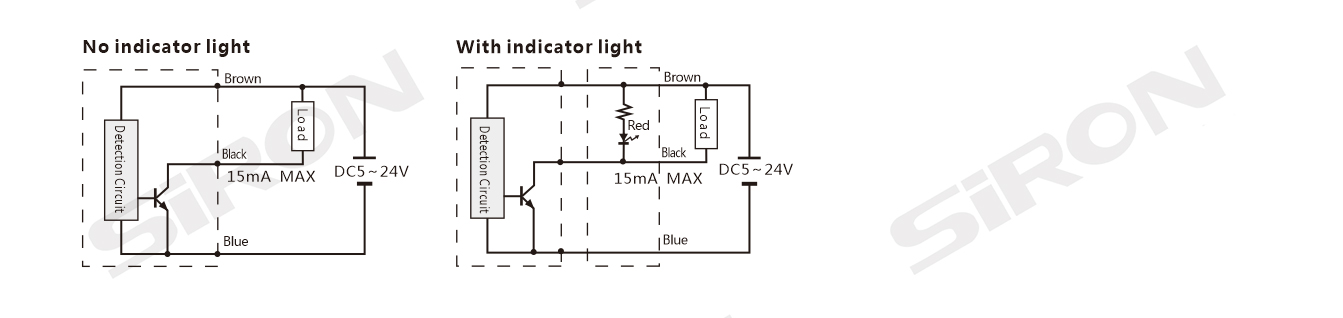

Wiring diagram
