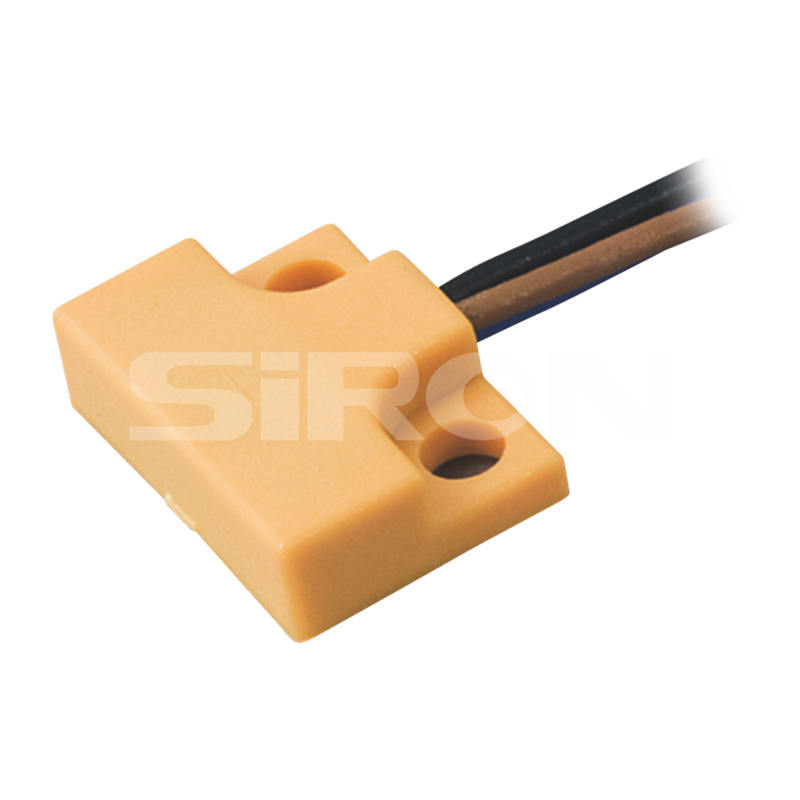

SiRON K072-11 Series Linear Sensor

Name: SiRON K072-11 Series Linear Sensor
Brand: SiRON
Rating: 5.0 (56 reviews)

Features:

* The output voltage is proportional to the magnetic induction;The output voltage is proportional to the moving distance of the magnet;

* Can detect and monitor magnetic field vibration (0～100kHZ)

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K072-11 Series
Brand:
SiRON
Code:
9031809090

Magnetic Sensor Linear sensor High positioning accuracy 3-wire type IP65

Product Description

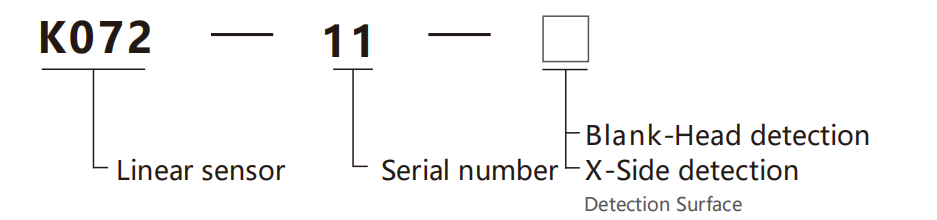

About selection

Selection example：

K072-11 indicates the K072 series, serial number 11, with the detection surface being head detection.
K072-11-X indicates the K072 series, serial number 11, with the detection surface being side detection.

Specifications

Name	Linear sensor
Model	K072-11		K072-11-X
Magnetic sensitivity	6 5 m V / m T : Central Value		6 5 m V / m T : Central Value
Magnetic detection direction	Forward		Upward
Appearance
Output current	±1.2mA MAX	Operating ambient temperature		- 20～+85℃(No condensing)
Current consumption	12mA	Working environment humidity		20～95%RH
The output voltage	0.3～4.7V(-40~+40mT):Central Value	Material		Shell: Glass fiber reinforced resin (orange)
Center voltage	2.5V±0.15V	Install		M2 screw, tightening torque 0.15 N · m
Response time	5μs(100kHz)	Protection class		IP65
Magnetic Sensivity Temperature Coefficient	0±0.04%/℃	Cable		Cable length 0 . 3 M
Center Voltage Temperature Coeficient	0±0.5mV/℃
