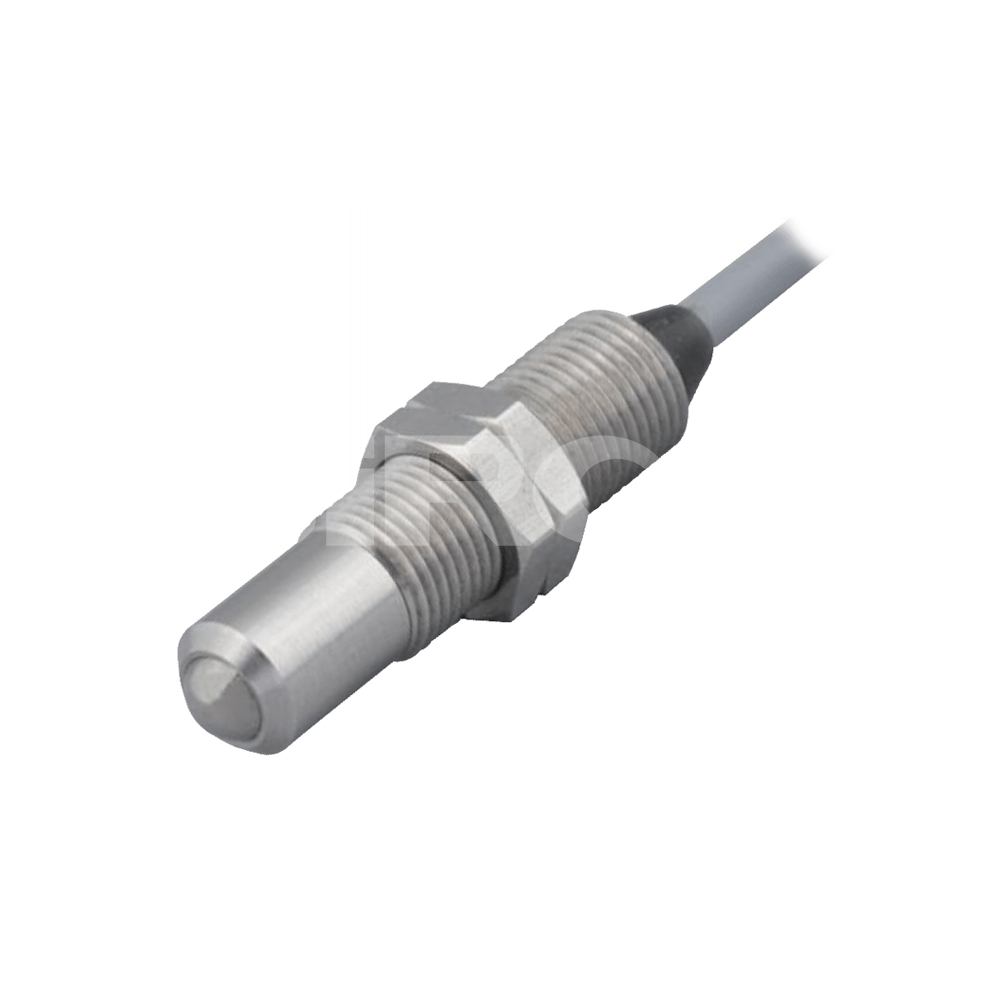

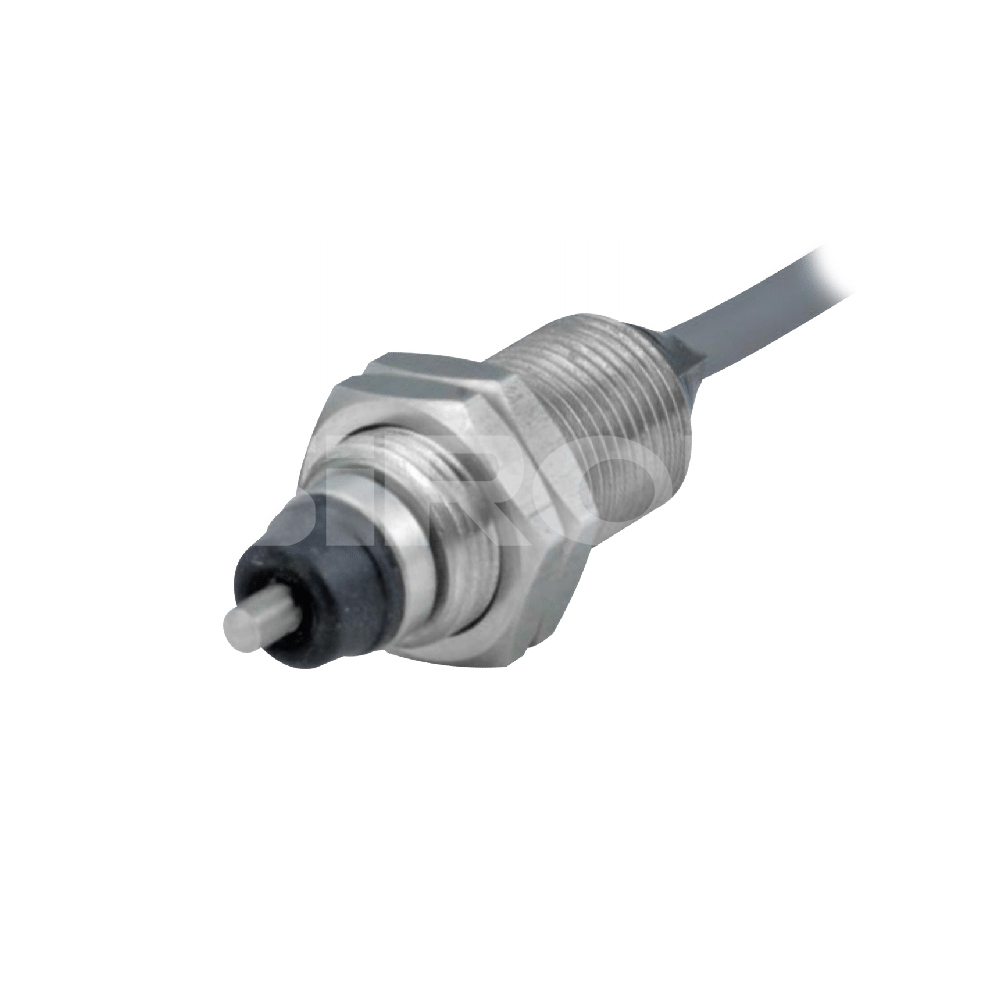

SiRON K071-6 Series Precision Contact Sensor

About selection

The working point positions (a, b) can be freely set within the range of 0.4±0.15mm to 2.0±0.15mm

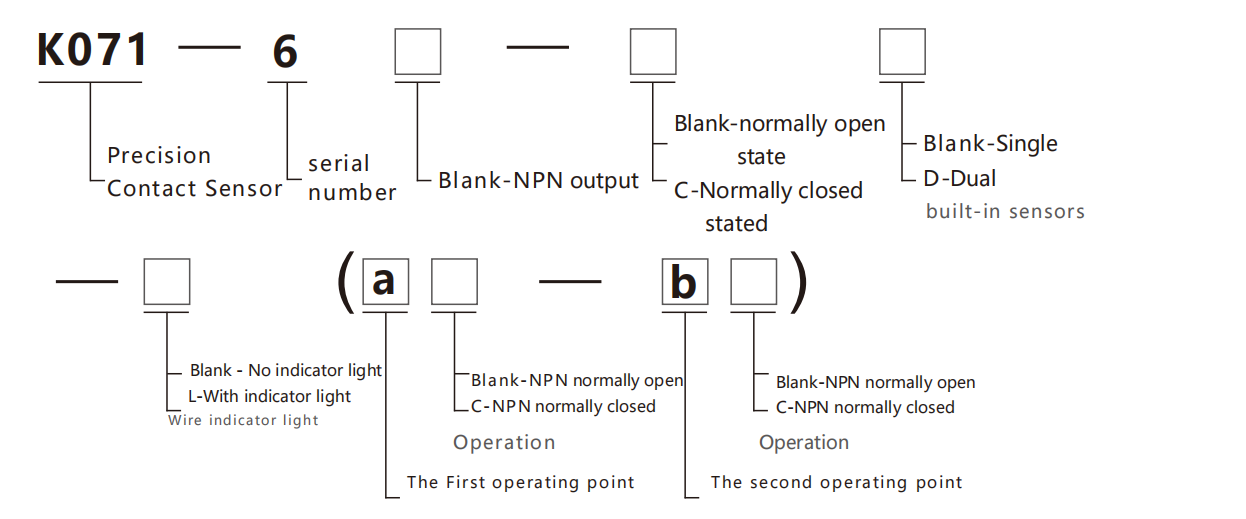

Selection example: K071-6 indicates the K071 series, serial number 6, with NPN normally open, Single built-in sensor                                          signal,  cable without indicator light.

                                       K071-6-CD-L (0.4C, 2.0C) indicates the K071 series, with serial number 6, dual built-in sensor                                                   signals, cable with indicator  light, and the signal positions are 0.4 (NPN Normally Closed) and                                               2.0    (NPN Normally Closed).

Specifications

Name	Precision Contact Sensor
Model	K071-6	K071-6-C	K071-6-L	K071-6-C-L
Output method	NPN Normally Open (ON when approached)	NPN Normally Closed (OFF when approached)	NPN Normally Open (ON when approached)	NPN Normally Closed (OFF when approached)
Cable indicator	Without indicator light		With indicator light (approximately 100mm from the sensor body)
Appearance
Output currentcuent	15mA      MAX
Consumption	8mA     MAX
Voltage	DC5～24V
Joumey	3mm
Operating force	1N(Do not apply a force of more than 30N to the operating lever)
Working point position [PT]	Freely set within the range of 0.4±0.15mm to 2.0±0.15mm
Hysteresis [MD]	Below 0.1 m m
Repeatability	±0.001mm
Working frequency	Less than 60 times per minute
Withstand voltage	AC1000V(1 minute, between the charging unit as a whole and the casing)
Insulation resistance	DC250V(above 20MΩ, between the charging unit as a whole and the casing)
Working temperature	- 20℃~+85℃(No condensing)
Working environment humidity	20～95%RH
Material	Housing/Nut/operating rod: SUS303
install	M10 nut, tightening torque less than 12 n.m (Installation hole diameter processing size: φ10)
Protecion cass	IP65
Cable	wire length 1M;K071- 6:Grey；K071- 6-C/K071- 6-CD:Black

Example

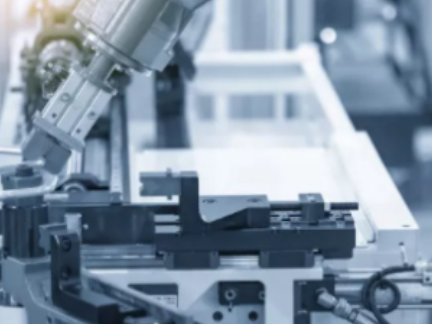

Detection of key positioning for automated equipment       Detection of welding origin positioning

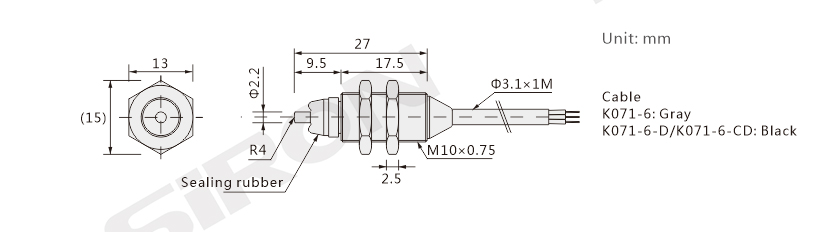

Dimension

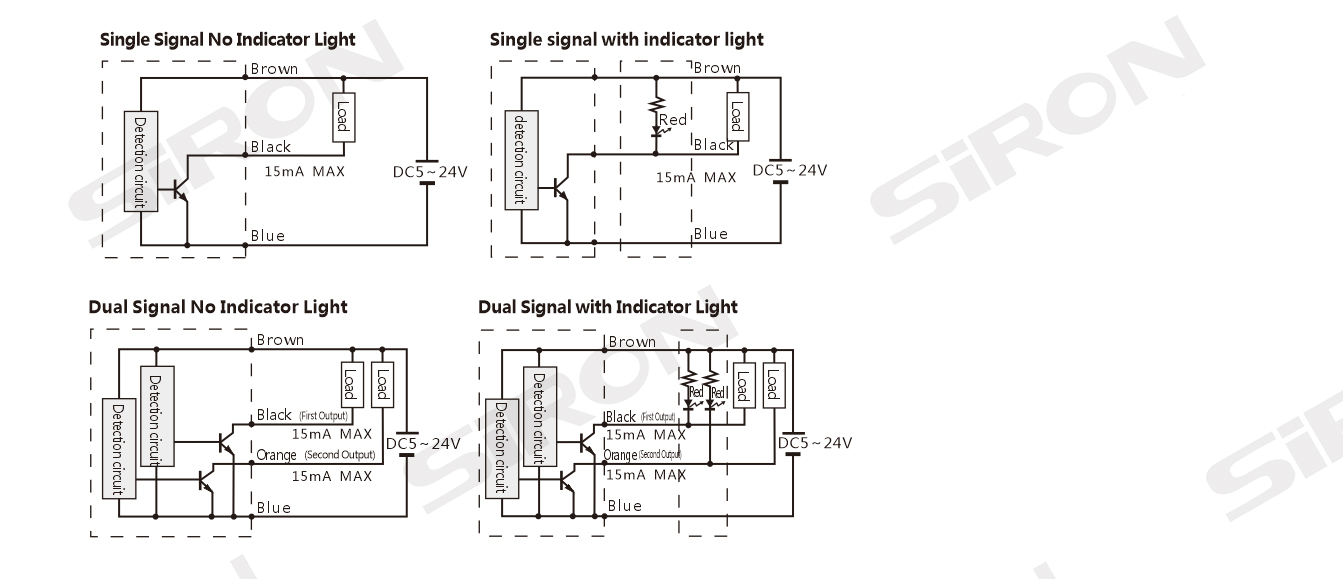

Wiring diagram
