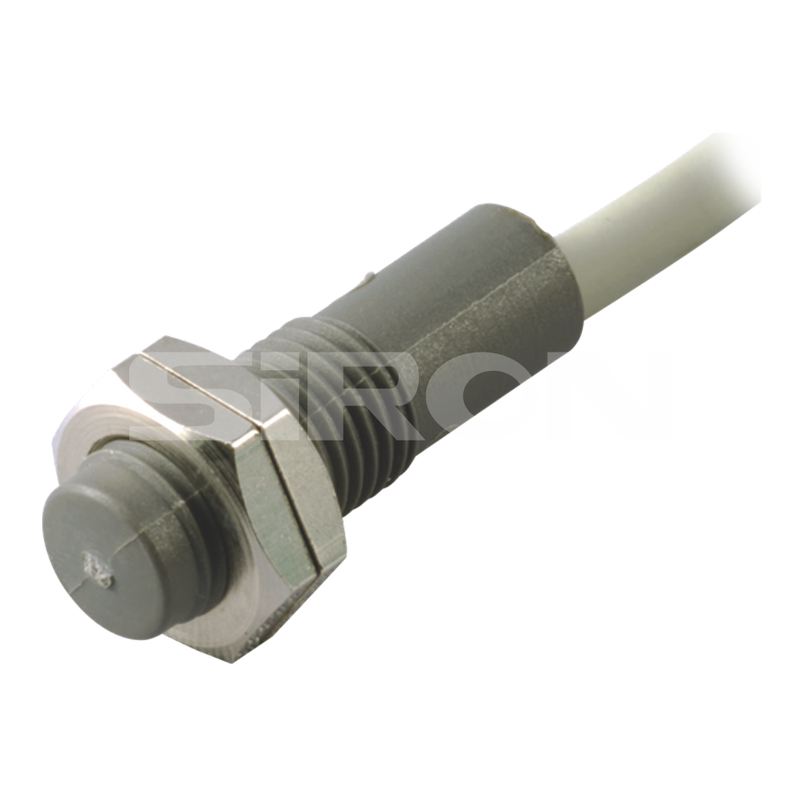

SiRON K072-10 Series Magnetic Proximity Sensor

Name: SiRON K072-10 Series Magnetic Proximity Sensor
Brand: SiRON
Rating: 5.0 (78 reviews)

Features:

* High sensitivity, can detect S pole and N pole at the same time; Environment-resistant, high-sensitivity magnetic proximity sensor;

* Identification sensor used to detect moving in or out (S N is for moving in, N S is for moving out, etc.).

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K072-10 Series
Brand:
SiRON
Code:
9031809090

Magnetic Sensor Magnetic Proximity Sensor high sensitivity 3-wire type S pole IP67

Product Description

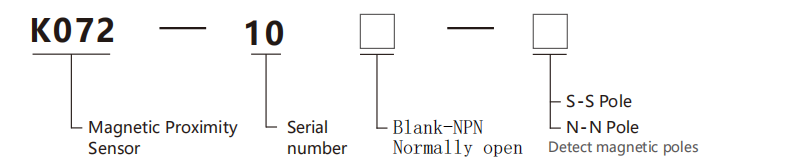

About selection

Selection example：

K072-10-S indicates K072 series, serial number 10, NPN normally open, and the detection magnetic pole is S pole;
K072-10-N indicates K072 series, serial number 10, NPN normally open, and the detection magnetic pole is N pole.

Specifications

Name	Magnetic Proximity Sensor
Model	K072-10-S	K072-10-N
Detection surface	Head Detection
Magnetic pole detection	S Pole	N Pole
Output method	NPN Normally Open (ON when Detected)*
Appearance
Output currentcurrent	10mA MAX
Current consumption	8mA MAX
Voltage	DC5～24V
Magnetic sensitivity	2.5～3.5mT
Magnetic detection direction	Forward
Response time	5μs
Repeatability	AC1000V(1 minute, between the charging unit as a whole and the casing)
Working frequency	DC250V(above 20MΩ, between the charging unit as a whole and the casing)
Working temperature	- 20℃~+85℃(No condensing)
Working environment humidity	20～95%RH
Material	Shell: Glass fiber reinforced resin (gray)
Install	M7 nut, tightening torque 0.3N.m(Installation hole processing size: Φ7+85)(It is recommended to use adhesives, etc. for anti-loosening treatment)
Protection dass	IP67
Cable	The line is 1 meter long. S Pole: Gray; N-pole: Black
