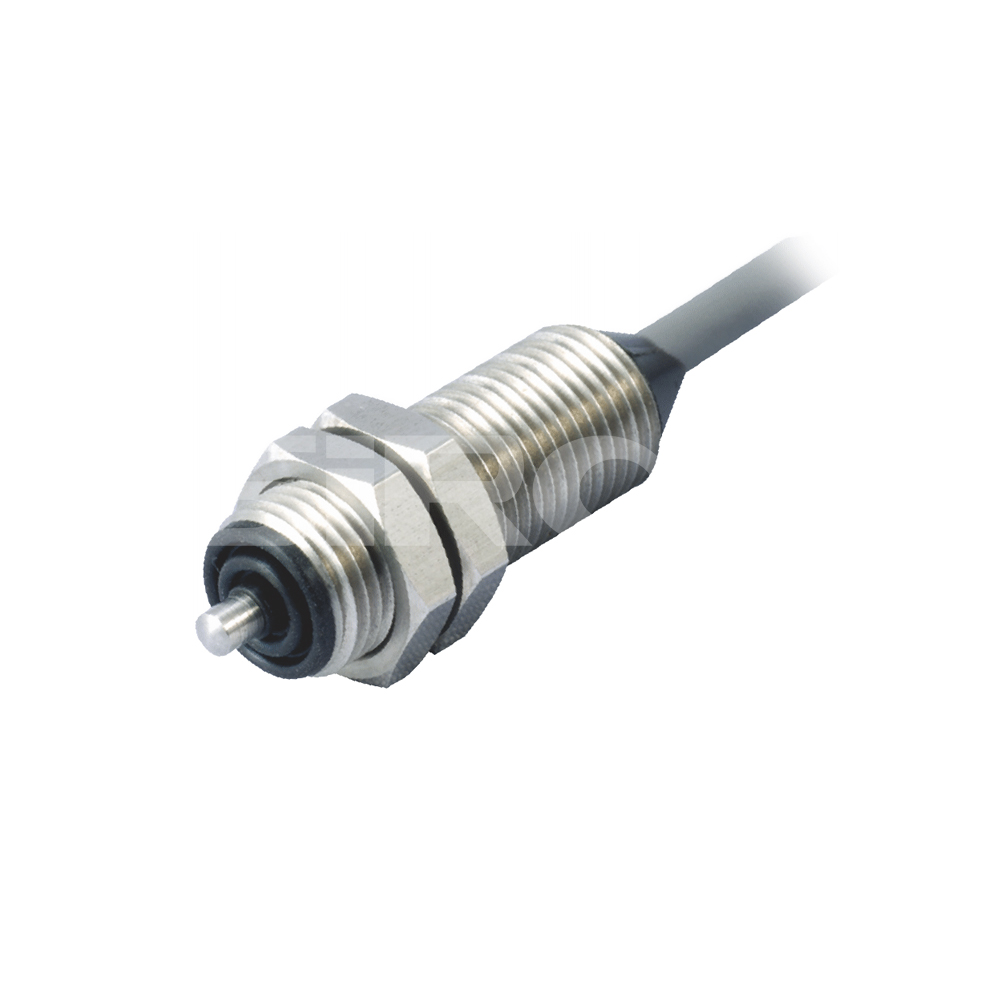

SiRON K071-1 Series Precision Contact Sensor

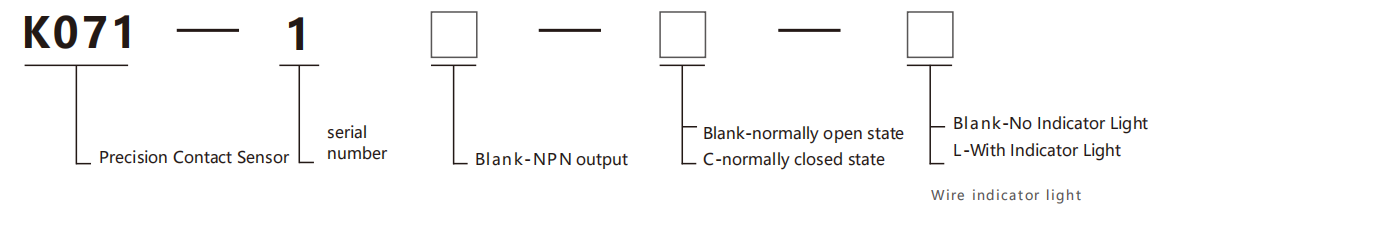

About selection

Selection example：K071-1 indicates the K071 series, serial number 1, with NPN normally open,

                                       cable without indicator light；

                                       K071-1-C-L indicates the K071 series, serial number 1, with NPN normally closed,

                                       cable With indicator light.

Specifications

Name	Precision Contact Sensor
Model	K071-1	K071-1-C	K071-1-L	K071-1-C-L
Output method	NPN Normally Open (ON when approaching)	NPN Normally Closed (OFF when approaching)	NPN Normally Open (ON when approaching)	NPN Normally Closed (OFF when approaching)
Indicator light	No Indicator Light		With Indicator Light (approx. 100mm from the distance sensor body)
Appearance
Output curentcurrent	15mA MAX
Consumption	8mA MAX
Voltage	DC5～24V
Journey	1.5mm
Operating force	0.4N((Do not apply a force of more than 30N to the operating lever)
Working point posifion[PT]	0.2～0.5mm
Hysteresis[MD]	Below 0.1mm
Repeatability	±0.001mm
Working frequency	Less than 60 times per minute
Withstand vltage	AC 1000V (1 minute, between the entire charging part and the housing)
Insulation resistance	DC 250V (20 MΩ min., between the entire charging part and the housing)
Working temperature	- 20℃~+85℃(No Condensation)
Working environment humidity	20～95%RH
Matenal	Housing, nut, operating rod: SUS303
install	M8 Nut, Tightening Torque: ≤ 5 N・m (Mounting Hole Machining Dimension: Φ8)
Protection class	IP67
Cable	Wire length 1M;K071- 1:Grey ；K071- 1-C:Black

Example

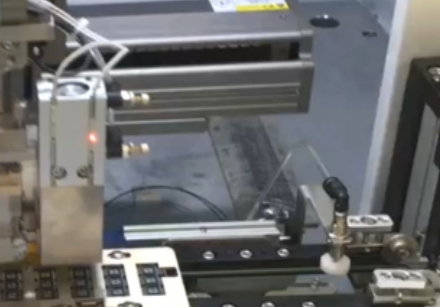

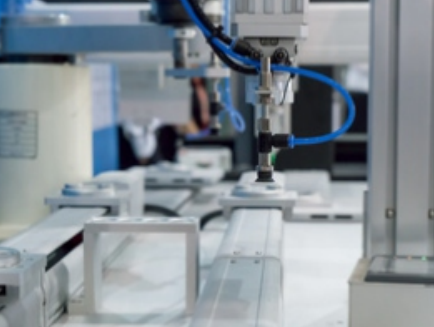

Detection of the origin positioning of the workbench                    Detection of the origin positioning of the workbench

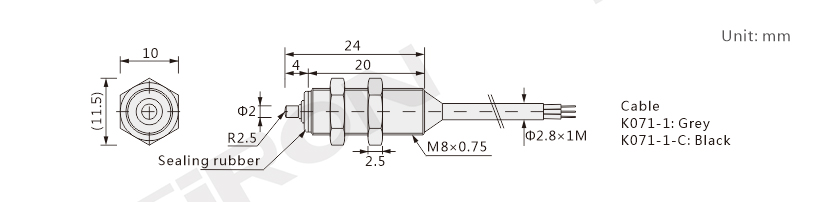

Dimension

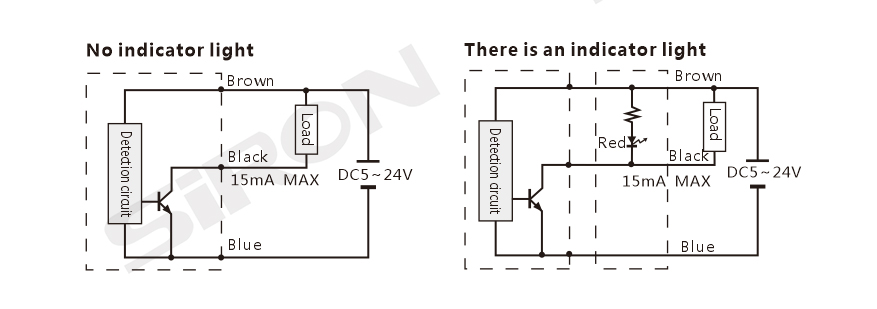

Wiring diagram
