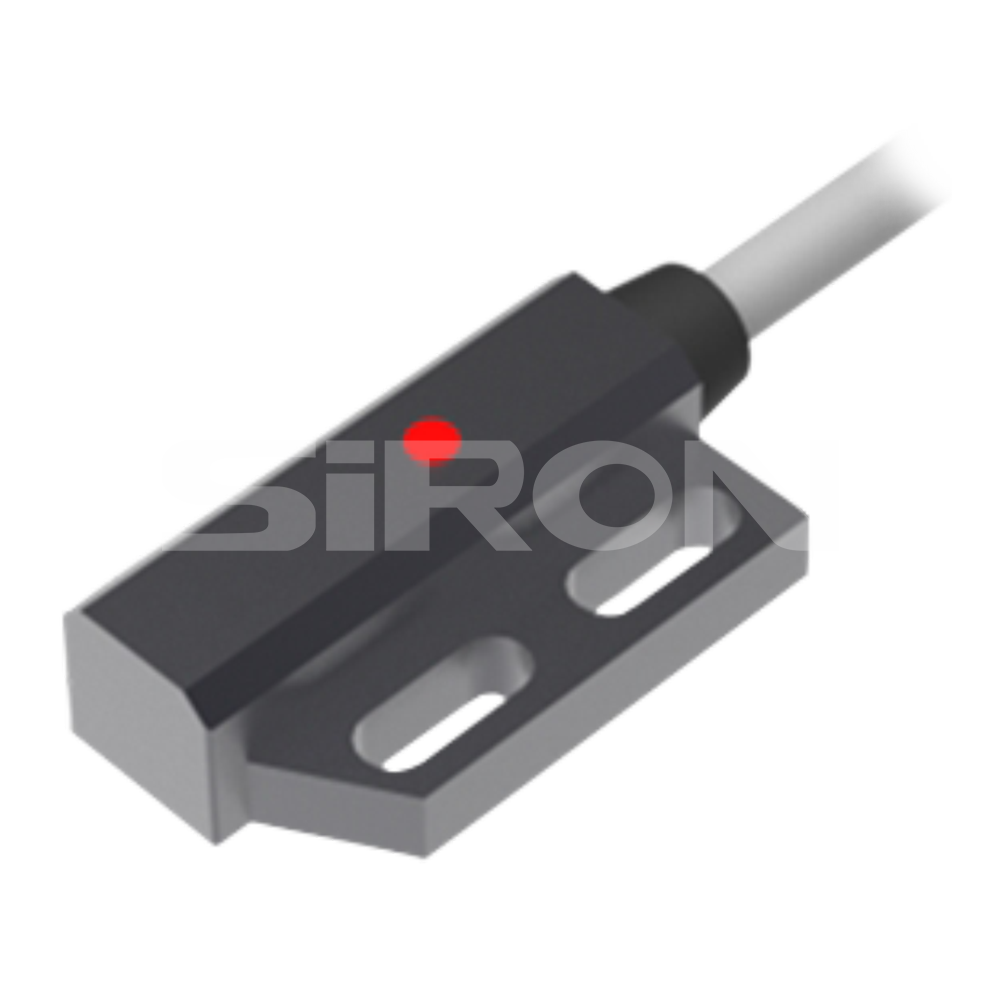

SiRON K072-8 Series Magnetic Proximity Sensor

Name: SiRON K072-8 Series Magnetic Proximity Sensor
Brand: SiRON
Rating: 5.0 (19 reviews)

Features:

* High sensitivity, can detect S pole and N pole at the same time; Environment-resistant, high-sensitivity magnetic proximity sensor;

* Identification sensor used to detect moving in or out (S N is for moving in, N S is for moving out, etc.).

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K072-8 Series
Brand:
SiRON
Code:
9031809090

Magnetic Sensor Magnetic Proximity Sensor high sensitivity S pole 3-wire type IP67

Product Description

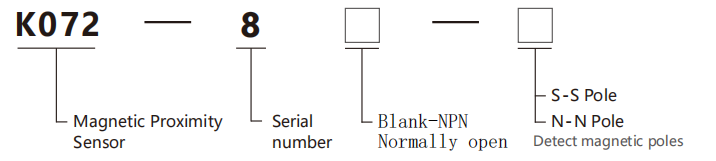

About selection

Selection example：

K072-8-S indicates K072 series, serial number 8, NPN normally open, and the detection magnetic pole is S pole;
K072-8-N indicates K072 series, serial number 8, NPN normally open, and the detection magnetic pole is N pole.

Specifications

Name	Magnetic Proximity Sensor
Model	K072-8-S	K072-8-N
Detection surface	Head detection
Magnetic pole detection	S Pole	N Pole
Output method	NPN Normally Open (ON when Detected)*

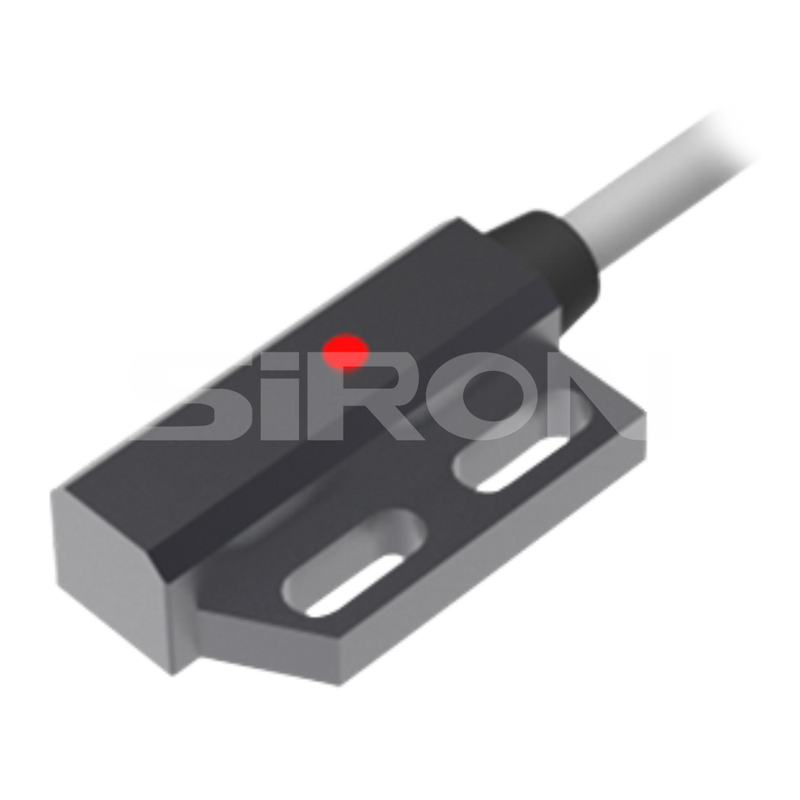

Appearance
Output currentcurrent	15mA MAX
Consumption	8mA MAX
Voltage	DC5～24V
Magnetic sensitivity	0.9±0.2mT
Magnetic detection direction	Forward
Response time	5μs
Repeatability	AC1000V(1 minute, between the charging unit as a whole and the casing)
Working frequency	DC250V(above 20MΩ, between the charging unit as a whole and the casing)
Working temperature	- 20℃~+85℃(No condensing)
Working environment humidity	20～95%RH
Material	Shell: Glass fiber reinforced resin (black)
Install	M3 Nut, tightening torque 0 . 3N .m
Indicator light	Red
Protecion class	IP67
Cable	Cable length 1M;S pole: Grey; N pole: Black
