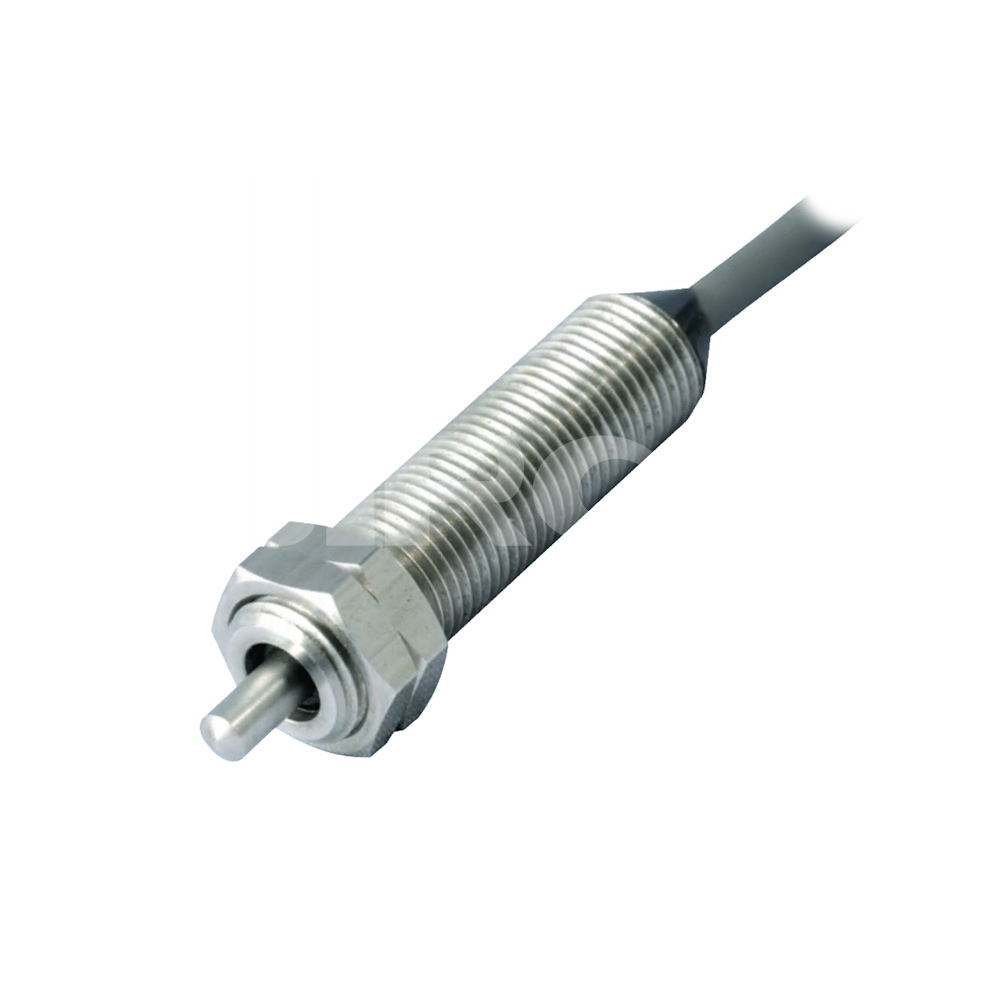

SiRON K071-2 Series Precision Contact Sensor

Name: SiRON K071-2 Series Precision Contact Sensor
Brand: SiRON
Rating: 5.0 (7 reviews)

Features:

* High repeat positioning accuracy;
* The service life is more than 50 million times;
* Adopt non-contact detection circuit, work stably;
* Very small operating force specifications can also trigger signals;
* Adopting the structure in which the operating lever is isolated from the detection circuit, it is suitable
for harsh environments with complex working conditions.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K071-2 Series
Brand:
SiRON
Code:
9031809090

Precision Contact Sensor Three-wire type High repeat positioning accuracy The service life is more than 50 million times work stably

Product Description

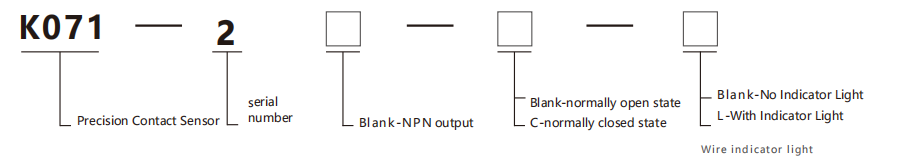

About selection

Selection example：K071-2 indicates the K071 series, serial number 2, with NPN normally open,

cable without indicator light；

K071-2-C-L indicates the K071 series, serial number 2, with NPN normally closed,

cable With indicator light.

Specifications

Name	Precision Contact Sensor
Model	K071-2	K071-2-C	K071-2-L	K071-2-C-L

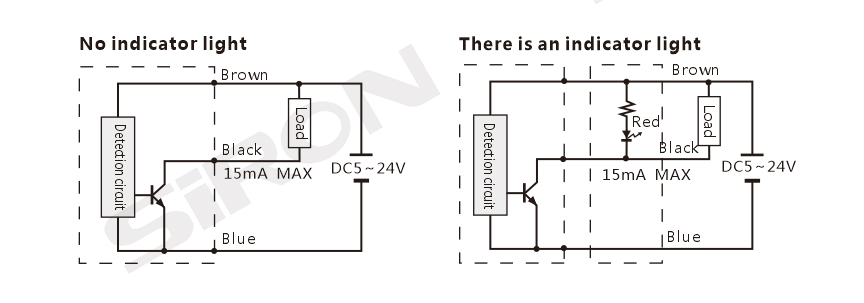

Output method	NPN Normally Open (ON when approaching)	NPN Normally Closed (OFF when approaching)	NPN Normally Open (ON when approaching)	NPN Normally Closed (OFF when approaching)
Indicator light	No Indicator Light		With Indicator Light (approx. 100mm from the distance sensor body)

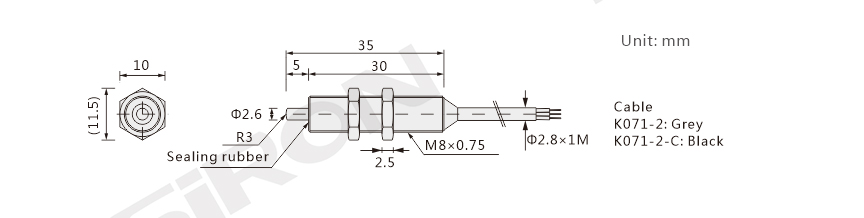

Appearance
Output curentcurrent	15mA MAX
Consumption	8mA MAX
Voltage	DC5～24V
Journey	3mm
Operating force	0.7N((Do not apply a force of more than 30N to the operating lever)
Working point posifion[PT]	0.2～0.5mm
Hysteresis[MD]	Below 0.1mm
Repeatability	±0.001mm
Working frequency	Less than 60 times per minute
Withstand vltage	AC 1000V (1 minute, between the entire charging part and the housing)
Insulation resistance	DC 250V (20 MΩ min., between the entire charging part and the housing)
Working temperature	- 20℃~+85℃(No Condensation)
Working environment humidity	20～95%RH
Matenal	Housing, nut, operating rod: SUS303
install	M8 Nut, Tightening Torque: ≤ 5 N・m
Protection class	IP67
Cable	Wire length 1M;K071- 2:Grey ；K071- 2-C:Black
