SiRON K072-2 Series Magnetic Proximity Sensor

Name: SiRON K072-2 Series Magnetic Proximity Sensor
Brand: SiRON
Rating: 5.0 (85 reviews)

Features:

* Small size, high sensitivity and large detection distance；Strong anti-electromagnetic interference, strong reliability;

* Sensors that perform ON and OFF operations according to changes in magnetic field strength.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K072-2 Series
Brand:
SiRON
Code:
9031809090

Magnetic Sensor Magnetic Proximity Sensor high sensitivity S pole Small size 3-wire type IP65

Product Description

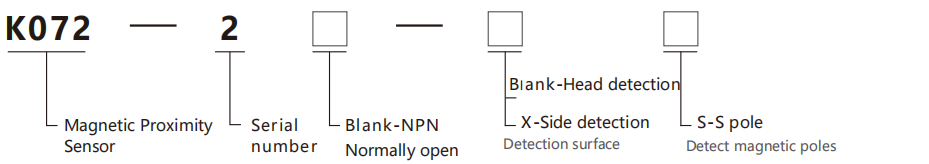

About selection

Selection example：

K072-2-S indicates the K072 series, with a serial number of 2, NPN normally open, the detection surface is head detection, and the detection magnetic pole is the S pole;

K072-2-XS indicates the K072 series, with a serial number of 2, NPN normally open, the detection surface is side detection, and the detection magnetic pole is the S pole.

Specifications

Name	Magnetic Proximity Sensor
Model	K072-2-S	K072-2-XS
Detection suface/Magnetic pole detection	Head detection/S pole	Side detection/S pole
Output method	NPN Normally Open (ON when Detected)

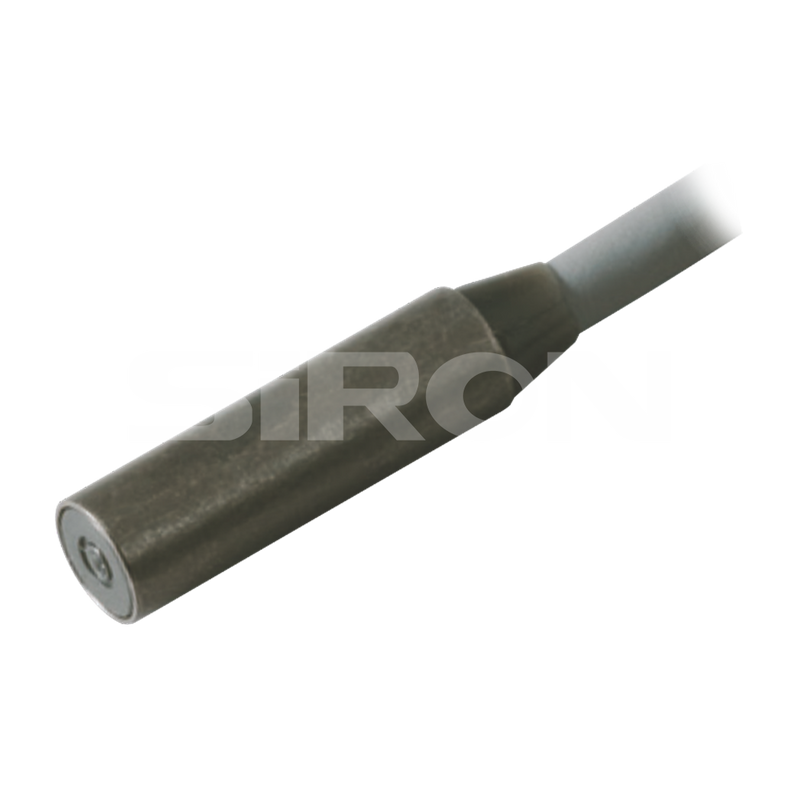

Appearance
Output currentcurrent	10mA MAX
Consumption	8mA MAX
Voltage	DC5～24V
Magnetic sensitivity	5~7mT
Magnetic detection direction	Forward	Side
Response time	5μs
Repeatability	AC1000V(1 minute, between the charging unit as a whole and the casing)
Working frequency	DC250V(above 20MΩ, between the charging unit as a whole and the casing)
Workingtemperature	- 20℃~+85℃(No condensing)
Workingenvironment humidity	20～95%RH
Material	Shell: SUS tube
Install	M3 fixed screws, tightening torque less than 0.2 N.m
Protection class	IP65
Cable	Cable length 1M;Colour: Grey
