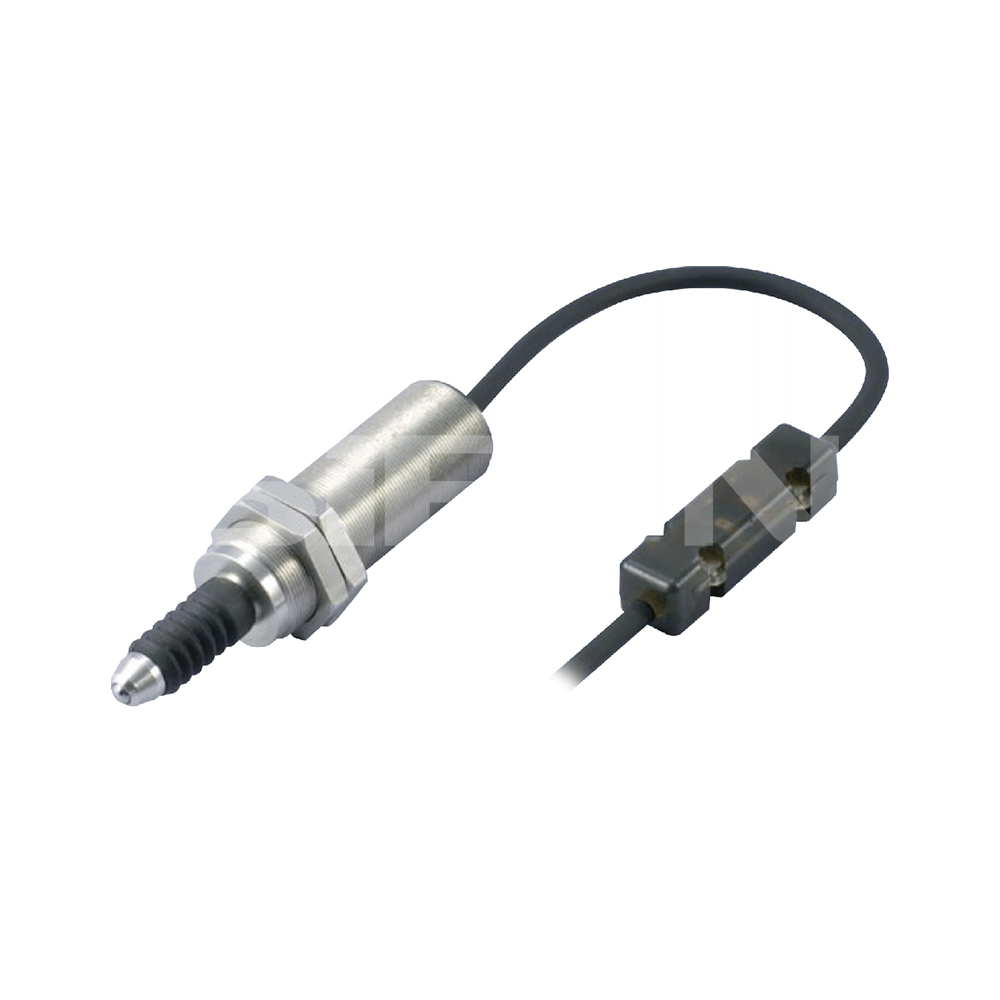

SiRON K071-8 Series Precision Contact Sensor

About selection

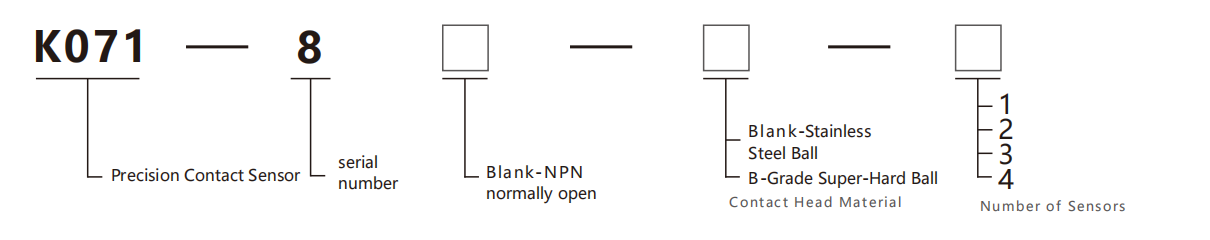

Selection Example: K071-8-1 indicates K071 Series, 8 serial number, NPN normally open, contact head material is                                              stainless steel ball, and number of sensors is 1.

                                    K071-8-B-2 indicates K071 Series, 8 serial number, NPN normally open, contact head material is                                          super-hard ball, and number of sensors is 2.

Note: 1. Do not apply a force of 15N to the joystick;

             2. Ensure that the angle at which the detected object comes into contact with the joystick does not exceed 5°.

            3.Do not rotate the contact head;

            4、Do not over-rotate the adjustment screw on the rear of the housing, as it is prone to damage

Specifications

Name	Precision Contact Sensor
Model	K071-8
Output method	NPN is always open (ON when approaching)
Cable indicator	There is an indicator light (about 100mm away from the sensor body)
Appearance
Output currentcurrent	15mA      MAX	Withstand voltage	AC1000V(1 minute, between the charging unit as a whole and the casing)
Consumption	8mA      MAX	Insulation resistance	DC250V(above 20MΩ, between the charging unit as a whole and the casing)
Voltage	DC5～24V	Working temperature	-20℃~+85℃(No condensing)
Number of sensors	1 to 4	Working environment humidity	20～95%RH
Journey	6mm	Material	Housing/Nut: SUS303; Rubber hose material: Nitrile rubber
Operating force	0.8～1.2N	Install	M14 nut, with a tightening torque of less than 18 N.m (Installation hole diameter processing size: φ14+8.5)
Hysteresis [MD]	Below 0.08mm
Repeatability	±0.01mm	Protection class	IP67
Working frequency	Less than 60 times per minute	Cable	wire length 1M

Example

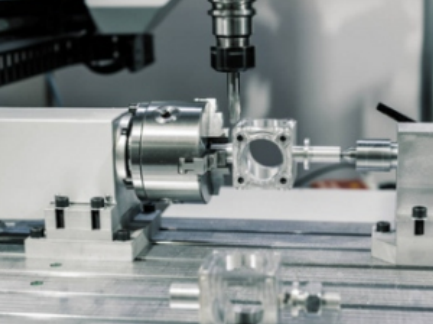

             The zero-point positioning detection of                                    The zero-point positioning detection of

    machine tools and equipment                                                     machine tools and equipment

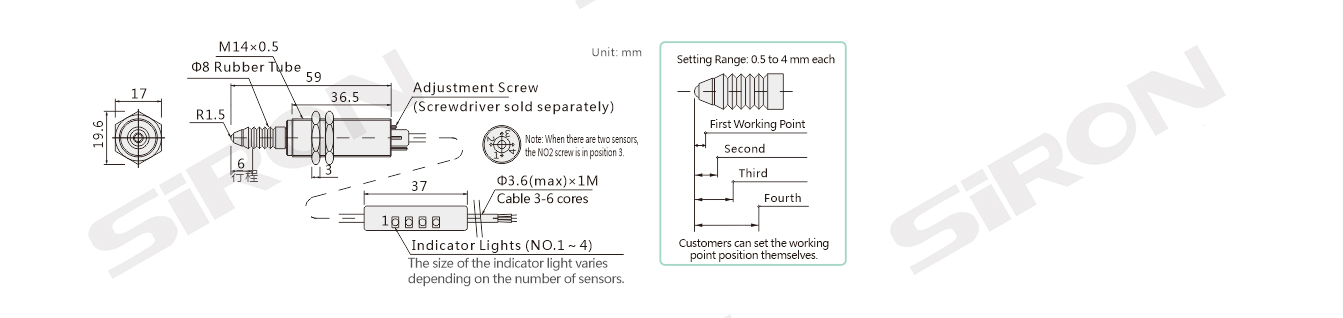

Dimension

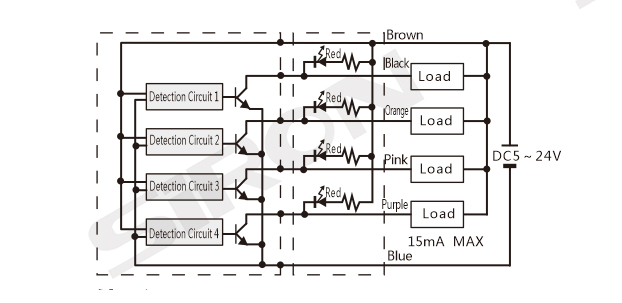

Wiring diagram
