SiRON K072-5 Series Magnetic Proximity Sensor

Name: SiRON K072-5 Series Magnetic Proximity Sensor
Brand: SiRON
Rating: 5.0 (68 reviews)

Features:

* High sensitivity, can detect S pole and N pole at the same time;Environment-resistant, high-sensitivity magnetic proximity sensor;

* Identification sensor used to detect moving in or out (S N is for moving in, N S is for moving out, etc.).

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

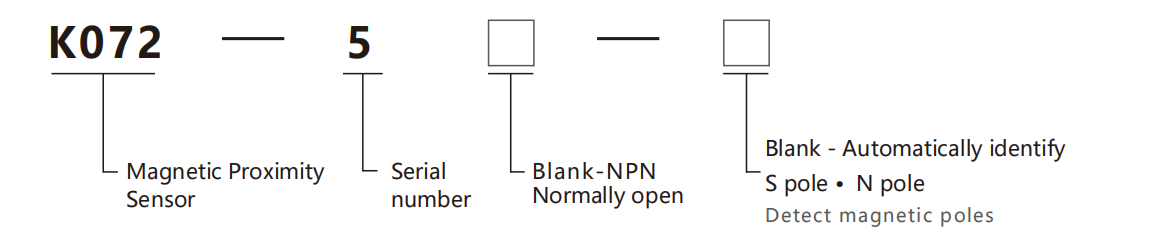

About selection

Selection example：

K072-5 indicates the K072 series, serial number 5, NPN normally open, with automatic identification and detection of

S pole and N pole

Specifications

Name	Magnetic Proximity Sensor
Model	K072-5
Detection surface	Head detection
Magnetic pole detection	S pole ·N Pole (Automatic recognition)
Output method	NPN Normally Open (ON when Detected)*
Appearance
Output currentcurrent	30mA MAX*1
Consumption	10mA
Voltage	DC12～24V
Magnetic sensitivity	S Pole：0 .4±0 .05mT;N Pole：0 .3±0 .05mT
Magnetic detection direction	Forward
Responsetime	50μs
Repeatability	AC1000V(1 minute, between the charging unit as a whole and the casing)
Working frequency	DC250V(above 20MΩ, between the charging unit as a whole and the casing)
Working temperature	- 20℃~+85℃(No condensing)
Working environment humidity	20～95%RH
Material	Shell: SUS303
Install7 Indicator light	M9 nut, tightening torque 5 N.m (installation hole diameter processing size: φ9+8 ·5)/S pole: red; N-pole: Green
Protection class/Cable	I P 6 7 ; Cable length 1 M ; Black
